Inverter Specifications
| SKU | VIC-MultiPlus-II-12/3000/120-50-2x120V-UL |
|---|---|
| Operating type | Off-grid |
| Inverter function | Inverter/charger |
| Continuous AC output power (W) | 2400.0 |
| AC output rating conditions | Inverter mode supplies 120 V to both legs, not 240 V split phase. 120/240 V is passed through only from a suitable AC source. L1 transfer <18 ms; L2 about 40 ms. |
| Continuous apparent power (VA) | 3000.0 |
| AC output voltage (V) | 120 |
| AC output frequency (Hz) | 60 |
Show all specifications (45)Show fewer specifications
| AC phase configuration | Single-phase |
|---|---|
| Output waveform | Pure sine wave |
| Battery support | Required |
| Nominal battery voltage (V) | 12 |
| Min battery voltage (V) | 9.5 |
| Max battery voltage (V) | 17.0 |
| Outage backup capability | Yes |
| Backup/EPS output power (W) | 2400.0 |
| Backup output voltage (V) | 120 |
| Surge output power (W) | 5500.0 |
| Max AC battery charging current (A) | 120.0 |
| Generator input supported | Yes |
| AC input voltage (V) | 120, 120/240 |
| AC input frequency (Hz) | 45–65 |
| AC input phase configuration | Single-phase, Split-phase |
| Max AC input current (A) | 50.0 |
| AC pass-through current (A) | 50.0 |
| Peak efficiency (%) | 93.0 |
| Idle/no-load consumption (W) | 15.0 |
| Standby consumption (W) | 4.0 |
| Efficiency and consumption conditions | Standby consumption is Search mode. |
| Parallel operation supported | Yes |
| Max parallel units | 6 |
| Communication interfaces | VE.Bus |
| Monitoring app or portal | Victron VRM |
| Remote control functions | Remote monitoring, Remote settings, Remote on/off |
| Required monitoring accessories | Cerbo GX or another compatible GX device and internet connection |
| Monitoring subscription requirements | VRM portal is free of charge. |
| Length (mm) | 148.0 |
| Width (mm) | 275.0 |
| Height (mm) | 578.0 |
| Weight (kg) | 22.0 |
| Enclosure rating | IP22 |
| Min operating temperature (°C) | -40.0 |
| Max operating temperature (°C) | 65.0 |
| Temperature and altitude derating | 2200 W at 40°C; 1700 W at 65°C. |
| Cooling method | Fan-cooled |
Description
SKU: VIC-MultiPlus-II-12/3000/120-50-2x120V-UL
Mfg SKU: PMP122305102

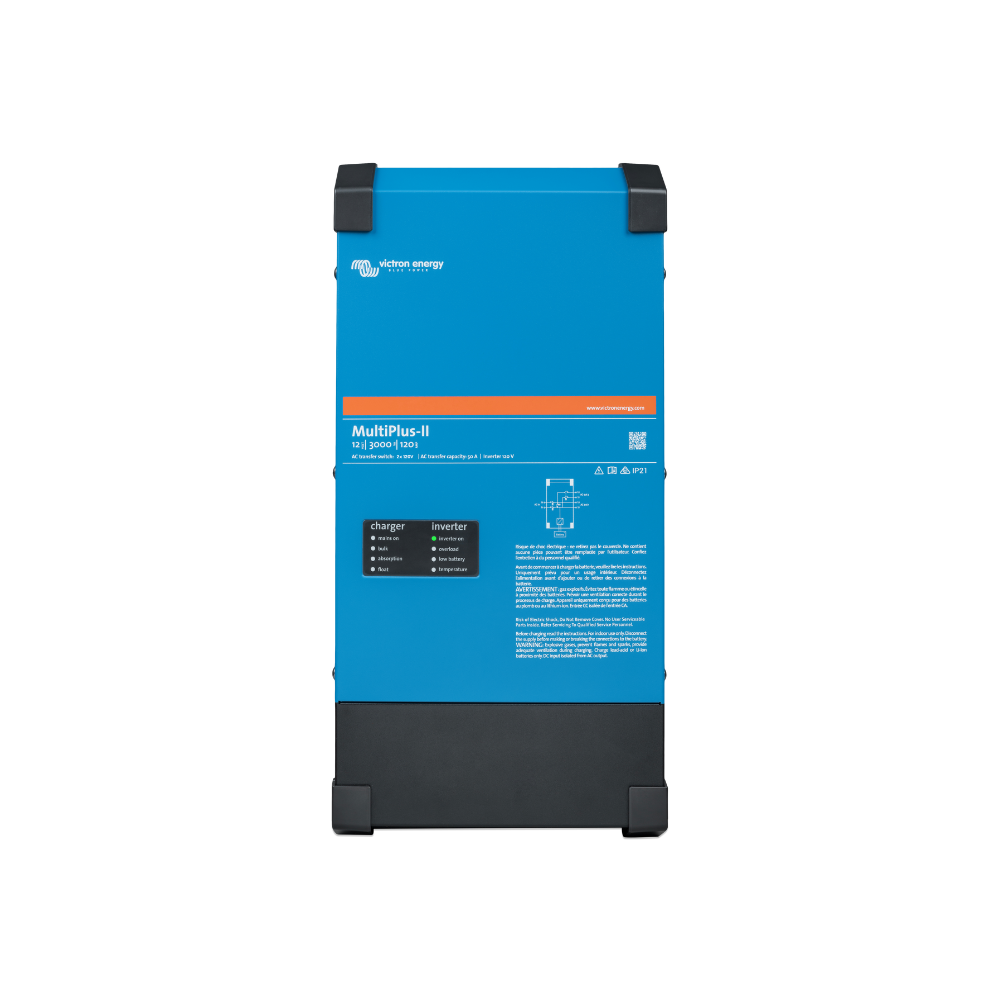

The MultiPlus-II 2 x120V is the perfect one-box mobile solution for standard North American 50A 120/240VAC split-phase applications. Whether it is supplied from shore power or a generator, the MultiPlus-II 2x120V can accept and passthrough both lines of a 120/240V supply, with the capability to utilize the full 50A for charging and AC loads. When connecting to a single phase 120V supply, the L1 input of the MultiPlus-II 2x120V will accept incoming power for charging and passthrough, while combining the L1 and L2 outputs for single-phase 120V on each line.
The MultiPlus switches to inverter operation when no AC source is available. The inverter output is also 120V single phase. In inverter mode, the MultiPlus-II 2x120V internally connects both lines L1 and L2 together to provide 120VAC to loads on either output. Therefore, in all connection circumstances, both sides of a distribution panel will be supplied with 120V. However, 240VAC is only available when the MultiPlus is supplied by a split phase 120/240VAC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery.
The MultiPlus-II 2x 120V has all of the expected features of our versatile inverter/charger range, including PowerControl, PowerAssist, Input Current Limit, two AC outputs, as well as parallel and 3ph configuration for larger capacity VE.Bus systems. Suitable for LiFePO4 batteries and a variety of other battery technologies
