Victron Energy Blue Smart IP22 Charger 12 V / 30 A (120 VAC)
CSA-Certified | Bluetooth Smart | 94 % Efficiency

Power your Canadian off-grid, marine, and RV solar systems with the Victron Energy Blue Smart IP22 Charger. Built to withstand Canadian climates and certified to CSA C22.2 standards, this 12 V / 30 A battery charger delivers ultra-efficient, adaptive charging for lead-acid and Li-ion batteries—keeping your energy storage healthy and ready.


Key Features & Benefits

  • Ultra-High Efficiency (94 %)
    Generates up to four times less heat than standard chargers and draws only 0.5 W in no-load mode—perfect for energy-conscious Canadian homes and cabins.

  • Adaptive 6-Stage Charging Algorithm
    Automatically optimizes charging (Test → Bulk → Absorption → Recondition → Float → Storage) based on use patterns, extending battery life during long Canadian winters.

  • Bluetooth Smart Monitoring & Control
    Easily monitor voltage, current, and charge history—or tweak absorption, float, and recondition settings—via the VictronConnect app on iOS or Android.

  • Storage Mode & Battery Recovery
    Reduces float voltage after 24 hours of inactivity to minimize gassing and sulfation; weekly equalization prevents stratification. Recovers fully discharged batteries, even Li-ion packs with internal disconnects.

  • Night & Low Noise Modes
    Cut output to 50 % for silent operation up to 8 hours—ideal for remote cabins, boathouses, or off-grid workshops.

  • VE.Smart Networking
    Wirelessly synchronize up to ten chargers into one large, redundant charging bank—flexible for expanding solar installations across Canada.

  • Rugged, Compact Design

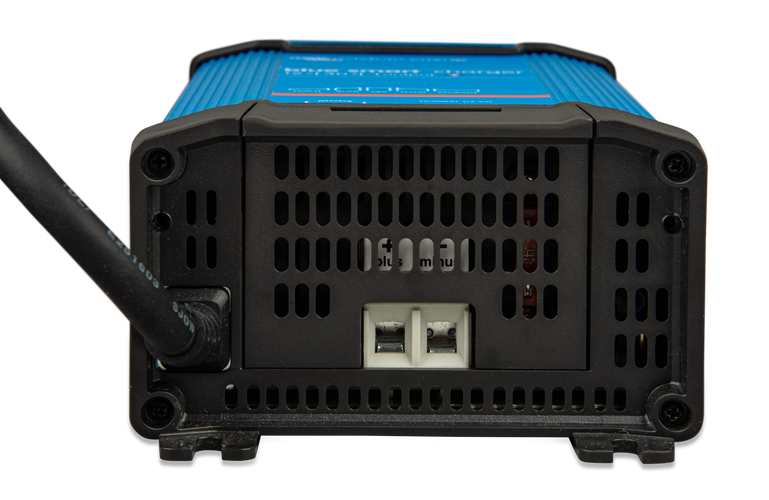

    IP22-rated aluminum enclosure (245 × 108 × 65 mm), 1.3 kg, with screw-terminal battery connections and a 1.8 m power cable—built tough for Canadian indoor environments.


Technical Specifications

Specification Details
Nominal Input Voltage 110–120 VAC, 50–60 Hz
Charge Current (Normal / Night) 30 A / 15 A
Efficiency 94 %
No-Load Power Consumption 0.5 W
Charge Algorithm Adaptive 6-stage
Operating Temperature -20 °C to +50 °C (full output up to 40 °C)
Enclosure Rating IP22
Certifications CSA C22.2, UL 1236, EN 60335, ECE R10-5
Dimensions (H×W×D) 245 × 108 × 65 mm (9.7 × 4.3 × 2.6 in)
Weight 1.3 kg (3 lb)


pdf iconDatasheet
