SKU: BAM030712000R

With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

Other features

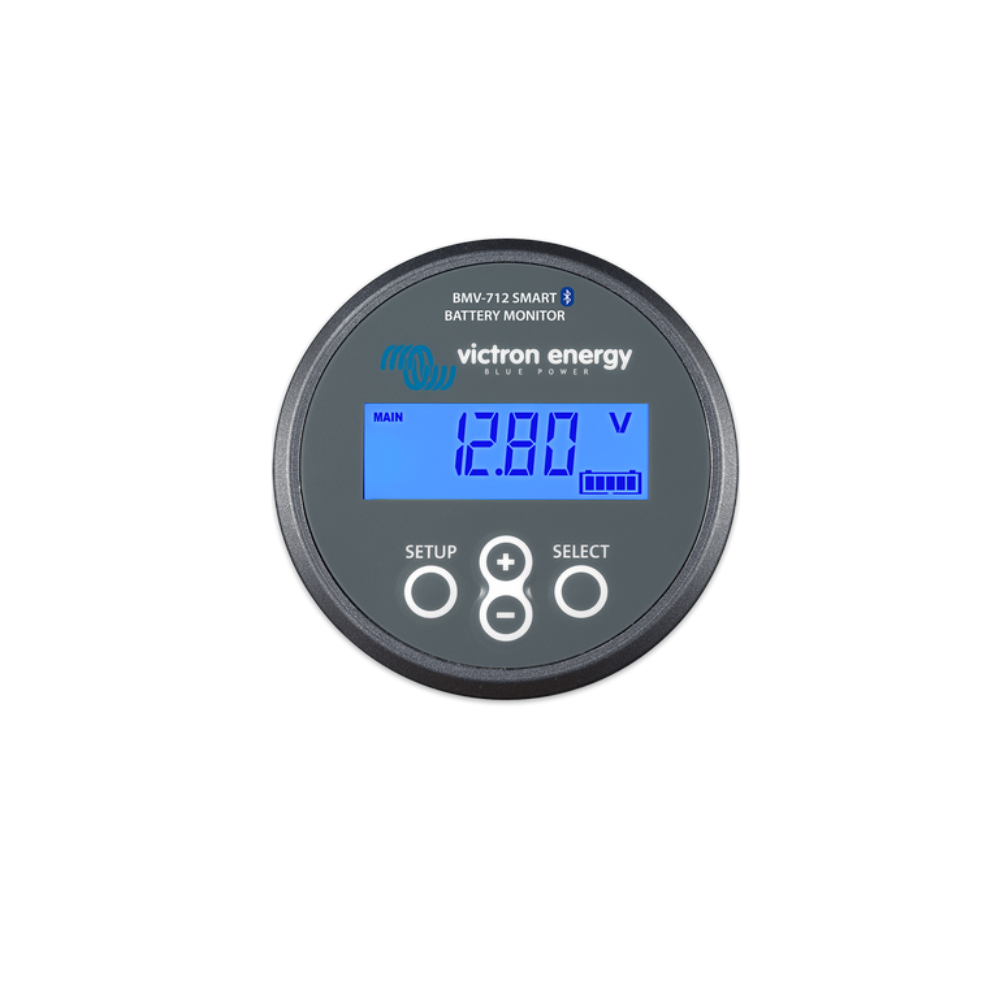

  • Battery voltage, current, power, ampere-hours consumed and state of charge
  • Remaining time at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay, to turn off non critical loads or to run a generator when needed

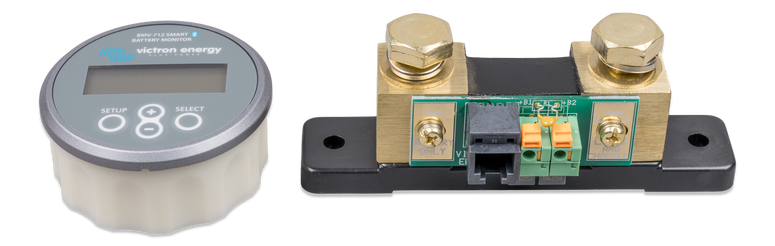

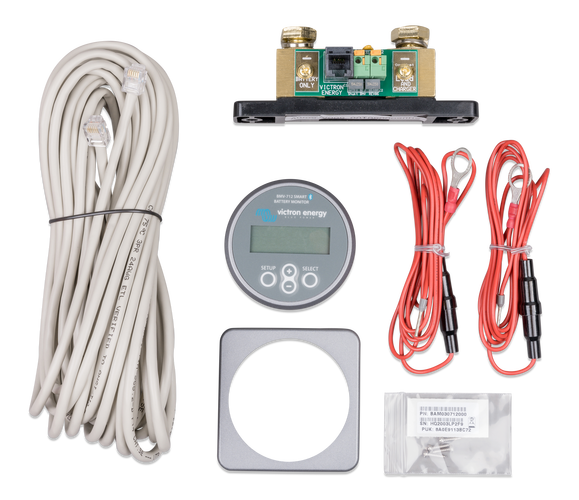

  • 500 Amp quick connect shunt and connection kit
  • Shunt selection capability up to 10,000 Amps
  • VE.Direct communication port
  • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
  • Wide input voltage range: 6.5 – 70 V
  • High current measurement resolution: 10 mA (0.01 A)
  • Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings

 Datasheet



Dimensions ( LxWxH):  2.6 x 2.6 x 1.2"
Weight ;  0.7 lbs
