SKU: SMD-EZ3-RAFTER-S
Mfg. SKU: EZ3-RAFTER-S
Mfg. Old SKU: K50220-001

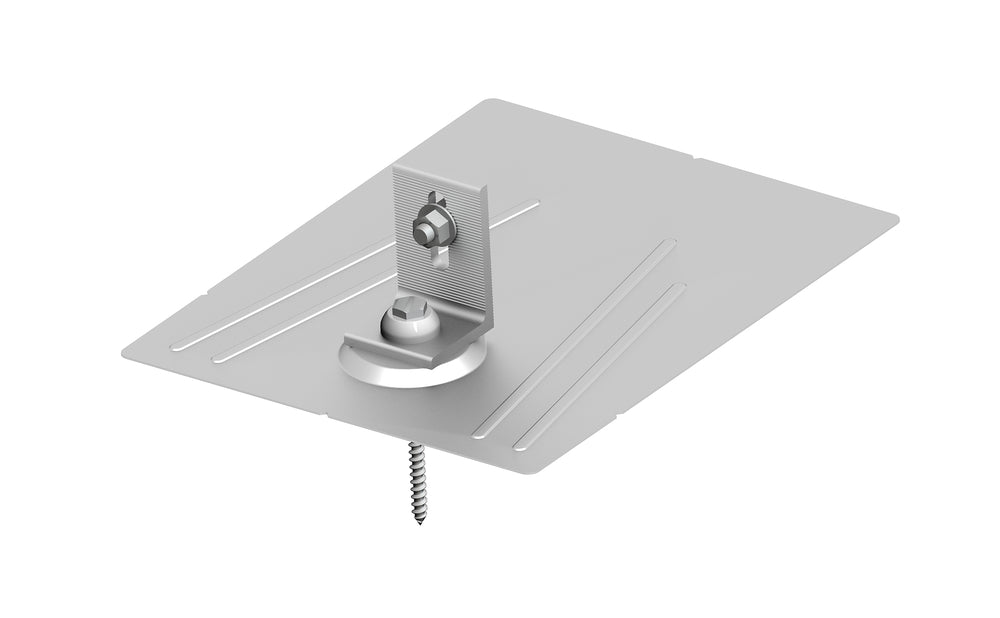

SunModo EZ3™3 Roof Mount Kit
Overview
Engineered for composite shingle roofs—quickly secures solar panels across Canada
Sleek silver anodized finish for a clean, low-profile look on residential and commercial rooftops
High-Velocity Hurricane Zone approved (TAS 100(a) Wind-Driven Rain Test) and IAPMO-certified
Key Features
3-Component, 3-Step Installation
EZ3 flashing with integrated roof shoe
Pre-assembled lag screw with EPDM gasket & washer
Serrated L-Foot for infinite 360° positioning
Raised Teardrop Flashing diverts water away from the roof penetration
Stamped Emboss stiffens the flashing to resist bending under load
Universal Compatibility: works with both 30 mm & 40 mm rails and most module clamp profiles
Technical Specifications
Flashing Dimensions: 9.5″ × 12.0″ × 0.04″
Included Hardware:
1 × EZ3 flashing with roof shoe
1 × Pre-assembled lag screw, EPDM gasket & washer
1 × Serrated L-Foot
All stainless-steel mounting hardware
Roof Type: Composite/asphalt shingle
Finish: Silver anodized aluminum & steel
Why It’s Ideal for Canadian Solar
Speed Up Install Times: 3-step setup cuts labour costs on new and retrofit projects across Ontario, Alberta, B.C. and Québec
Weather-Tight Reliability: Flashing design and EPDM seal withstand rain, snow, freeze/thaw and Canada’s UV exposure
Enhanced Curb Appeal: Silver anodized finish blends seamlessly with light-coloured shingles and modern roof designs
Reduce Callbacks: Engineered for leak-proof performance in B.C. downpours, Alberta sun and Québec winters
