Solar Charge Controller Specifications
| SKU | SD-PWM-12/24V-20A-IP65 |
|---|---|
| Controller technology | PWM |
| Supported battery voltage (V) | 12, 24 |
| Max charging current (A) | 20.0 |
| Max PV open-circuit voltage (V) | 50.0 |
| Supported battery chemistries | LiFePO₄, Other lithium-ion, Gel, AGM, Flooded lead-acid, Other |
| PV voltage-limit conditions | Manual gives 25V maximum PV at 12V and 50V at 24V. Confirm the battery-system setting before connecting the array. |
| Lithium charging presets | Yes |
Show all specifications (19)Show fewer specifications
| Equalization supported | Yes |
|---|---|
| Temperature compensation | Yes |
| External battery-temperature sensor | Optional accessory |
| Built-in display | Yes |

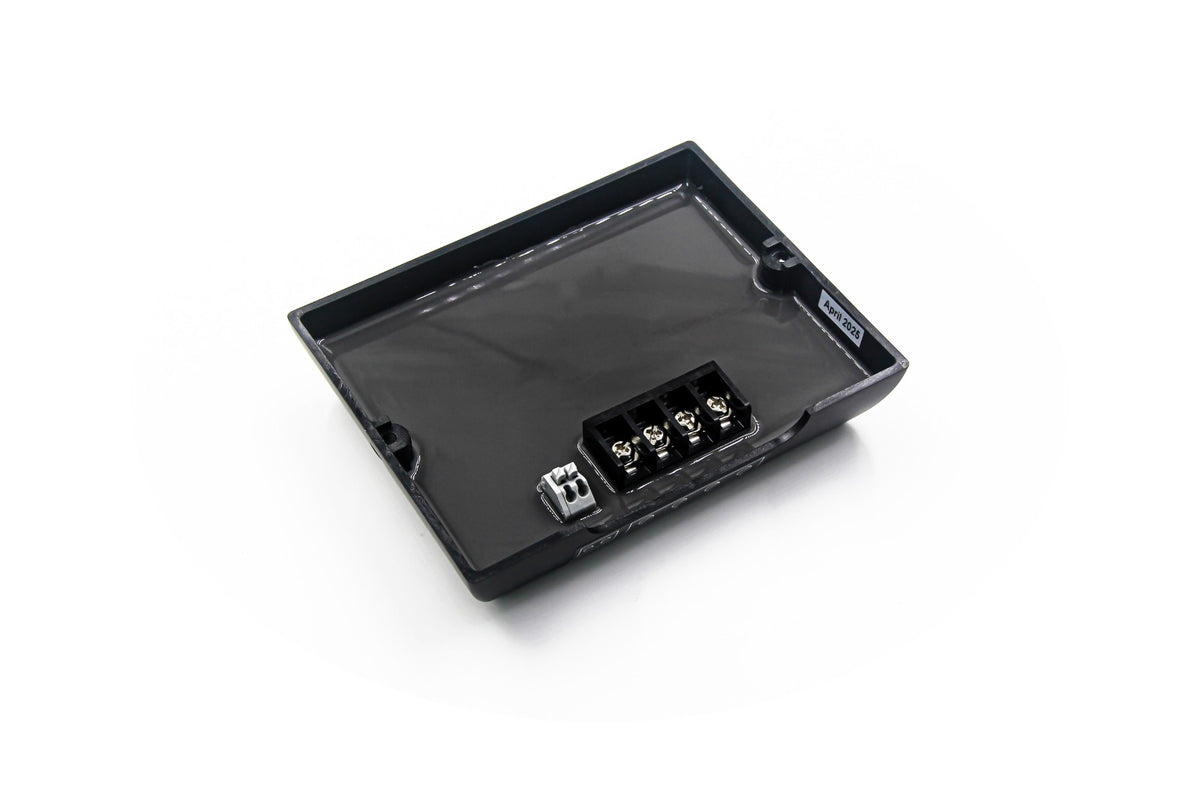

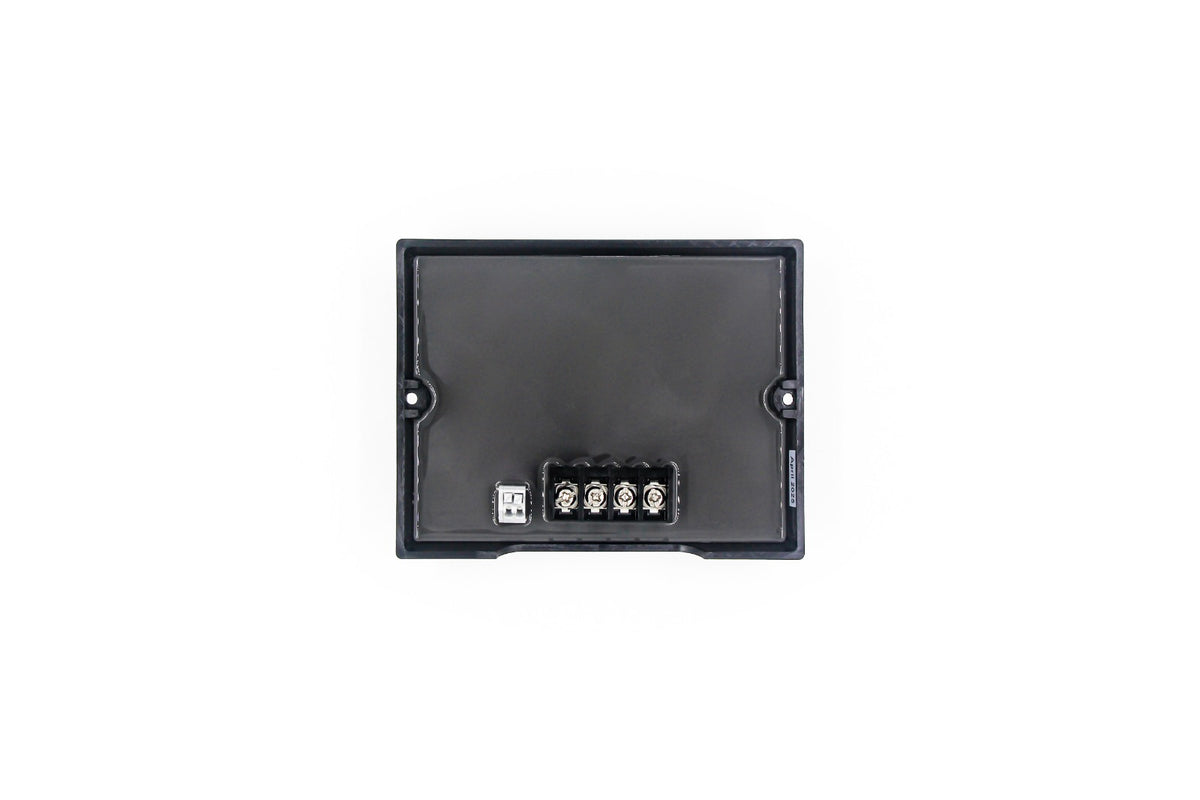

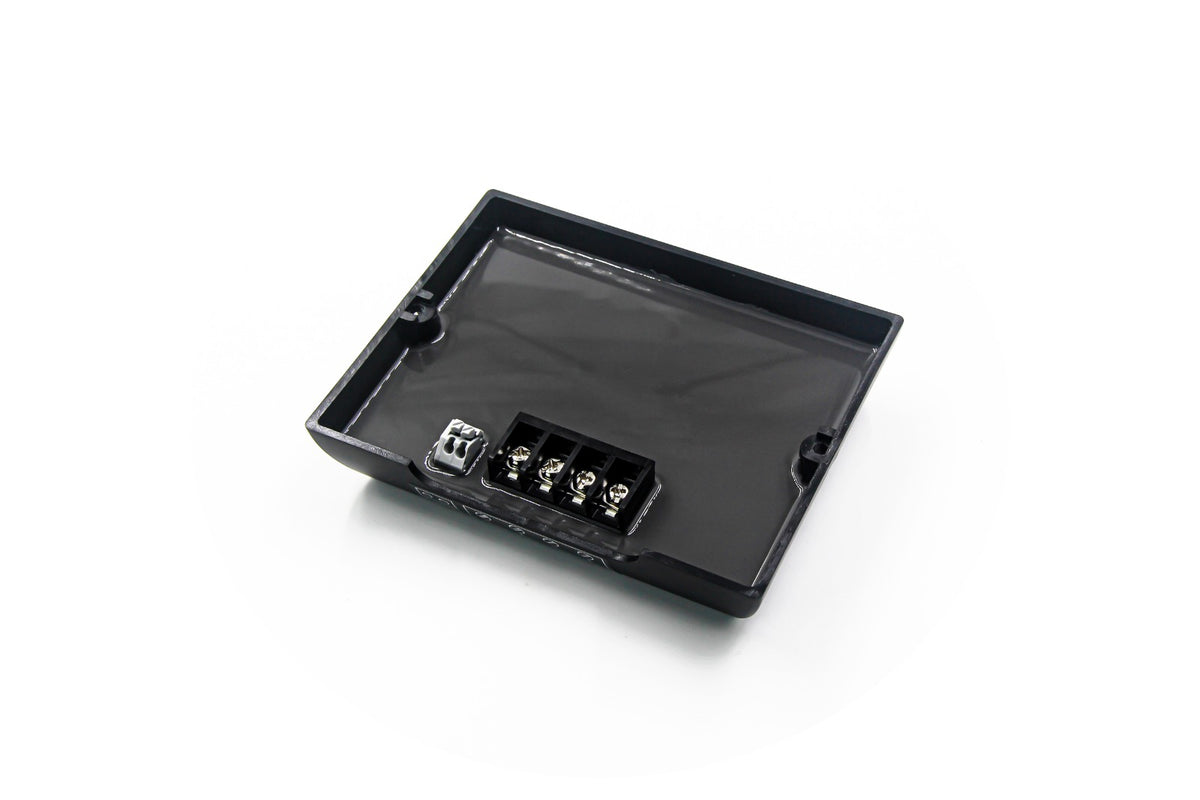

| PV terminal wire capacity | M5; up to #12 AWG stranded / 3 mm² |
| Battery terminal wire capacity | M5; up to #12 AWG stranded / 3 mm² |
| Min operating temperature (°C) | -25.0 |
| Max operating temperature (°C) | 50.0 |
| IP rating | IP65 |
| Weight (kg) | 0.3 |
| Protection features | Reverse polarity, Short circuit, Overtemperature, Overvoltage, Reverse current at night |
Description

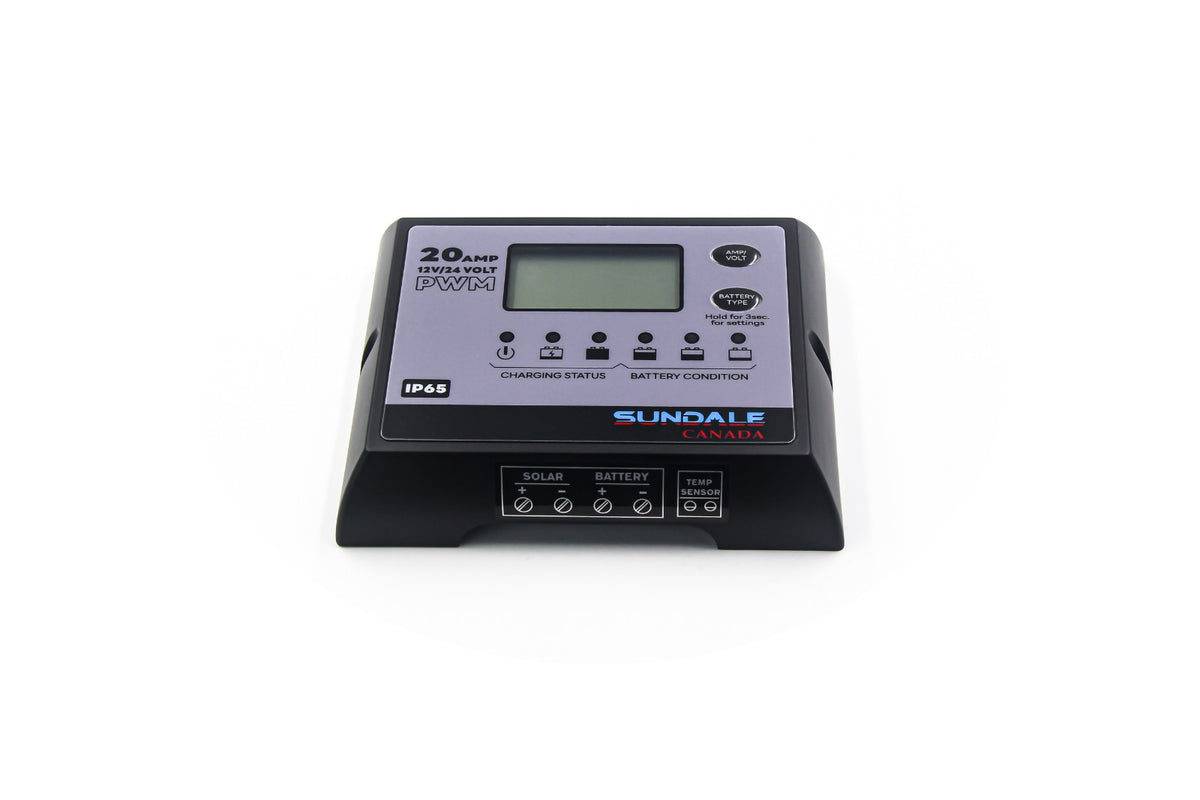

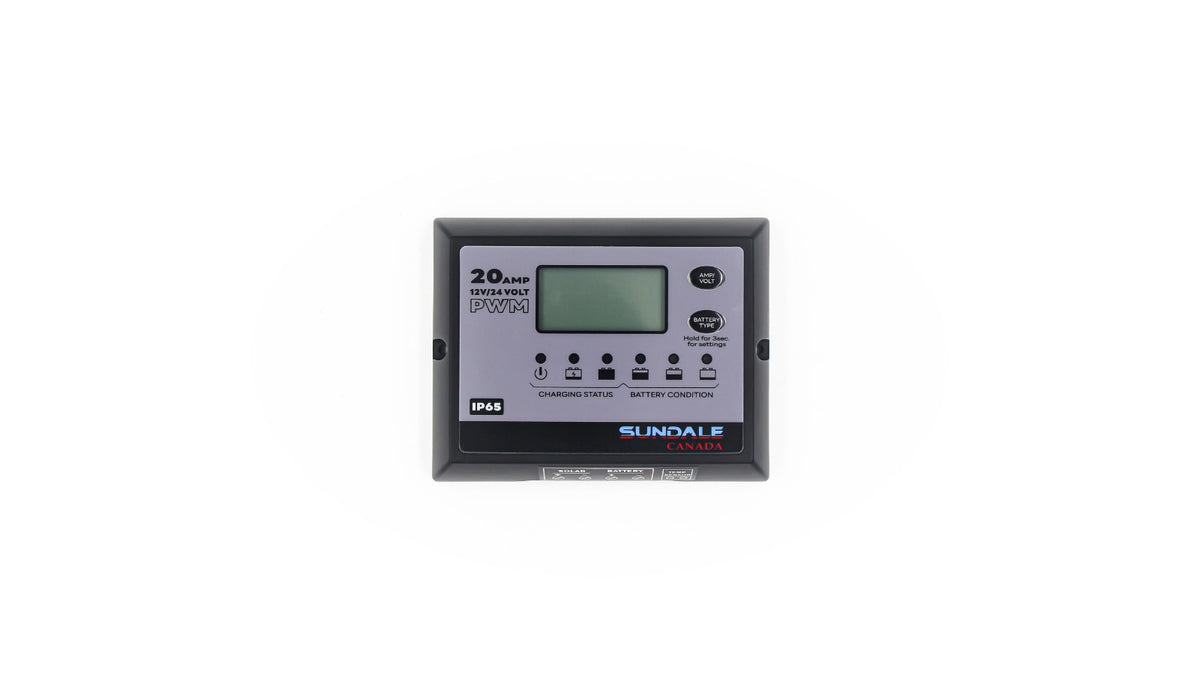

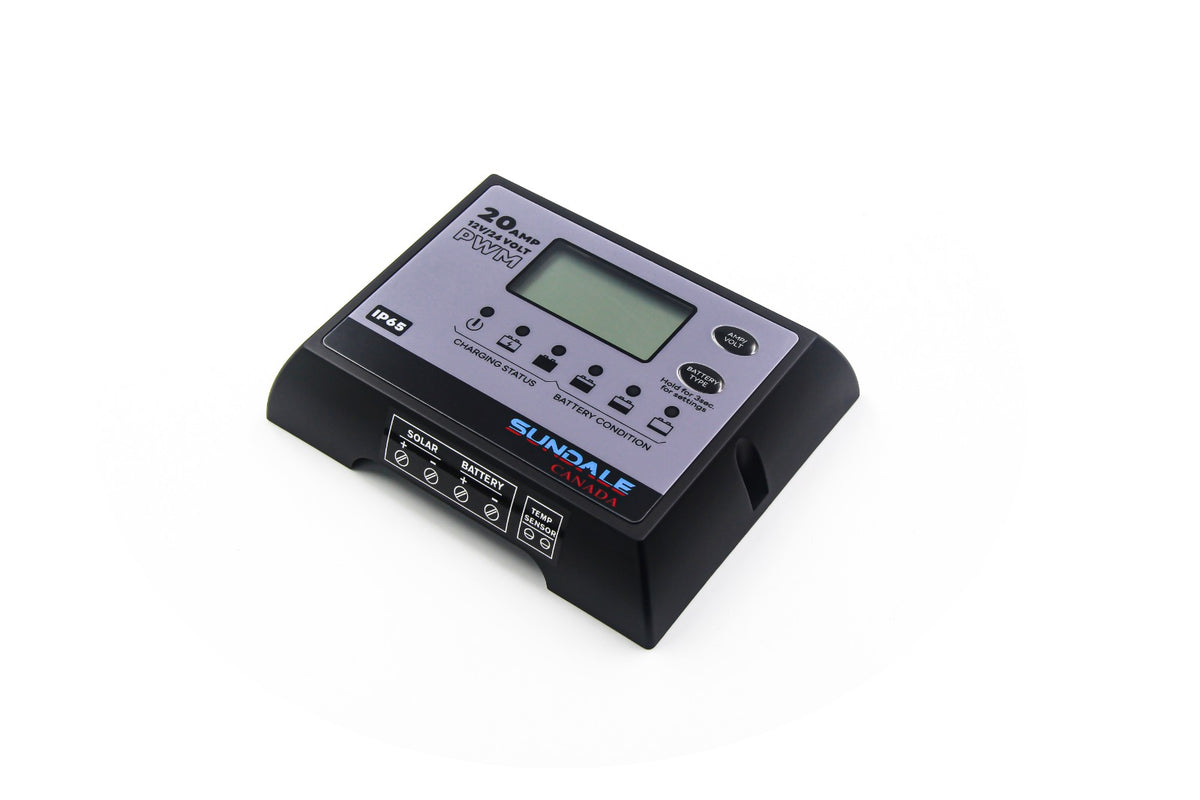

The SunDale 20A PWM controller supports 12V/24V battery charging with an LCD and status LEDs. Select the appropriate battery profile for LiFePO4, LTO, gel, AGM, wet lead-acid or calcium batteries. The IP65 version supports surface or flush-panel mounting; follow the manual for terminal protection and installation. An external battery temperature sensor is optional. PV limits are 25V at 12V and 50V at 24V. Equalization applies only to the specified wet lead-acid and calcium profiles.
