Solar Panel Specifications
| SKU: | SD-FOLD-4X50W-PWM20A-IP65-ACC |
|---|
Description
SKU: SD-FOLD-4X50W-PWM20A-IP65-ACC
SD-FOLD-200W Solar Charging Kit with SunDale Canada IP65 PWM 20A Charge Controller
Portable Folding Panels | Integrated Charge Controller | Ready-to-Use Kit
A complete, all-in-one solar charging solution for Canadians on the go. Four 50 W mono-crystalline panels wired in parallel deliver up to 200 W—even if one panel is shaded, the others keep working at full capacity. Pre-wired to a rugged IP65-rated SunDale PWM 20 A charge controller with MC4 PV inputs and SAE battery outputs, plus all necessary cables, this kit is ready to charge deep-cycle, AGM, GEL, and LiFePO₄ batteries in RVs, cabins, boats, or emergency backup systems.
Key Features & Benefits
-

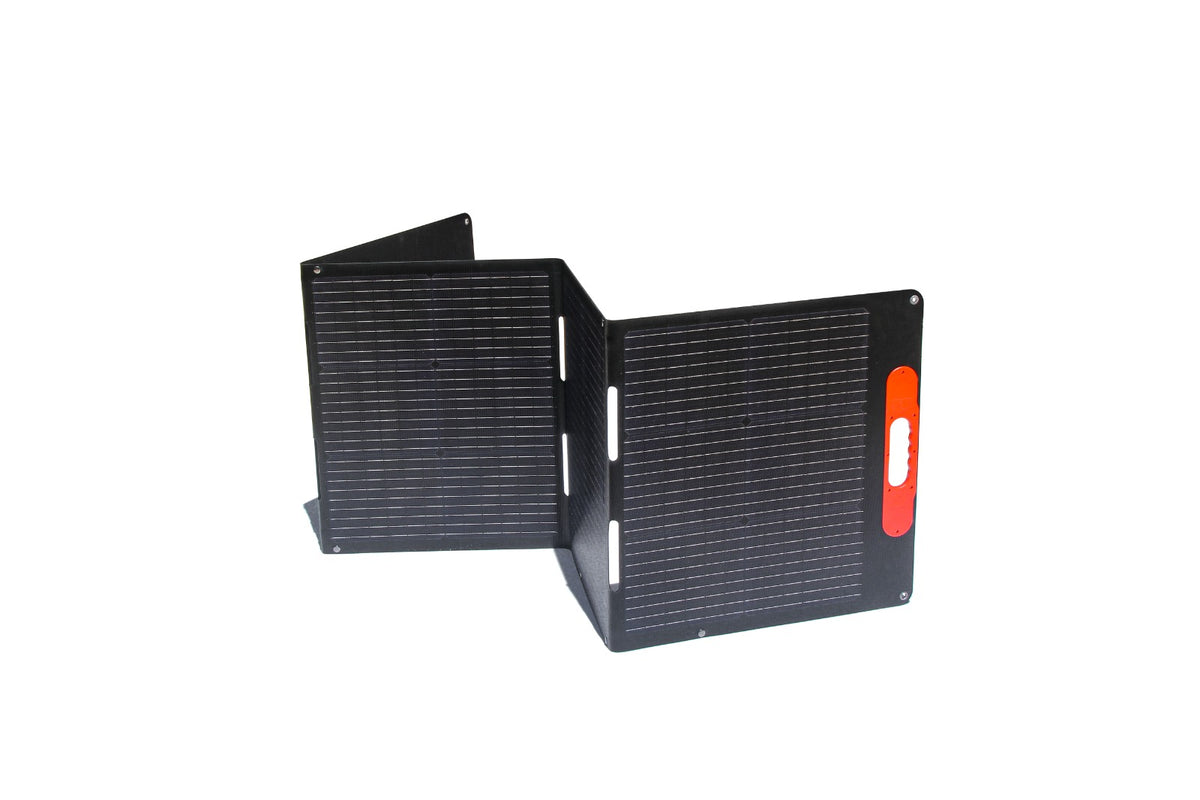

200 W Parallel-Connected Panels
Four independent 50 W modules ensure partial shading doesn’t drag down total output. -

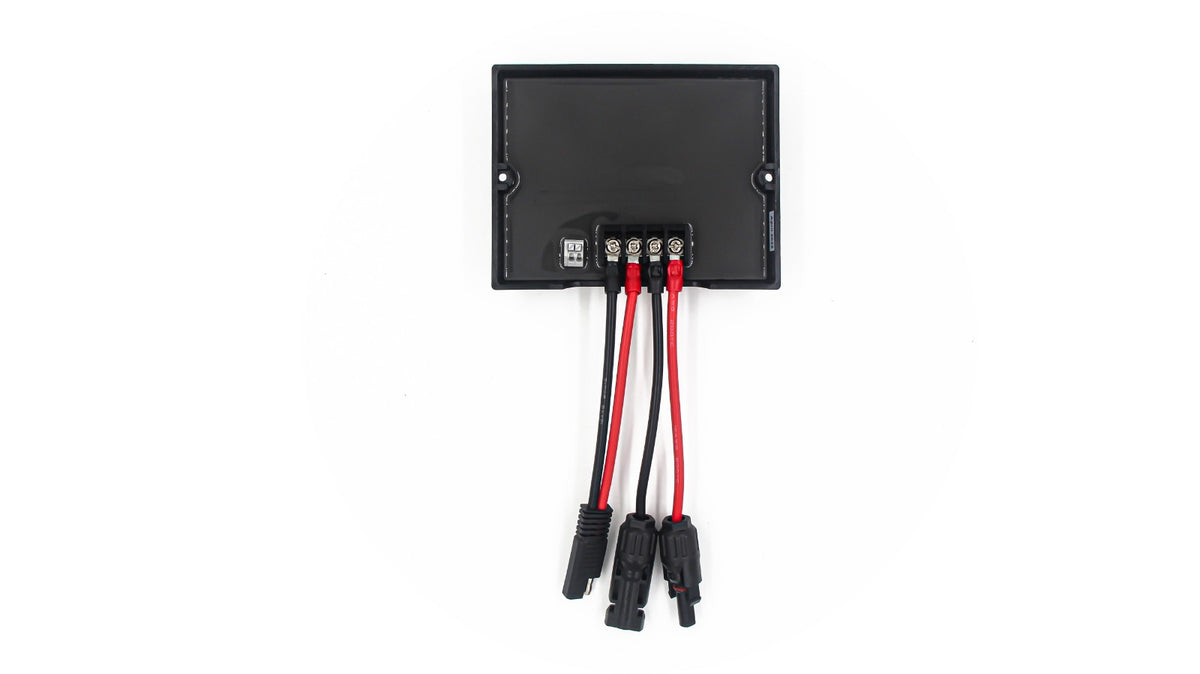

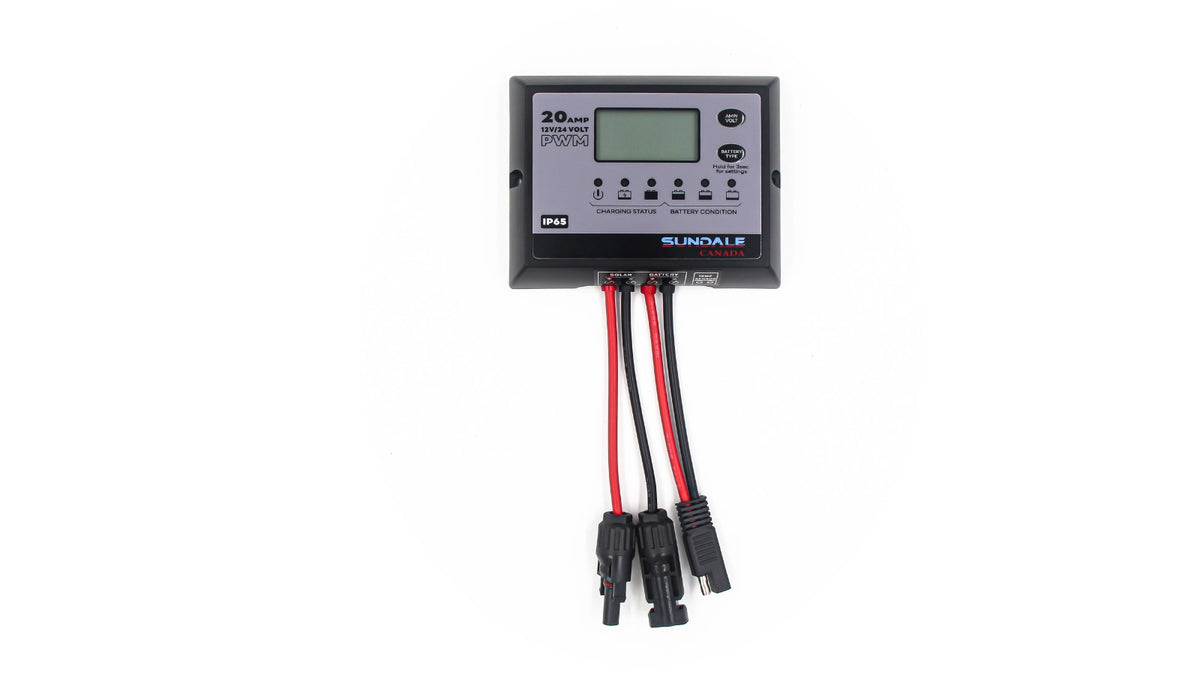

SunDale Canada IP65 PWM 20 A Controller
Built-in overcharge, reverse-polarity, and load-reverse protection; rated for dust, water, and Canadian conditions. -
Pre-Wired MC4 & SAE Connectors
Simplifies setup—just unfold panels, plug MC4 into the controller’s PV ports, and clip SAE to your battery. -
Comprehensive Cable Kit
-

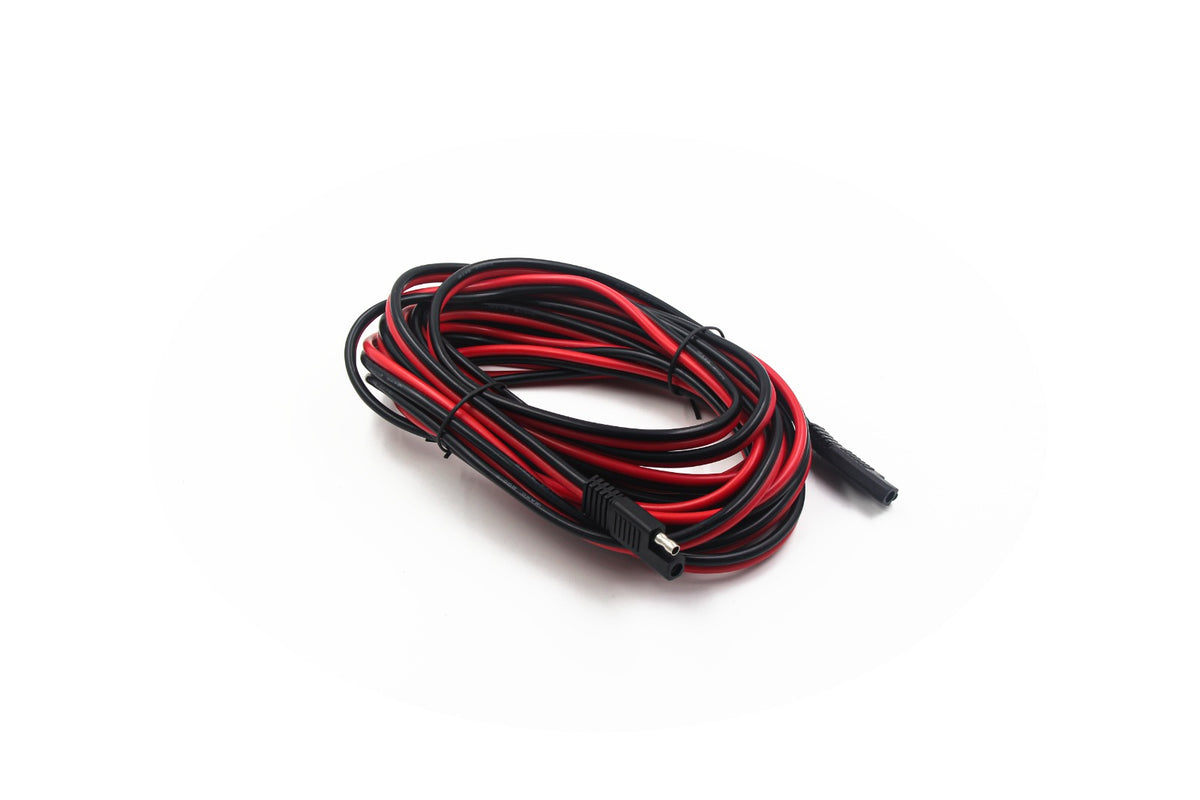

6 m (20 ft) SAE-to-SAE, 12 AWG cable
-

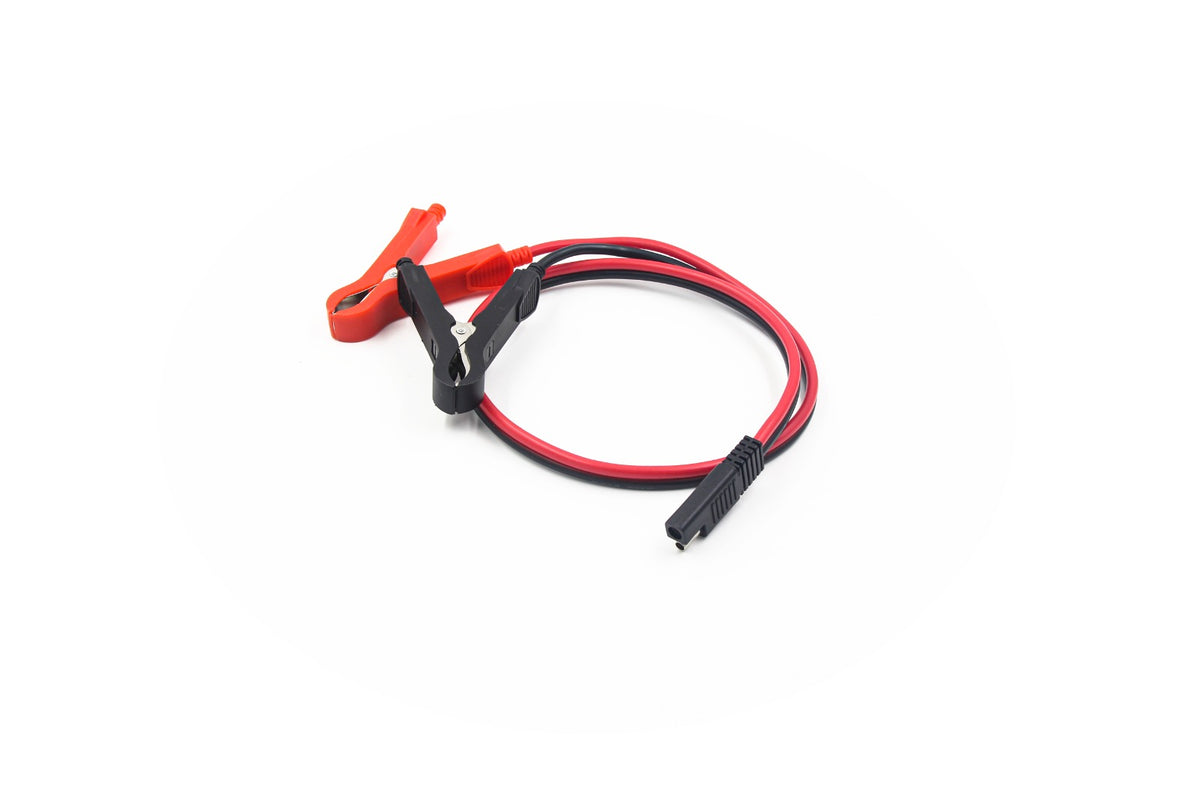

0.6 m SAE-to-Alligator clamps, 12 AWG
-

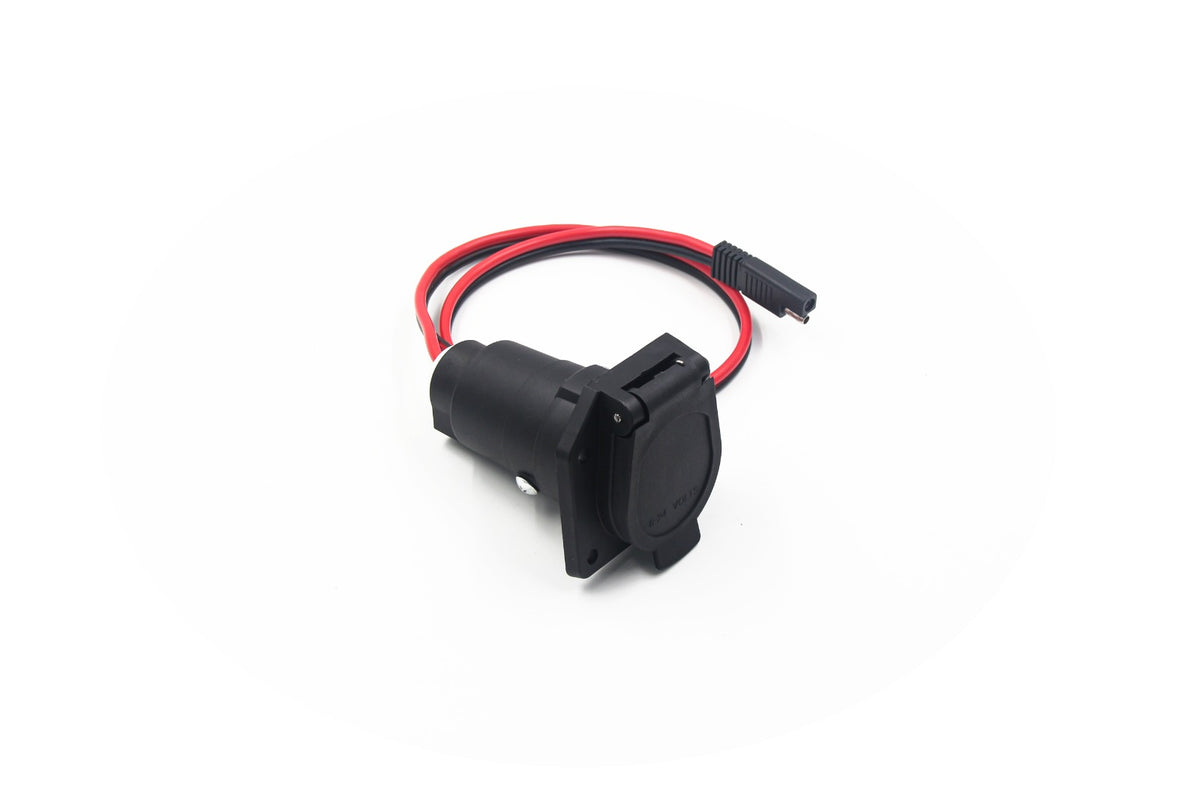

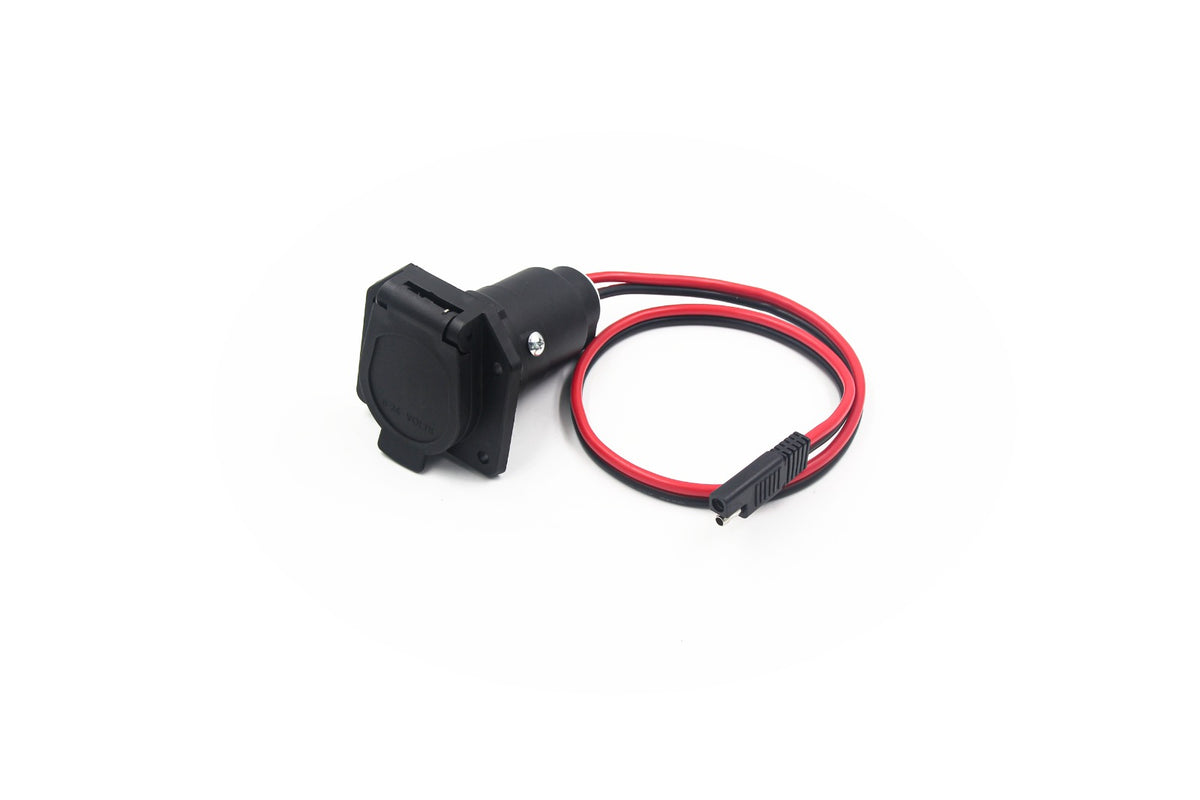

0.6 m SAE-to-7-Pin RV connector, 12 AWG
-
-

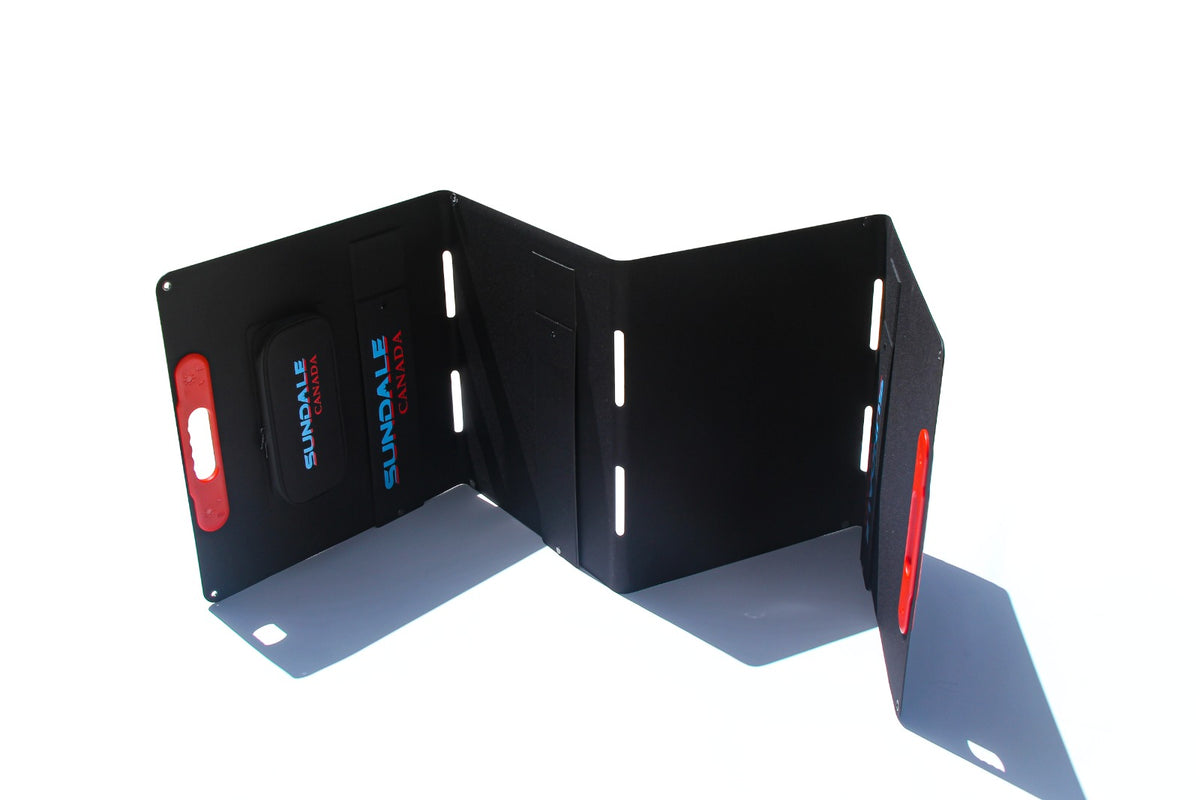

Portable & Durable

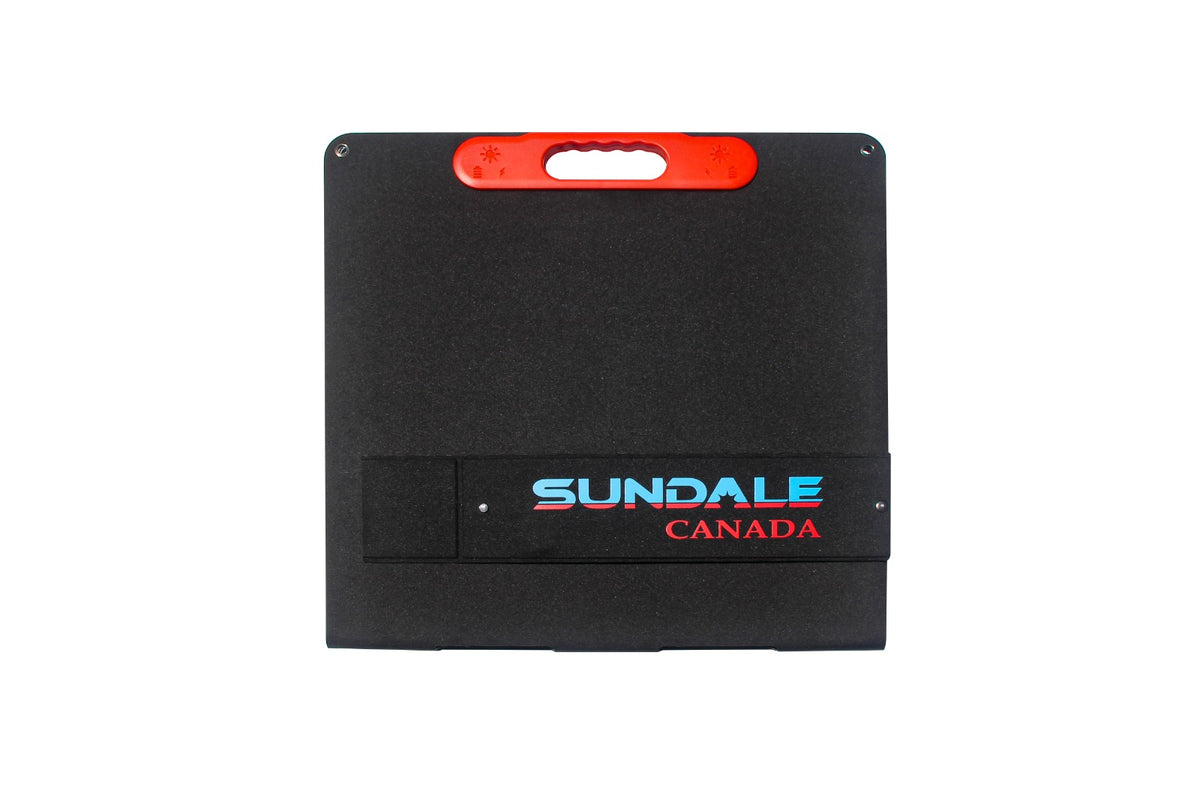

Folds to 615 × 560 mm, opens to 2340 × 560 mm (92 × 22.0 in); weighs just 4.5 kg. UV-resistant, weatherproof materials stand up to –40 °C to +85 °C.
⚠️ Warning: Panels and controller produce live DC voltage in sunlight. Cover panels or disconnect cables before handling.

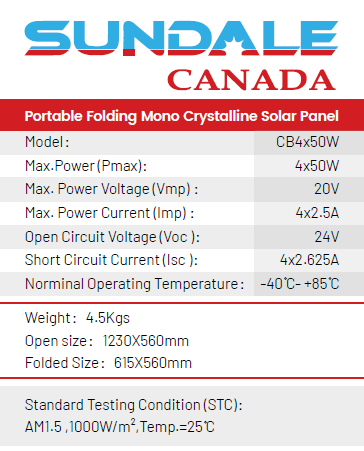

Technical Specifications
| Specification | Details |
|---|---|
| Solar Modules | 4 × 50 W mono-crystalline (200 W total) |
| Vmp / Imp per Panel | 20 V / 2.5 A |
| Voc / Isc per Panel | 24 V / 2.625 A |
| Connection | Parallel (10 A total Imp, 10.5 A total Isc) |
| Charge Controller | SunDale Canada IP65 PWM, 20 A max |
| Controller PV Input | MC4 connectors |
| Controller Battery Output | SAE connectors |
| Cable Kit | 6 m SAE–SAE, 0.6 m SAE–Alligator, 0.6 m SAE–7-Pin |
| Cable Gauge | 12 AWG |
| Panel Dimensions (Open/Folded) | 2340 × 560 mm (92 × 22.0 in) / 615 × 560 mm |
| Operating Temperature | –40 °C to +85 °C |
| Certifications | CE, RoHS |
Why Buy from Solar Super Store?
-
Fast Shipping Across Canada — coast-to-coast delivery
-
Canadian-Based Expert Support — product specialists ready to help
-
Genuine Quality & Warranty — backed by manufacturer guarantees
Get fully charged, wherever your Canadian adventures take you. Add the SD-FOLD-200W Solar Charging Kit to your cart today.
