Solar Panel Specifications
| SKU: | SD-FOLD-4X50 |
|---|
Description
SKU: SD-FOLD-4X50

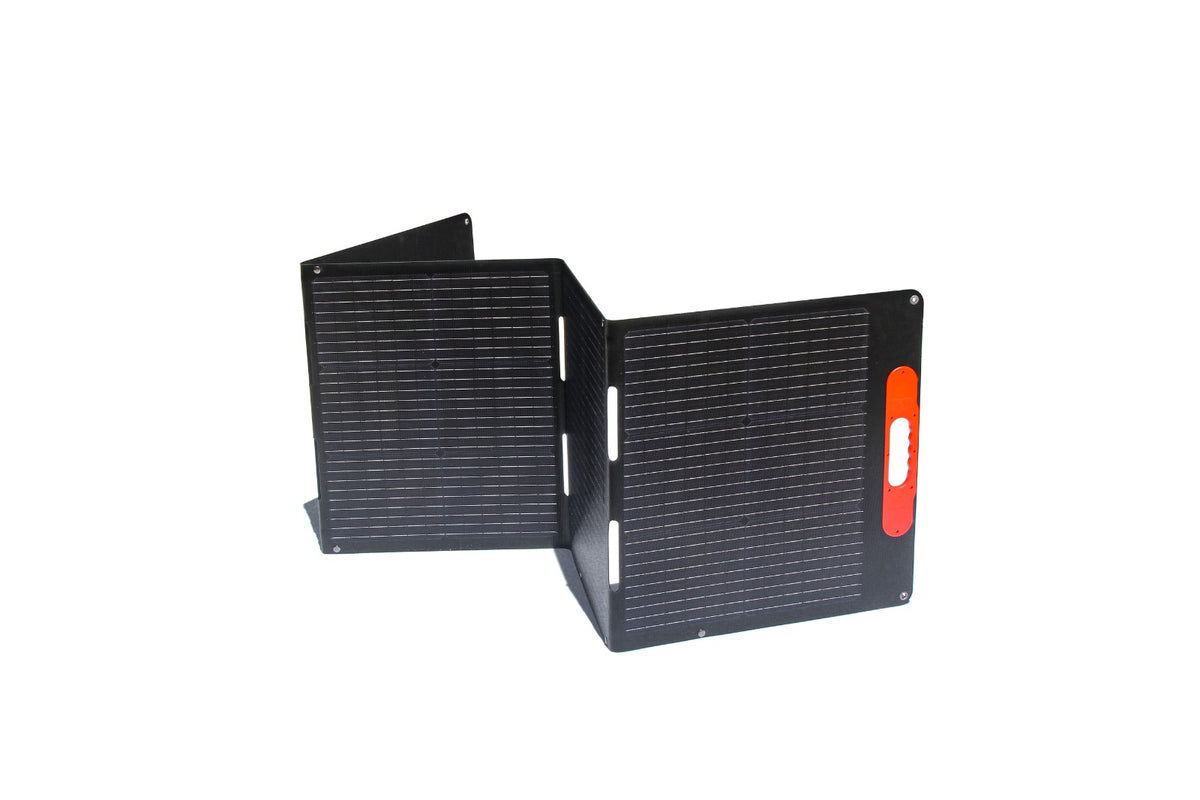

SD-FOLD-200W Portable Folding Solar Panel 200 W (4 × 50 W)
Mono-Crystalline | Parallel Connection | UV-Resistant
Harness portable solar power coast to coast in Canada with the SD-FOLD-200W foldable panel. Four 50 W modules wired in parallel ensure partial shading never reduces output on sunlit sections—ideal for off-grid cabins, RVs, boats, and emergency backup.
Key Features & Benefits
-
Parallel-Connected 4 × 50 W Panels
Each panel operates independently in parallel, so shaded cells don’t drag down overall output. -
High-Efficiency Mono-Crystalline Cells
Delivers 200 W total under STC, maximizing power yield in varied Canadian sunlight conditions. -

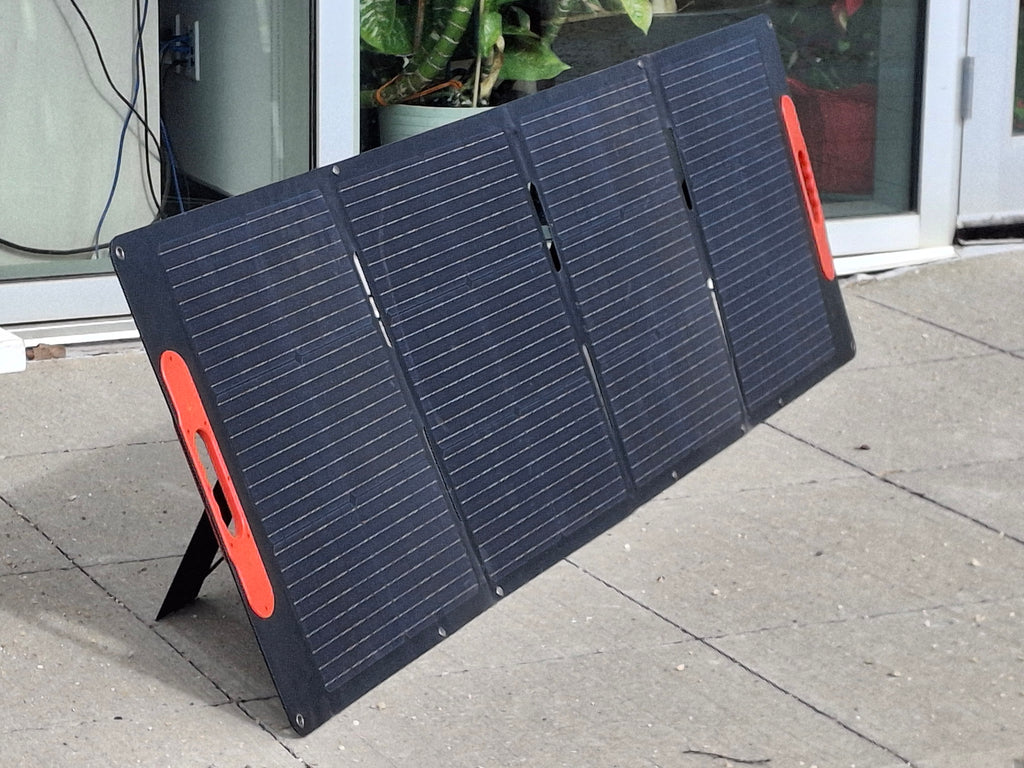

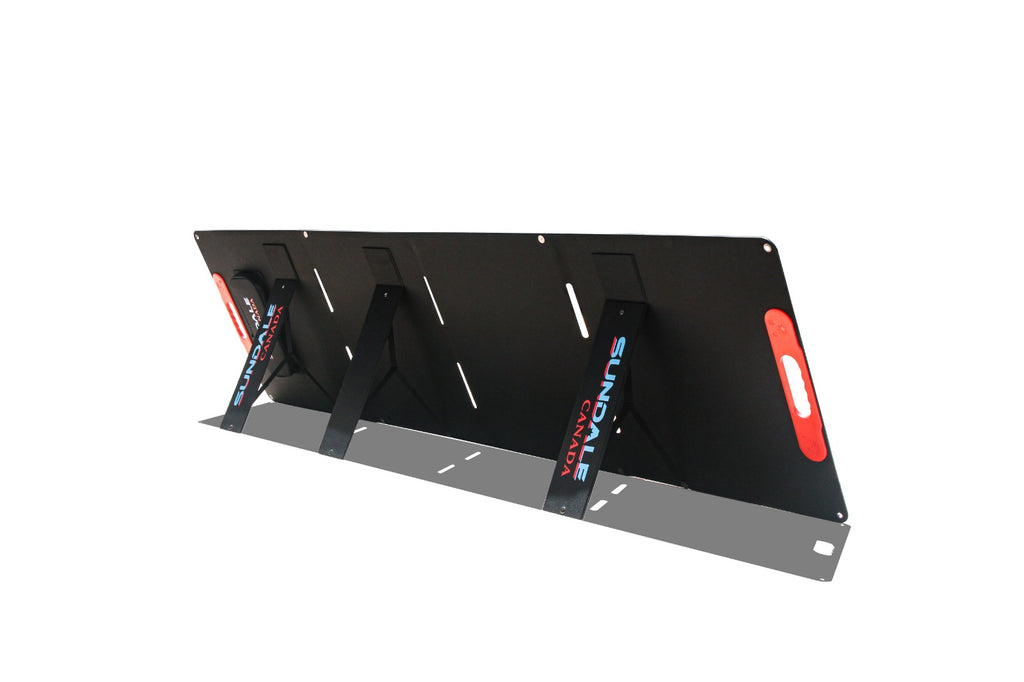

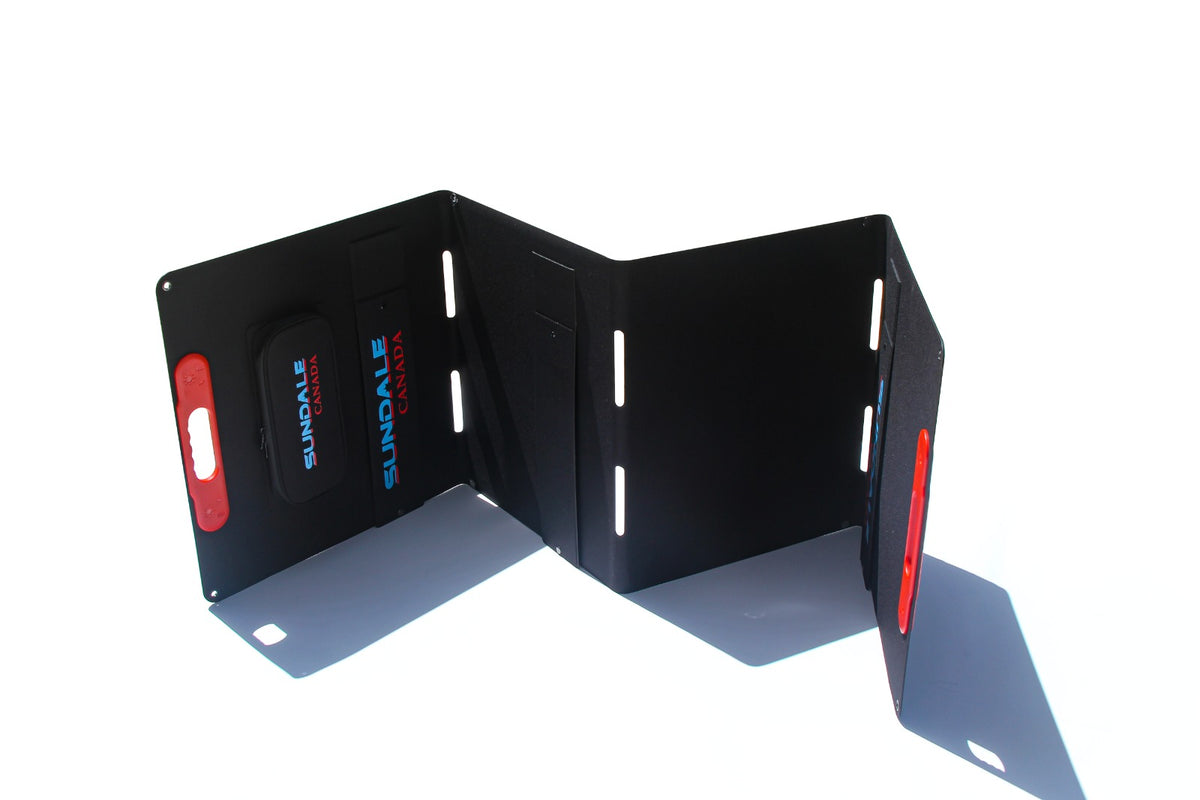

Portable Folding Design

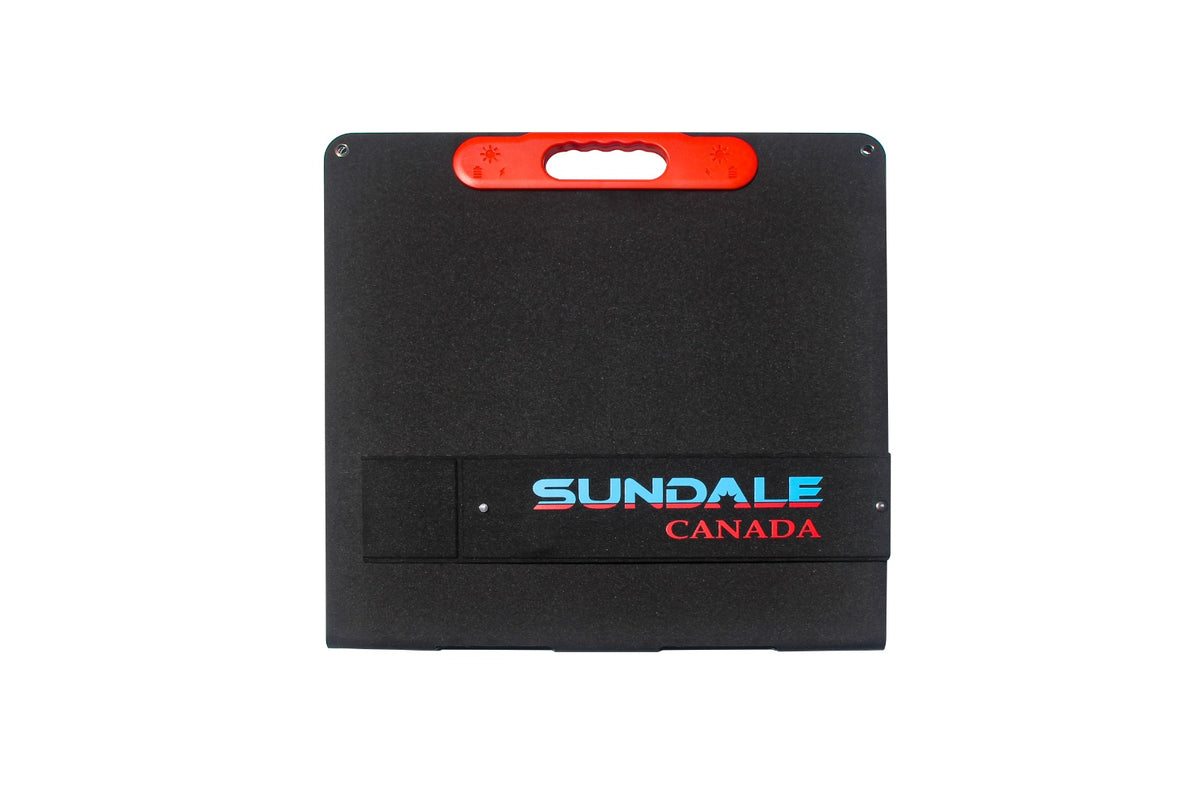

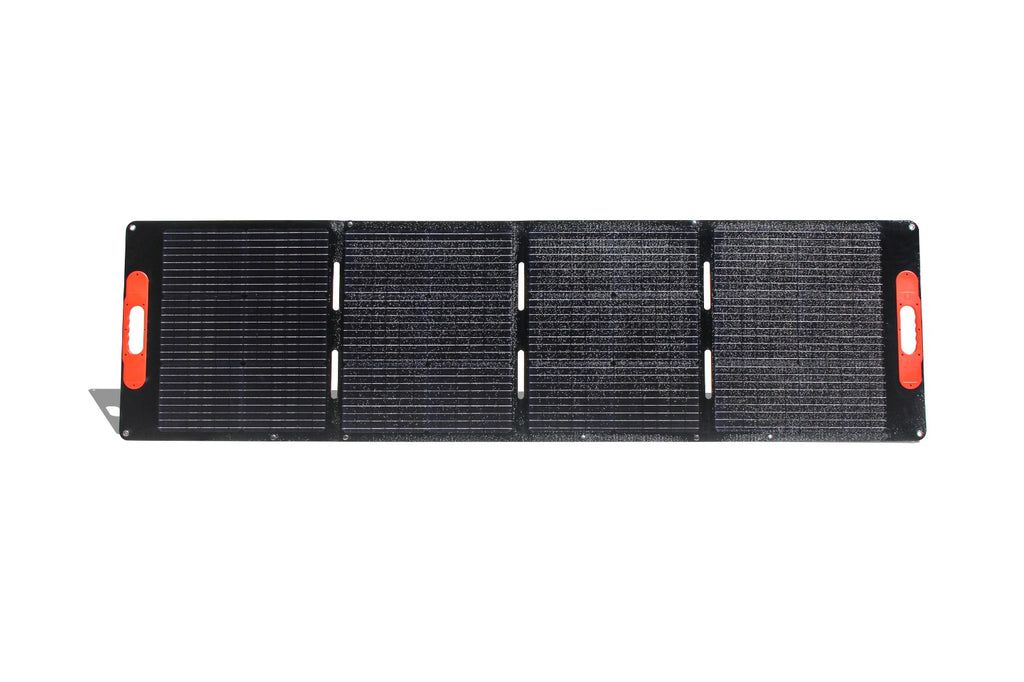

Opens to 1230 × 560 mm for full-power generation; folds to 615 × 560 mm for easy transport and storage. -
Wide Operating Temperature Range
Rated –40 °C to +85 °C, built to perform through Canadian winters and summers. -
Lightweight & Compact
Weighs just 4.5 kg for effortless handling during camping, marine, or mobile installations. -
Durable, Weather-Resistant Construction
Rugged frame and UV-resistant materials resist corrosion, moisture, and dust.
⚠️ Warning: Panels generate high DC voltage when exposed to sunlight. Cover panels or disconnect before handling to avoid electric shock.

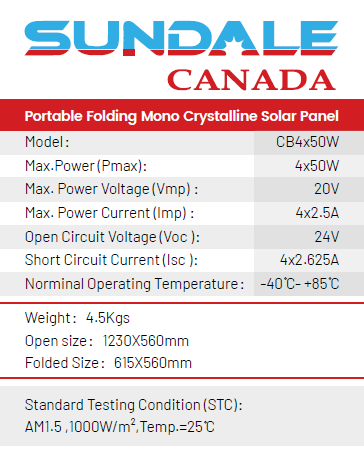

Technical Specifications
| Specification | Details |
|---|---|
| Maximum Power (Pmax) | 4 × 50 W (200 W total) |
| Max Power Voltage (Vmp) | 20 V |
| Max Power Current (Imp) | 4 × 2.5 A (10 A total) |
| Open Circuit Voltage (Voc) | 24 V |
| Short Circuit Current (Isc) | 4 × 2.625 A (10.5 A total) |
| Operating Temperature | –40 °C to +85 °C |
| Dimensions (Open) | 2340 × 560 mm (92 × 22.0 in) |
| Dimensions (Folded) | 615 × 560 mm (24.2 × 22.0 in) |
| Weight | 4.5 kg (9.9 lb) |
| Testing Condition | STC: AM 1.5, 1000 W/m², 25 °C |
