SKU: SD-VPM-ADJ-45IN
SunDale Canada Heavy Duty Vertical Pole Mount for 45″ Solar Panel Frames & Pole Dia 2.2" - 11".
If your Pole Diameter is between 12.48" - 62.48" GET : SD-CS-317-1586MM
Overview

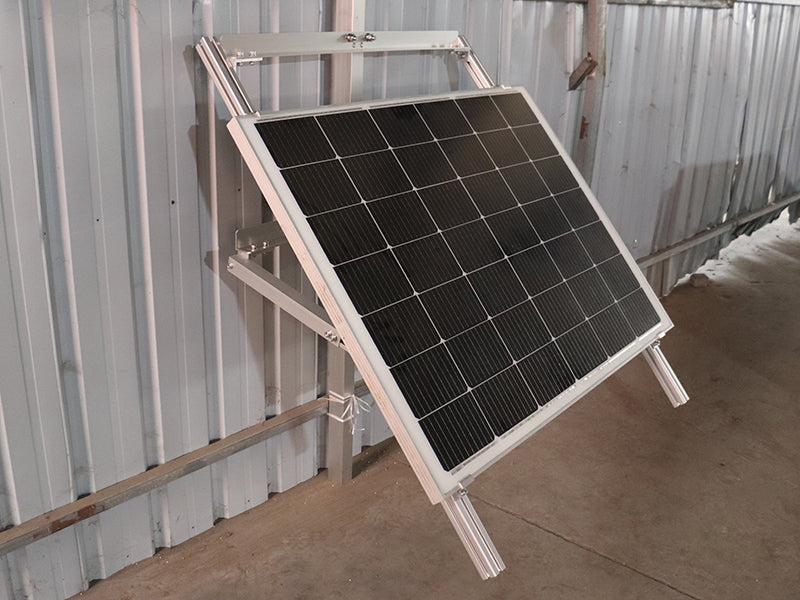

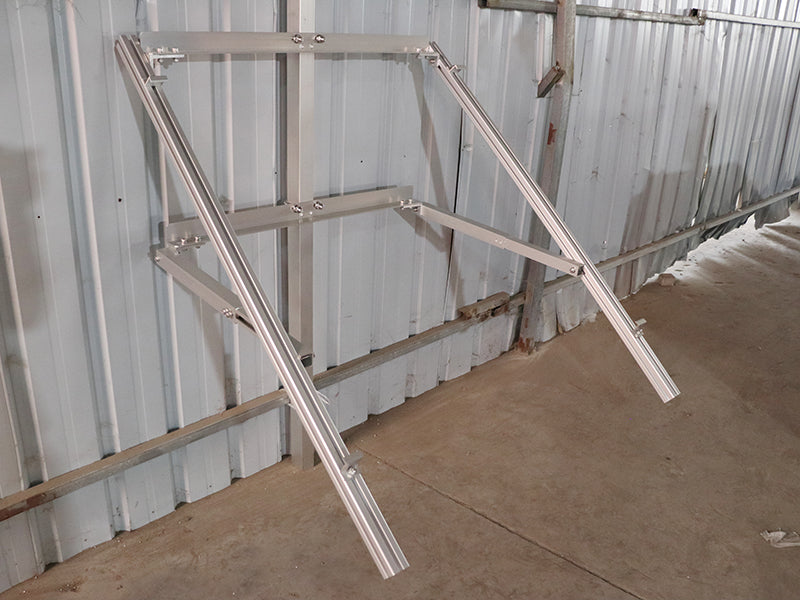

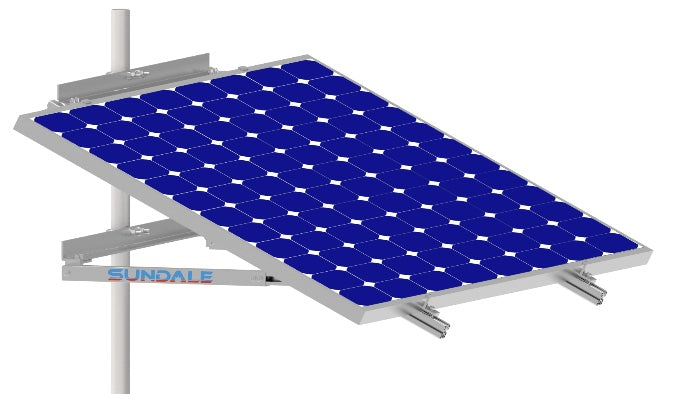

Heavy-duty aluminum pole mount engineered for 45″-frame solar panels on utility poles or mast posts
Adjustable tilt from 60° to 90° for optimal sun-tracking and year-round energy harvest
Key Features & Benefits
Premium Aluminum Construction: Lightweight yet robust, with marine-grade finish for coastal, prairie and northern durability
Precision Angle Adjustment: Simple bolt-release mechanism to set tilt between 60°–90° in 5° increments
Universal 45″ Frame Fit: Clamps accommodate standard 45″ (1143 mm) panel lengths
Specifications
Material: Anodized aluminum with stainless-steel hardware
Tilt Range: 60°–90° adjustable in 5° steps
Solar Panel Compatibility: Length 45″–75″; width up to 45″
Pole Compatibility: Fits 56–280 mm (2.2″–11″) OD poles with included mounting brackets. For larger Poles please get Additional Cable Straps
Wind Rating: 32 m/s (115 km/h) wind speed; 1.4 kN/m² (≈29 psf) pressure
Installation & Compatibility
Plug-and-Play Hardware: Pre-drilled brackets, U-bolts and grounding lugs for NEC/CSA compliance
Quick Setup: One- or two-person installation with basic tools—no welding or custom fabrication required
Why It’s Ideal for Canadian Solar
Year-Round Optimization: Seasonal tilt adjustments boost winter yields in Alberta and summer harvest in B.C.
Built for Harsh Climates: Marine-grade aluminum and tested wind rating ensure reliability from coast to tundra
Space Efficiency: Vertical mounting frees up ground space for other uses in remote and rural installations
Package Details
Dimensions: 52.36″ × 5.91″ × 4.02″ (1330 × 150 × 102 mm)
