Battery Specifications
| SKU: | SD-AGM12-075-G24 |
|---|---|
| Manufacturer | SunDale Canada |
| Battery chemistry | AGM |
| Nominal voltage | 12.0 V |
| Capacity | 75.0 Ah |
| Energy capacity | 0.9 kWh |
| Peak discharge | 750.0 A |
| Peak discharge duration | 5.0 seconds |
Show all specifications (13) Show fewer specifications
| Dimensions (L × W × H) | 10.2 × 6.65 × 8.43 in |
|---|---|
| Weight | 47.4 lb |
| Max charging current | 15.0 A |
| Charging temperature range | -15.0 to 45.0 °C |
| Discharging temperature range | -15.0 to 45.0 °C |

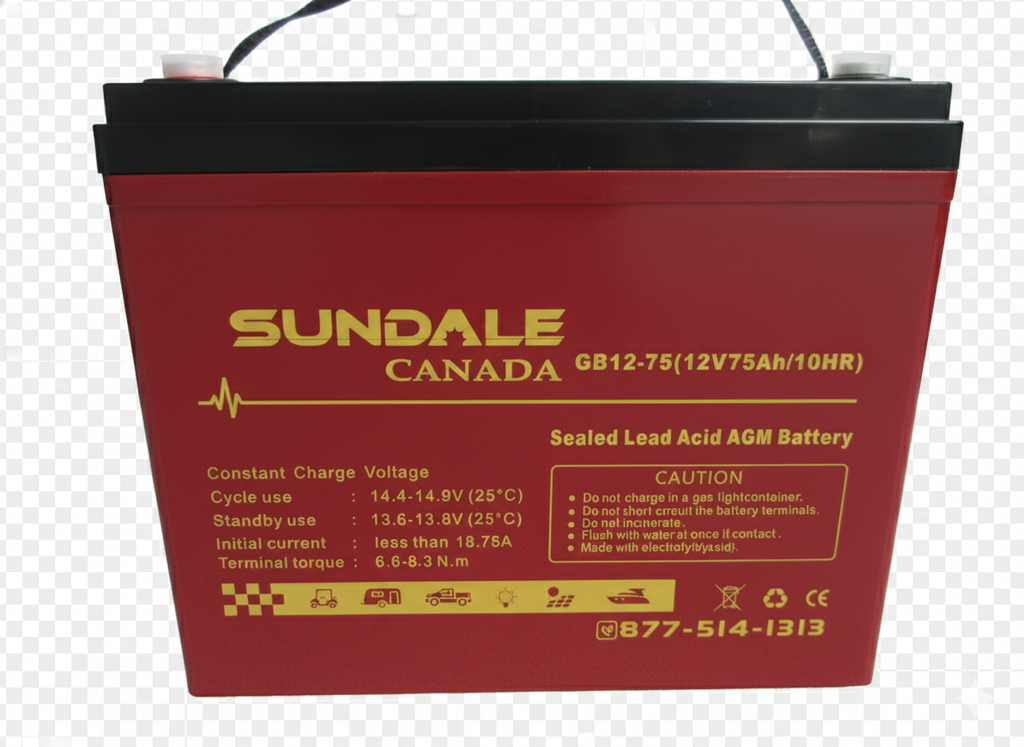

G24 — Model details
Description

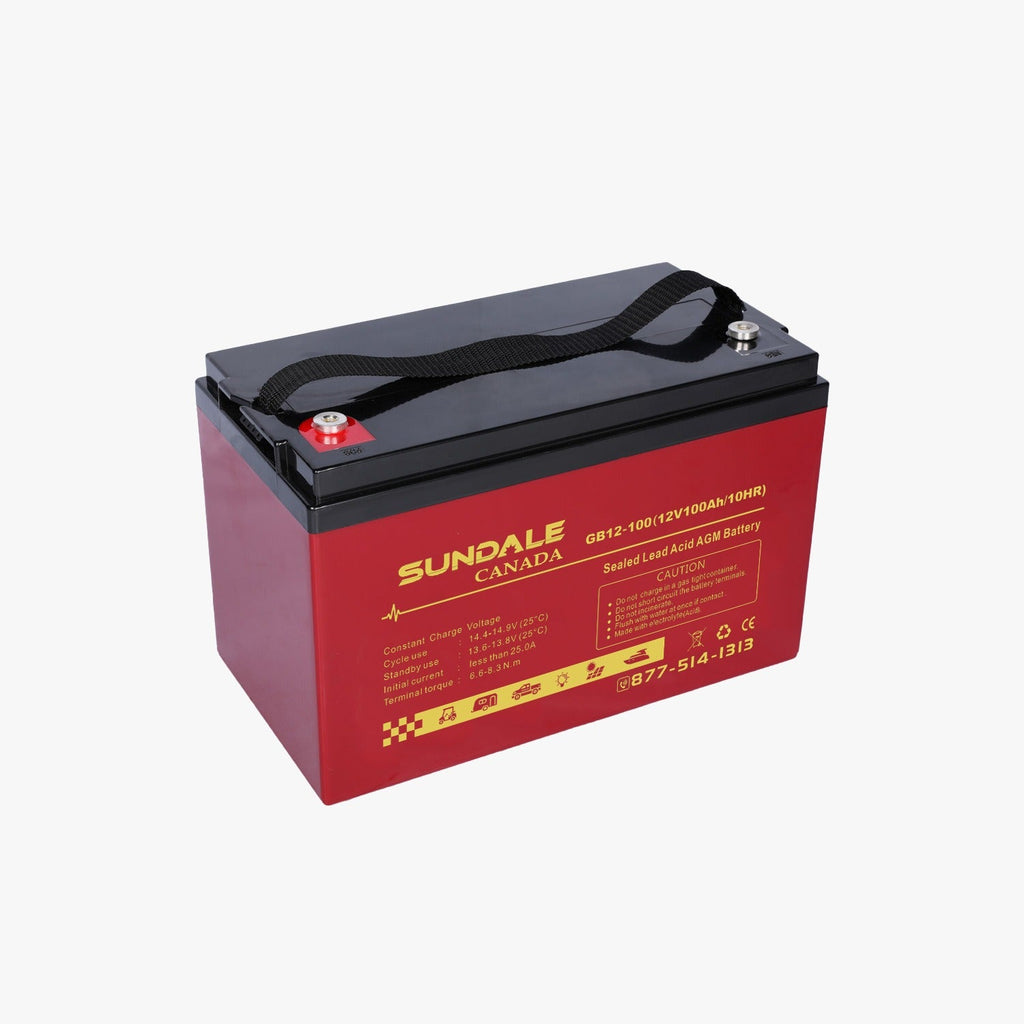

Choose a SunDale Canada 12V AGM battery for backup power, UPS or a compatible battery system. Select the compact G24 75Ah model or G31 100Ah model to suit your capacity and space requirements.
These valve-regulated lead-acid batteries use AGM construction. The 75Ah rating is at the 20-hour rate; the 100Ah rating is at the 10-hour rate. Delivered capacity varies with load and temperature. Each model has its own charge-current limit, dimensions and weight.
Use an AGM-compatible charging profile and matching models in a battery bank. The datasheet’s 15-year float design life is not a warranty or a prediction of deep-cycle service life.
