SRNE RM-5 Remote Meter
SRNE RM-5 Remote Meter

SRNE RM-5 Remote Meter

Regular price
$70.00
Sale price
$70.00
Quantity must be 1 or more

SKU: SR-RM-5

Mfg. SKU: RM-5

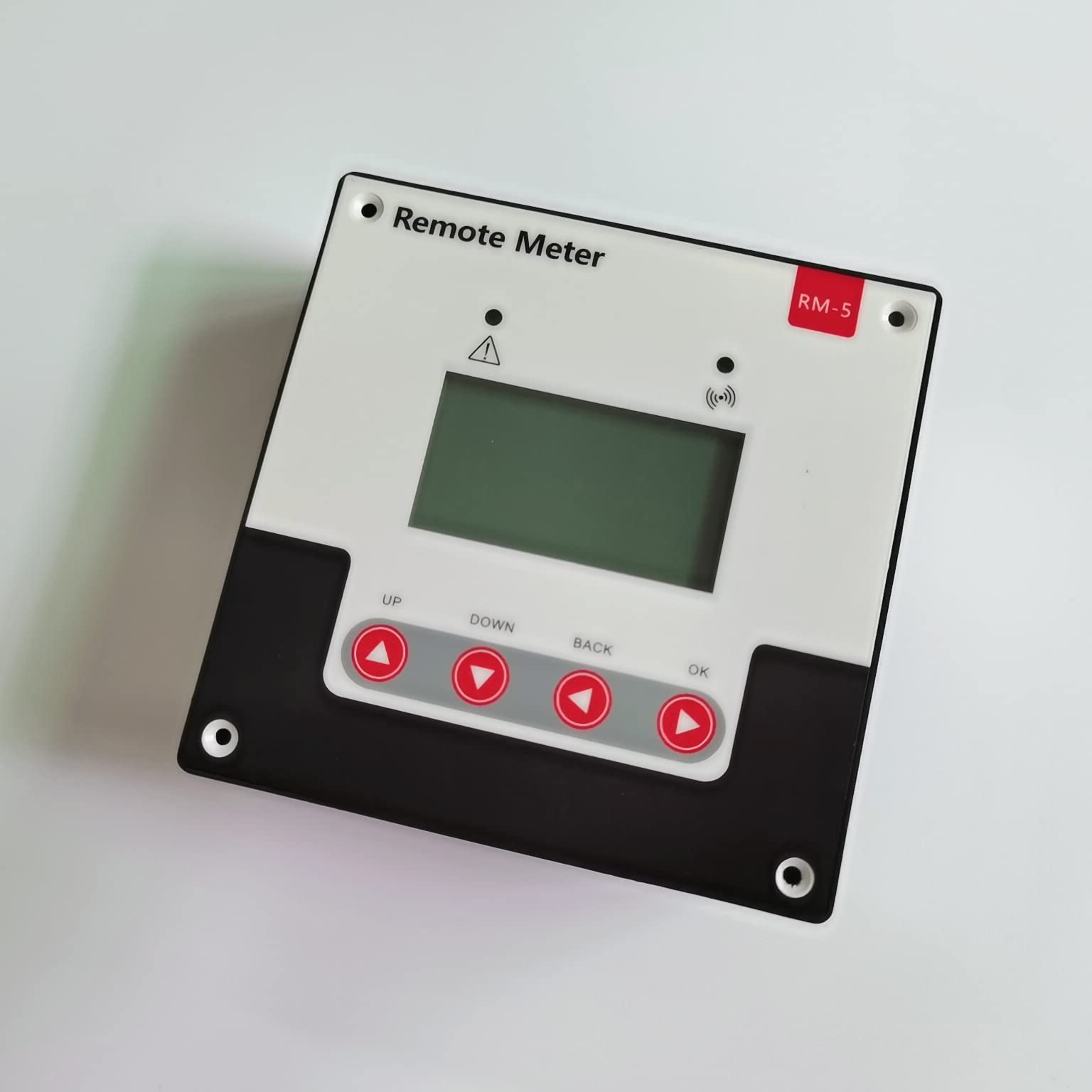

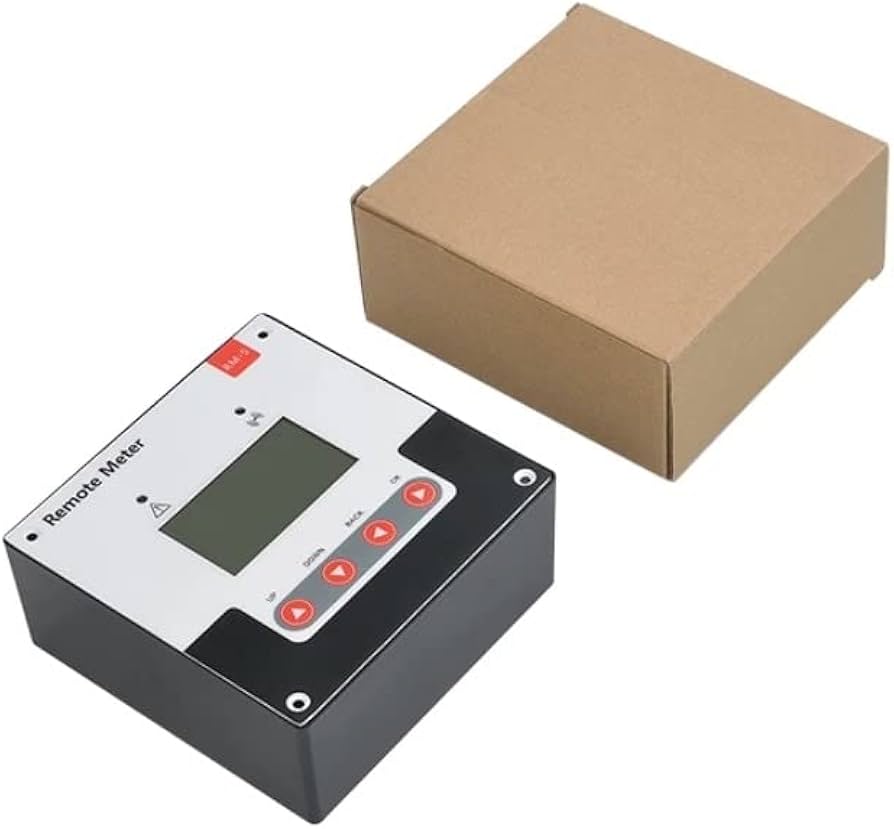

SRNE RM-5 Remote LCD Monitor for Solar Charge Controllers

Optimize your Canadian solar installation with real-time monitoring and control using the SR-RM-5 remote LCD unit. Designed for rugged environments from Yukon off-grid cabins to Quebec farmsteads, this industrial-grade monitor delivers up to 10 key parameters at a glance, plus historical data, alarms, and mobile-app connectivity—no external power required.


Key Features

  • 128×64 Graphical LCD: Numeric and icon‐based menus display PV voltage, battery voltage, charge/load current, Ah counters, temperature, and error codes simultaneously

  • Historical Data Recall: View and clear daily records of charge/discharge Amp-hours with a long-press function

  • BLE4.0 Mobile App (Optional): Low-power Bluetooth pairing for live monitoring, settings adjustments, and voice‐alarm management via your smartphone

  • Integrated Alarms & Indicators: Two LEDs flag communication faults and controller abnormalities; configurable voice‐alarm toggles keep you informed

  • One-Cable Power & Data: Standard RJ12 interface powers the unit and communicates via Modbus (9600 bps), eliminating separate power wiring

  • Industrial-Grade Durability: Operating range –35 °C to +65 °C, anti‐interference design, and compact form factor for panel or flush-mount installations


Technical Specifications

Specification SR-RM-5
Display 128 × 64 px graphical LCD
Interfaces RJ12 (6-pin), Modbus RTU (RS232, 9600 bps)
Power Consumption Backlight off: < 25 mA @ 12 V
Backlight on: < 35 mA @ 12 V
Dimensions 118.5 × 118.5 × 48 mm
Cut-out 50 × 50 mm or 70 × 70 mm (¢ 5 mm holes)
Operating Temp. –35 °C to +65 °C
Weight 0.5 kg
