SKU: SR-HF2430U80-H

Mfg. SKU: HF2430U80-H

CSA Certified Off-Grid Power Solution

IMPORTANT NOTE

This is the high-PV-voltage model and requires a minimum solar input voltage of 120 VDC. This requires a minimum of three solar panels rated at approximately 40 Voc connected in series.

All programming and battery parameter configuration for a specific battery bank must be completed by the customer.

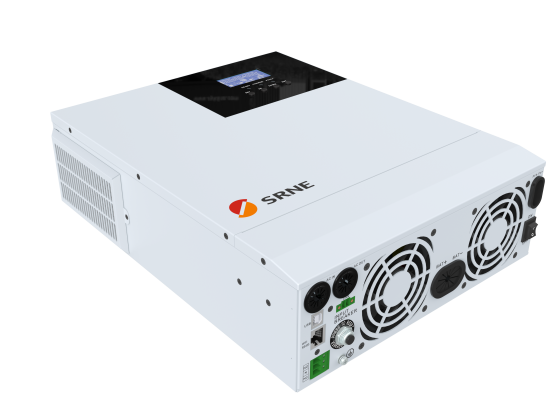

SR-HF2430U80-H 24V / 3,000W Single-Phase Off-Grid Solar Storage Inverter

High-Voltage MPPT | Pure Sine Wave | Built for Canada's Harshest Conditions

Upgrade your off-grid or backup power system with the SR-HF2430U80-H from SRNE. Designed for demanding Canadian installations, the SR-HF2430U80-H supports up to 4,000W of solar panels wired in high-voltage series strings (120–450 VDC), reducing combiner box requirements and maximizing energy harvest over long cable runs.

Key Features & Benefits

Greater Solar Capacity

Supports up to 4,000W of PV input compared to the HF2430U60-100's 1,400W capacity, making it ideal for larger rooftop or ground-mounted solar arrays.

Wide MPPT Voltage Range

Accepts PV input voltages from 120–450 VDC, allowing more modules per string while reducing installation complexity and wiring costs.

3,000W Continuous Inverter Output

Delivers 3,000W of continuous power at 120 VAC with a 6,000 VA surge capacity, making it suitable for pumps, power tools, refrigerators, medical equipment, and other demanding loads.

Integrated Charger & UPS Function

Features up to 80A solar charging and 40A utility/generator charging for rapid battery replenishment. Automatic UPS transfer (<10 ms) helps protect sensitive equipment during power interruptions.

Pure Sine Wave Performance

Provides clean, low-distortion AC power suitable for computers, communications equipment, audio/video electronics, and other sensitive devices.

Comprehensive Protection Features

Includes over-voltage, under-voltage, over-current, reverse-polarity, short-circuit, over-temperature, and PV anti-reverse protection to safeguard your system.

Built for Canadian Conditions

Designed for indoor installations with an IP20 enclosure rating and variable-speed fan cooling. Operates in temperatures from -15°C to +55°C and humidity levels from 0–100%, making it suitable for utility rooms, enclosed sheds, cabins, and other protected environments.

Smart Monitoring & Connectivity

Features an integrated LED/LCD display and supports RS485, CAN, and USB communications. Optional Wi-Fi and GPRS modules enable remote monitoring and firmware updates.

Technical Specifications
