SKU: SR-MC2420N10
Mfg. SKU: MC2420N10
**Requires either a RM-6 or a BT-2 to provide a digital display**

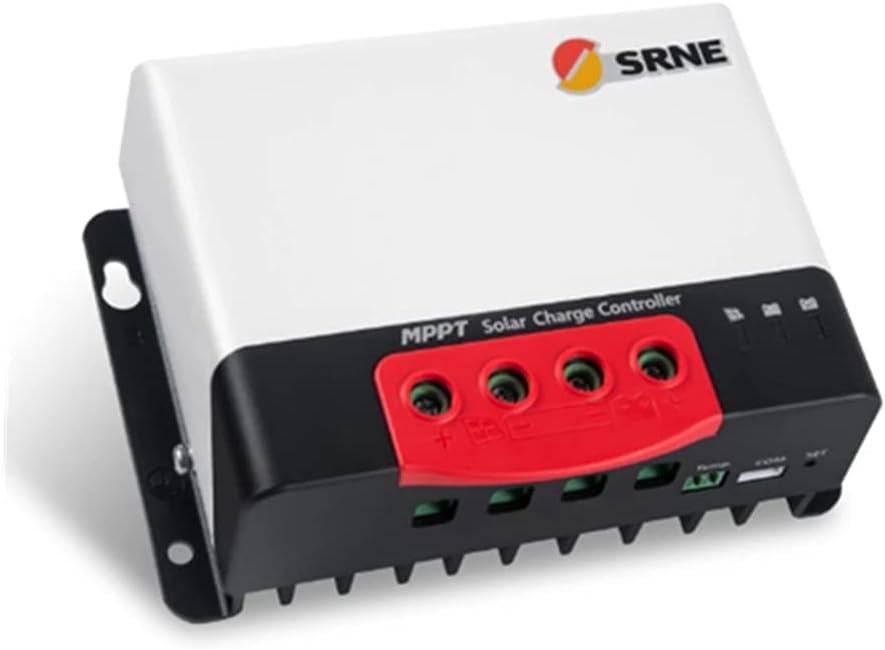

SRNE MC2420N10 MPPT Solar Charge ControllerMaximize efficiency on small to mid-size Canadian solar systems with the SRNE MC2420N10—a 12/24 V, 20 A MPPT controller built for coast-to-coast performance. From Vancouver’s rainy coastlines to Quebec’s icy winters, its compact design and advanced tracking keep batteries optimally charged in any climate.
Max. PV Input Power: 260 W @ 12 V / 520 W @ 24 V for versatile array sizing
Wide MPPT Range: (Battery voltage + 2 V) – 72 V adapts to fluctuating panel outputs
High Tracking Efficiency: > 99 % MPPT tracking and up to 98 % conversion efficiency
Multi-Chemistry Support: FLD, GEL, LI, SLD, and customizable battery types
Robust Build: IP32-rated enclosure; operates from –35 °C to +60 °C (–31 °F to +140 °F)
Smart Load Control: Auto light-control, timer, manual, and debugging modes for lighting and device loads
Compact & Lightweight: 150 × 105.6 × 61.5 mm; only 0.65 kg (1.43 lb)
Optional Display: RM-6 for real-time data
Bluetooth BT-2 Module: Mobile-app monitoring
TTL & CAN Ports: USB-to-TTL, RS485, RV-C CAN protocol support
Temperature Sensor: Optimizes charging based on ambient conditions
Residential Rooftops: Ideal for cottage, cabin, and small home installations
Off-Grid & Remote: Perfect for RVs, marine, telecom, and isolated sites
Commercial & Agricultural: Supports modest farm and outbuilding systems
Ship-to-door service across all provinces and territories. Proudly stocked in Edmonton for fast fulfillment and local technical support—keeping your solar projects on track from BC to Newfoundland.
MPPT Charge Controller 12V/24V 20A Common Negative
Remote display
Bluetooth

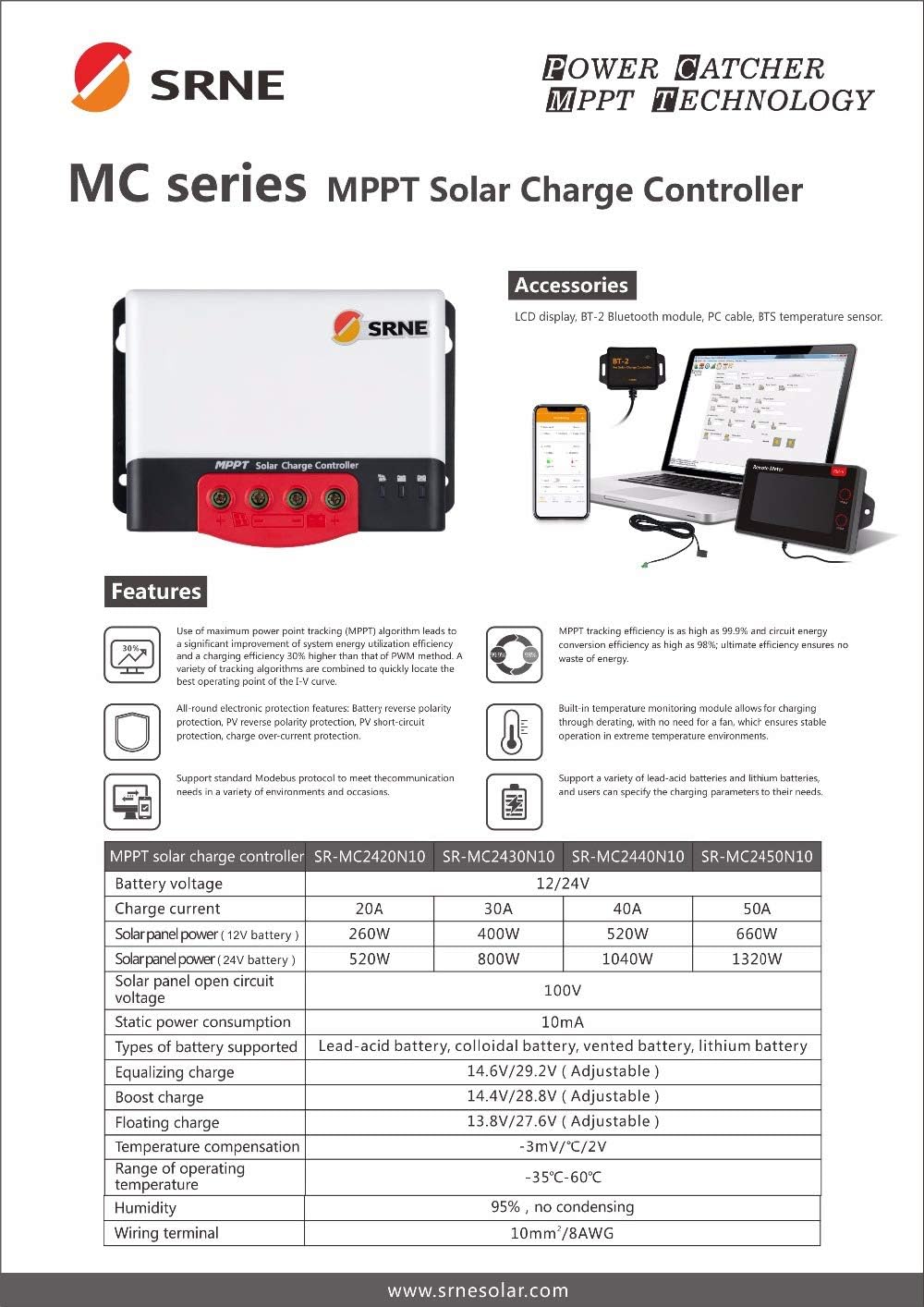

DataSheet
