Inverter Specifications
| SKU | SA-5K-1P |
|---|---|
| Operating type | Grid-tie, Off-grid, Hybrid |
| Inverter function | Inverter/charger |
| Continuous AC output power (W) | 4800.0 |
| AC output voltage (V) | 120 |
| AC output frequency (Hz) | 50, 60 |
| AC phase configuration | Single-phase |
| Battery support | Optional |
Show all specifications (59)Show fewer specifications
| Nominal battery voltage (V) | 48 |
|---|---|
| Min battery voltage (V) | 40.0 |
| Max battery voltage (V) | 60.0 |
| Outage backup capability | Yes |
| Backup/EPS output power (W) | 4800.0 |
| Backup output voltage (V) | 120 |
| Backup transfer time (ms) | 5.0 |
| Surge apparent power (VA) | 7200.0 |
| Surge duration (s) | 5.0 |
| Surge rating conditions | 7200 VA for 5 s in 120 V off-grid mode; 8000 W / 12000 VA ratings belong to the 240 V configuration. |
| Solar PV input supported | Yes |
| Max recommended PV array power (W) | 10400.0 |
| Max DC input voltage (V) | 500.0 |
| PV startup voltage (V) | 125.0 |
| Min MPPT voltage (V) | 150.0 |
| Max MPPT voltage (V) | 425.0 |
| Independent MPPT count | 2 |
| PV strings per tracker | 2 |
| Max PV operating current (A) | 20.0 |
| PV operating-current limit basis | Per tracker |
| PV input and tracker conditions | Datasheet lists 26 A max per MPPT, self-limited to 20 A operating current. |
| Solar battery charging supported | Yes |
| Max combined battery charging current (A) | 120.0 |
| Generator input supported | Yes |
| AC pass-through current (A) | 50.0 |
| Export control supported | Yes |
| Peak efficiency (%) | 97.6 |
| Weighted efficiency standard | CEC |
| Idle/no-load consumption (W) | 60.0 |
| Standard warranty (years) | 10.0 |
| Parallel operation supported | Yes |
| Max parallel units | 8 |
| Communication interfaces | CAN bus, RS485 |
| Wi-Fi availability | Included accessory |
| Ethernet availability | Included accessory |
| Monitoring app or portal | MySolArk |
| Length (mm) | 237.0 |
| Width (mm) | 330.0 |
| Height (mm) | 600.0 |
| Weight (kg) | 24.0 |
| Mounting format | Wall-mounted |
| Installation environment | Indoor/outdoor |
| Enclosure rating | IP65 / NEMA 3R |
| Min operating temperature (°C) | -40.0 |
| Max operating temperature (°C) | 60.0 |
| Temperature and altitude derating | Output derates above 45°C and above 2000 m. |
| Max operating altitude (m) | 2000.0 |
| Noise measurement conditions | <30 dB at 25°C. |
| Certifications | UL 1741 |
| Grid standards and listings | IEEE 1547a |
| MPN | 5K-1P-N |
Description
SKU: SA-5K-1P
Mfg. SKU: 5K-1P
Last 5 Remaining

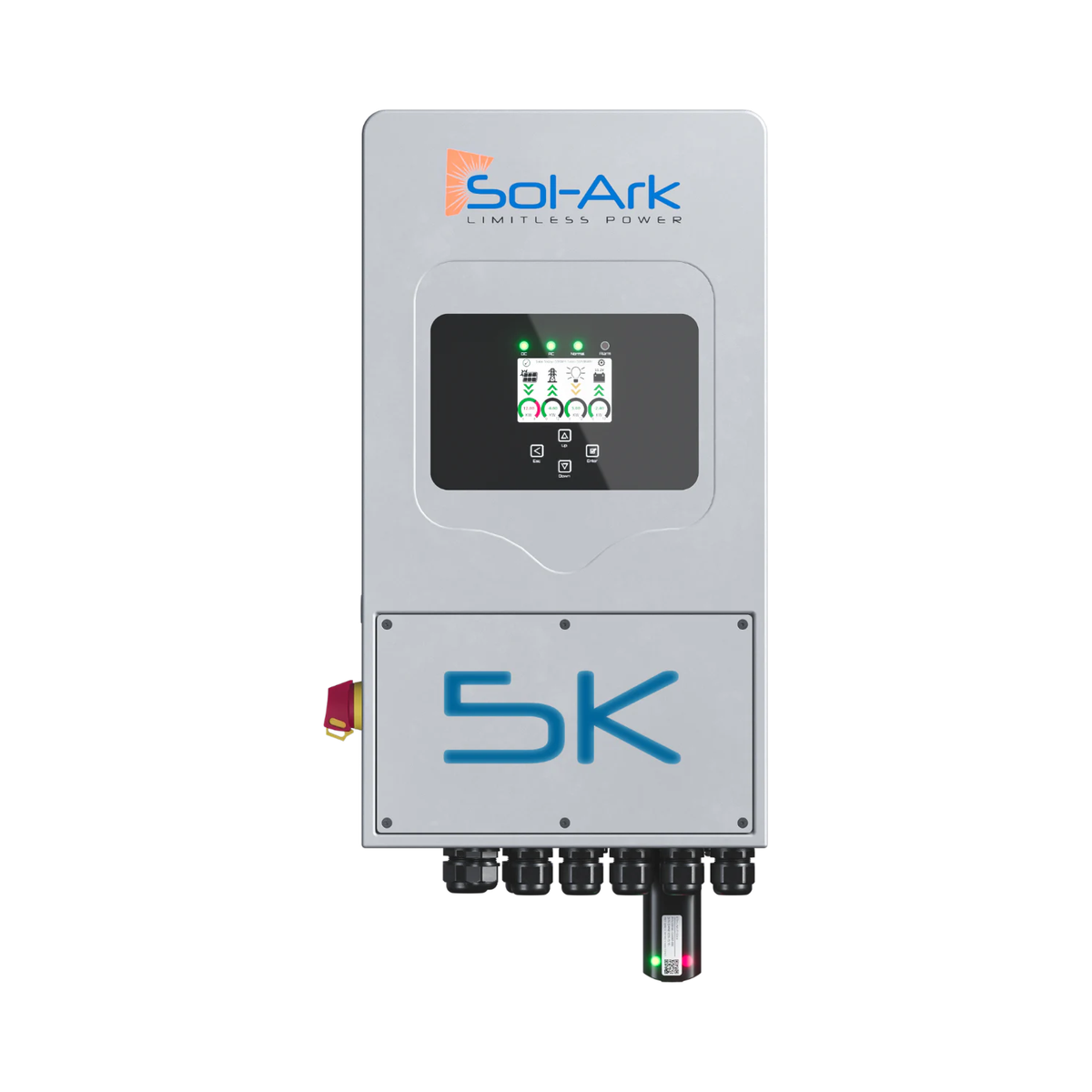

Sol-Ark 5K-1P All-In-One Hybrid Solar Inverter
Take control of your home or light-commercial solar system with the Sol-Ark 5K-1P—an industry-leading, transformer-less hybrid inverter that seamlessly switches between on-grid, off-grid, and backup modes. Engineered for Canadian roofs and garages, it delivers reliable power, advanced monitoring, and maximum solar harvest.
Key Features & Benefits
-
5 kW / 8 kW Split-Phase Output
• 4 800 W continuous at 120 V; 8 000 W continuous at 240 V—perfect for North American homes and small businesses. Sol-Ark -
10.4 kW PV Array Capacity
• Supports up to 10 400 W of solar panels across two independent MPPT trackers (each self-limiting to 20 A, max 26 A) for optimized energy capture. Sol-Ark -
48 V Battery Integration
• Works with 48 V battery banks (40–60 Vdc range) of any chemistry—lead-acid to lithium—for true energy independence. Sol-Ark -
Ultra-Efficient Power Conversion
• Up to 97.6 % inverter efficiency and ultra-fast UPS switching (< 20 ms) keep your essential loads running through grid outages. Practical Preppers -
Zero-Load Draw & Peak Shaving
• Only 60 W standby consumption, plus smart load control to shave peak utility demand and slash your monthly bills. Current Connected -
Robust, Weather-Ready Design
• NEMA 3R-rated enclosure for outdoor/indoor use, built-in breakers, and UL 1741 SA certification for safe, code-compliant installs. Current Connected -
Intuitive Monitoring & Control
• Integrated LCD touchscreen plus RS485, Wi-Fi, and CAN communication make system setup and real-time performance tracking a breeze.
Why Choose Sol-Ark 5K-1P?
-
Hybrid Flexibility: Go off-grid at the flip of a switch, or export excess solar for net-metering savings.
-
Future-Proof: Add batteries or AC-couple with existing on-grid inverters without rewiring.
-
Reliability: Engineered for Canada’s climate, from Alberta winters to Ontario heat.
-
Cost Savings: Peak shaving, low standby draw, and high PV input maximize ROI on your residential solar investment.
Technical Specifications
| Specification | Detail |
|---|---|
| AC Output | 4 800 W @ 120 V / 8 000 W @ 240 V |
| Max PV Input | 10 400 W |
| MPPT Trackers | 2 @ 20 A (self-limiting to 26 A) |
| PV Voltage Range | 150 – 425 Vdc (startup 125 V; max 500 V) |
| Battery Voltage | 48 V nominal (40 – 60 V range) |
| Inverter Efficiency | 97.6 % |
| Zero-Load Consumption | 60 W |
| Communication | LCD touch, RS485, Wi-Fi, CAN |
| Enclosure Rating | NEMA 3R (IP21 indoor) |
| Operating Temp. | –30 °C to 60 °C |
| Dimensions (H×W×D) | 23.6″ × 13″ × 9.3″ (600 × 330 × 235 mm) |
| Weight | 53 lb (24 kg) |
| Certifications | UL 1741 SA, CSA, CE |
| Warranty | 10 years |
