Inverter Specifications
| SKU | SA-18K-2P |
|---|---|
| Operating type | Grid-tie, Off-grid, Hybrid |
| Inverter function | Inverter/charger |
| Continuous AC output power (W) | 18000.0 |
| AC output rating conditions | 18000 W at 120/240 V; 15600 W at 120/208 V. |
| AC output voltage (V) | 120/240, 120/208 |
| AC output frequency (Hz) | 50, 60 |
| AC phase configuration | Split-phase |
Show all specifications (62)Show fewer specifications
| Battery support | Optional |
|---|---|
| Nominal battery voltage (V) | 48 |
| Min battery voltage (V) | 43.0 |
| Max battery voltage (V) | 59.0 |
| Outage backup capability | Yes |
| Backup/EPS output power (W) | 18000.0 |
| Backup output voltage (V) | 120/240, 120/208 |
| Backup transfer time (ms) | 5.0 |
| Surge output power (W) | 36000.0 |
| Surge duration (s) | 10.0 |
| Surge rating conditions | 36000 W for 10 s at 120/240 V; 31200 W at 120/208 V. |
| Solar PV input supported | Yes |
| Max recommended PV array power (W) | 32400.0 |
| Max DC input voltage (V) | 500.0 |
| PV startup voltage (V) | 125.0 |
| Min MPPT voltage (V) | 150.0 |
| Max MPPT voltage (V) | 425.0 |
| Independent MPPT count | 3 |
| PV strings per tracker | 2 |
| Max PV operating current (A) | 36.0 |
| PV operating-current limit basis | Per tracker |
| Max PV short-circuit current (A) | 54.0 |
| PV short-circuit current limit basis | Per tracker |
| Solar battery charging supported | Yes |
| Max combined battery charging current (A) | 350.0 |
| Generator input supported | Yes |
| AC pass-through current (A) | 200.0 |
| Export control supported | Yes |
| Peak efficiency (%) | 97.6 |
| Weighted efficiency (%) | 97.0 |
| Weighted efficiency standard | CEC |
| Idle/no-load consumption (W) | 110.0 |
| Standard warranty (years) | 10.0 |
| Parallel operation supported | Yes |
| Max parallel units | 12 |
| Display | LCD |
| Communication interfaces | CAN bus, RS485 |
| Wi-Fi availability | Included accessory |
| Ethernet availability | Included accessory |
| Monitoring app or portal | MySolArk mobile and web apps |
| Length (mm) | 306.0 |
| Width (mm) | 494.0 |
| Height (mm) | 863.0 |
| Weight (kg) | 62.14 |
| Mounting format | Wall-mounted |
| Installation environment | Indoor/outdoor |
| Enclosure rating | IP65 / NEMA 3R |
| Min operating temperature (°C) | -40.0 |
| Max operating temperature (°C) | 60.0 |
| Temperature and altitude derating | Output derates above 45°C. |
| Cooling method | Fan-cooled |
| Noise measurement conditions | <50 dB at 25°C. |
| Certifications | UL 1741, CSA C22.2 No. 107.1 |
| MPN | 18K-2P-LV |
Description
SKU: SA-18K-2P
Mfg. SKU: SA-18K-2P

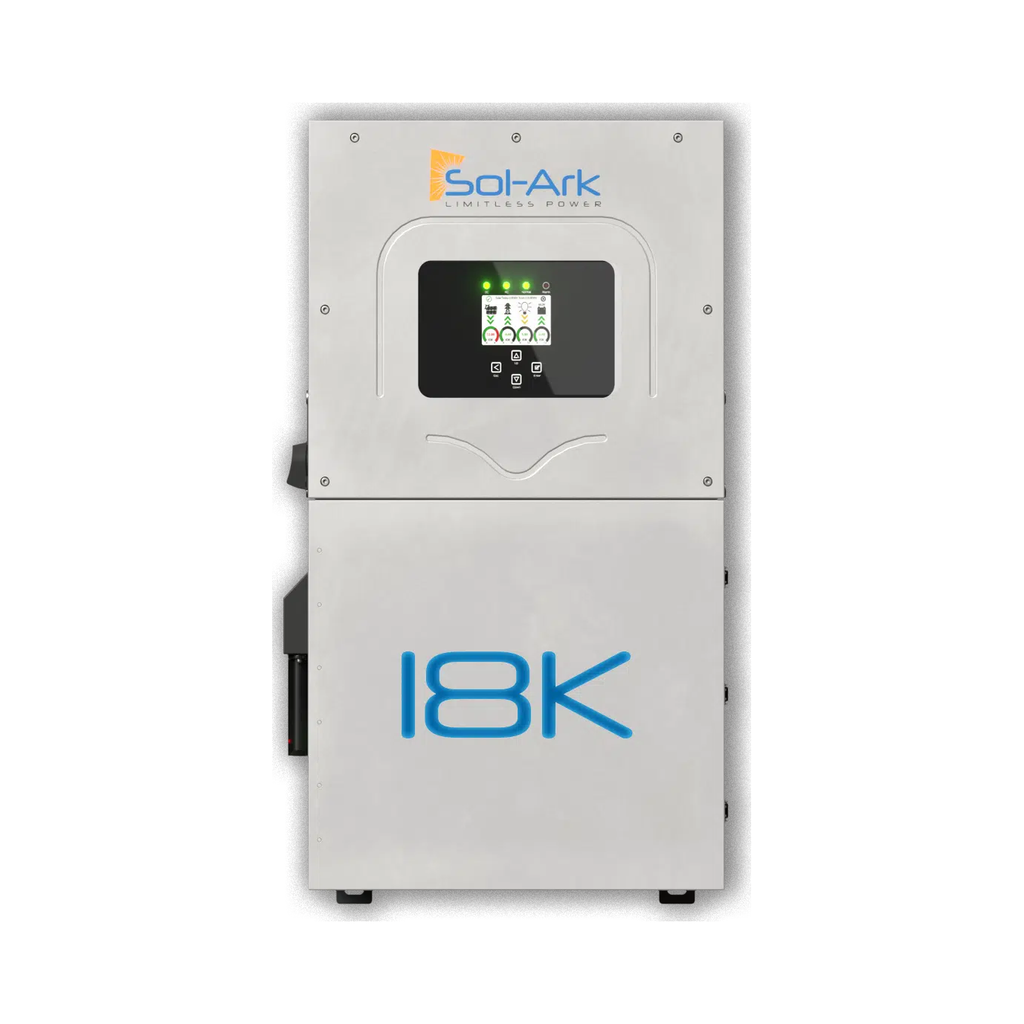

Sol-Ark 18K-2P-N All-In-One Hybrid Solar Inverter
Engineered Performance Overview (Rewritten)
Engineered for demanding off-grid, grid-interactive, and backup power applications, the Limitless 18K-2P-LV delivers industry-leading 18 kW continuous power from batteries to support large residential loads with confidence. With a 36 kW surge rating for 10 seconds, the system easily starts HVAC systems, pumps, compressors, and other high-inrush equipment during grid outages.
Designed for maximum solar utilization, the 18K-2P-LV supports up to 32.4 kW of PV input and 28.8 kW usable solar, with the ability to accept 28.8 kW of AC-coupled input—making it one of the highest-capacity residential hybrid inverters in its class. Three MPPT channels with high current handling enable flexible string design and optimal harvest across complex roof layouts.
Running North-American engineered firmware with data residency maintained within the U.S., the Limitless 18K-2P-LV is built for reliability, compliance, and long-term ownership, backed by a standard 10-year warranty.
Key Features & Benefits (Corrected)
-
18 000 W Continuous Output at 120/240 V split-phase
Designed for whole-home backup, large residences, and light commercial applications. -
36 000 W Surge Power (10 seconds)
Confidently starts motors, HVAC units, and inductive loads during grid outages. -
High-Capacity Solar Input
Supports up to 32.4 kW PV, 28.8 kW usable DC, and 28.8 kW AC-coupled solar for maximum production flexibility. -
Three MPPT Channels (36 A per MPPT)
Wide 150–425 V MPPT operating range with high current handling for advanced string configurations. -
Ultra-High Grid Passthrough Capability
200 A integrated AC output breaker allows full service-entrance backup without external gear. -
48 V Battery Integration (High-Current)
Supports 350 A continuous charge/discharge, compatible with lithium or lead-acid banks from 50–9,900 Ah. -
Scalable Architecture
Parallel up to 12 units for large residential or multi-building systems. -
Outdoor-Rated, Canadian-Ready Design
IP65 / NEMA 3R enclosure, operating from –40 °C to +60 °C (derates above 45 °C). -
Advanced Integrated Protections
DC disconnect, PV AFCI (UL1699B), ground-fault detection (NEC 690.5), surge protection (DC Type II / AC Type I), and rapid shutdown compliance. -
Intuitive Monitoring & Communications
CANBus & RS485 (Modbus) battery communications with advanced system monitoring support. -
High Efficiency, Quiet Operation
Up to 97.6% peak efficiency, < 50 dB noise for residential-friendly installs. -
10-Year Standard Warranty
Long-term protection and peace of mind.
Why Choose the Limitless 18K-2P-LV?
The Limitless 18K-2P-LV is a true high-power residential hybrid inverter built for homeowners and system designers who refuse to compromise. With exceptional surge capability, massive solar input support, high-current battery performance, and full service-entrance passthrough, it excels in backup-critical homes, rural properties, farms, and grid-constrained installations.
Its stackable design, comprehensive certifications, and extreme-climate readiness make it a top-tier choice for Canadian solar + storage systems, whether your goal is energy independence, outage resilience, or future-proof expansion.
Technical Specifications (Corrected)
| Specification | Detail |
|---|---|
| Maximum Continuous Power | 18 000 W @ 120/240 V |
| Surge Power | 36 000 W (10 s) |
| Max Supported PV Power | 32 400 W |
| Max Usable PV Power | 28 800 W |
| Max AC-Coupled Input | 28 800 W |
| MPPT Configuration | 3 MPPT / 2 Inputs |
| MPPT Voltage Range | 150–425 V (Startup 125 V) |
| Max DC Input Voltage | 500 V |
| Max Input Current per MPPT | 36 A |
| Battery Voltage | 48 V nominal (41–63 V) |
| Battery Charge / Discharge | 350 A continuous |
| Max Grid Passthrough Current | 200 A |
| Efficiency | 97.0 % CEC / 97.6 % max |
| Stackable | Yes, up to 12 units |
| Enclosure Rating | IP65 / NEMA 3R |
| Operating Temperature | –40 °C to +60 °C (derate >45 °C) |
| Noise Emission | < 50 dB |
| Dimensions (H×W×D) | 863 × 464 × 282 mm (34 × 18.2 × 11.1 in) |
| Weight | 62.14 kg (137 lb) |
| Warranty | 10 years |
