Description
SKU: SOK-BATT-CAB-4
SOK-BATT-CAB-4 48 V / 100 Ah Rack-Mount Battery Cabinet
Outdoor-Rated Enclosure | 275 A Continuous Busbar | 20 kWh Storage
Securely house and parallel-connect four 48 V × 100 Ah server-rack batteries (20 kWh total) in one weather-resistant cabinet. The integrated 275 A copper busbar delivers up to 13.2 kW continuous—matching a 12 kW inverter’s draw with headroom for surge loads—making it ideal for Canada’s off-grid cabins, telecom sites, and backup power systems.
Key Features & Benefits
-
20 kWh Capacity
Accommodates up to four 48 V, 100 Ah rack-mount batteries for robust off-grid or backup installations. -
275 A Continuous Busbar
Pre-wired copper busbar ties batteries in parallel, supporting 13.2 kW at 48 V without derating. -
Outdoor-Rated Protection
Powder-coated steel enclosure, gasket-sealed door, and lockable handle resist rain, dust, and UV—perfect for pole or pad mounting. -
Service-Friendly Design

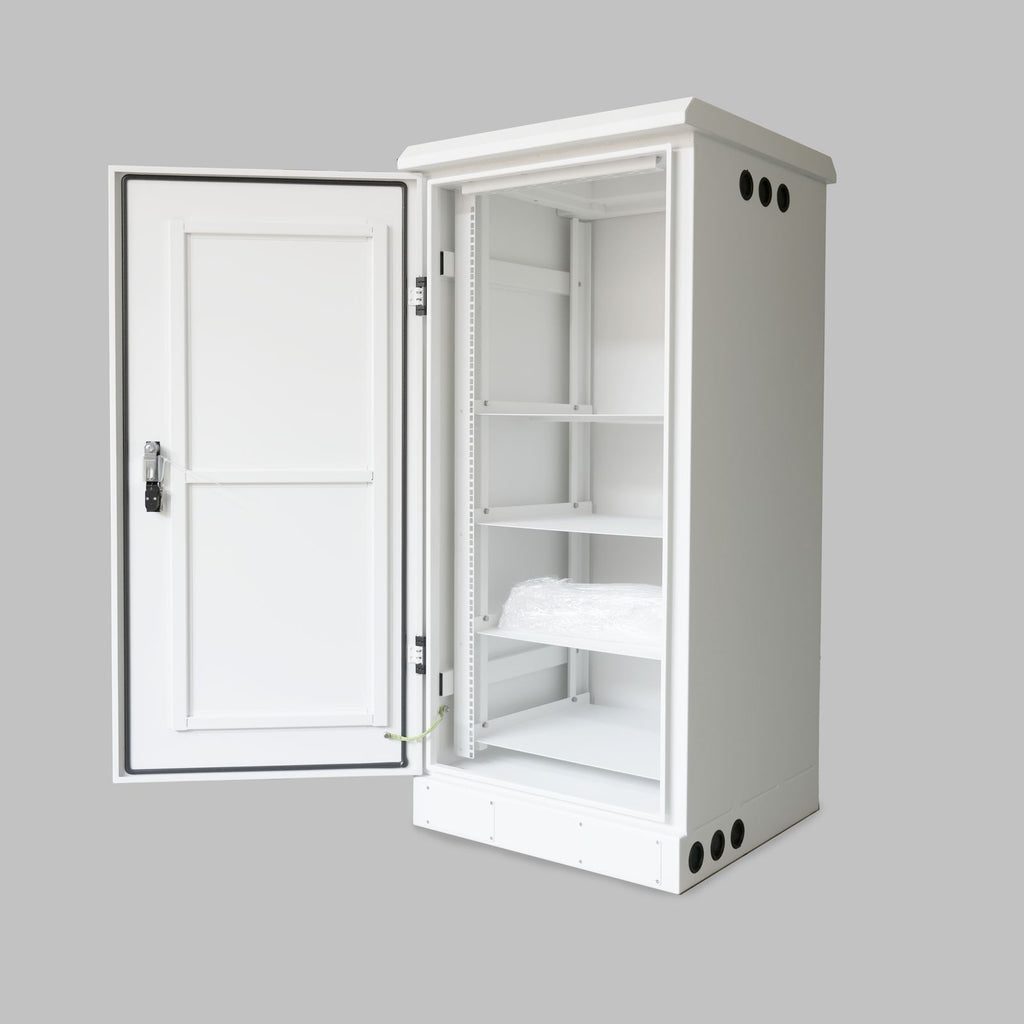

Removable shelves and lock-ready base simplify maintenance; tool-free access speeds battery swaps. -
Six Cable-Entry Knockouts
Three 1½″ ports at top and three at bottom for DC, communication, and conduit—no field drilling required. -
Built for Canadian Conditions
Operates reliably from –20 °C to +50 °C; floor-standing design for basements, sheds, or outdoor installations.
Technical Specifications
| Specification | Details |
|---|---|
| SKU | SOK-BATT-CAB-4 |
| Battery Capacity | Up to 4 × 48 V × 100 Ah (20 kWh total) |
| Busbar Rating | 275 A continuous (≈ 13.2 kW @ 48 V) |
| Cable-Entry Knockouts | 6 × 1½″ (38 mm): 3 top, 3 bottom |
| Enclosure Rating | Outdoor-rated powder-coated steel |
| Construction | Gasket-sealed, lockable door; removable internal shelves |
| Mounting | Floor-standing; optional wall or pole brackets available |
| Operating Temperature | –20 °C to +50 °C |

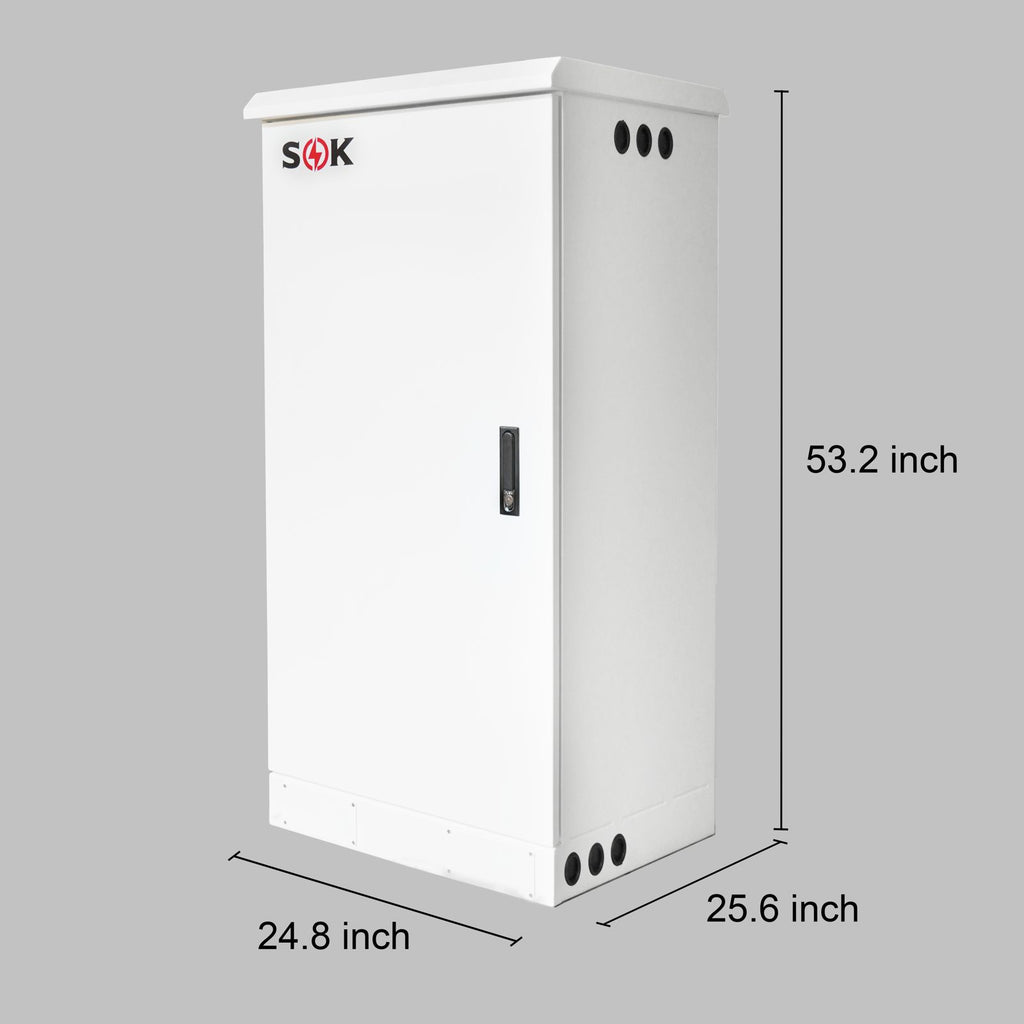

| Dimensions (W × D × H) | 26″ × 25″ × 55″ (660 × 635 × 1 397 mm) |
| Weight (Empty) | 265 lb (120 kg) |
With coast-to-coast shipping and Canadian-based expert support, the SOK-BATT-CAB-4 is the premier outdoor battery cabinet for your 48 V energy storage system. Add to Cart today!
