Battery Specifications
| SKU: | SD-HDC12-30 |
|---|---|
| Manufacturer | SunDale Canada |
| Battery chemistry | Lead-carbon |
| Nominal voltage | 12.0 V |
| Capacity | 30.0 Ah |
| Energy capacity | 0.36 kWh |
| Peak discharge | 300.0 A |
| Peak discharge duration | 5.0 seconds |
Show all specifications (15) Show fewer specifications
| Dimensions (L × W × H) | 7.71 × 5.11 × 6.57 in |
|---|---|
| Weight | 22.48 lb |
| Manufacturer’s Warranty | 2 years |
| Max charging current | 30.0 A |
| Terminal type | M6 |
| Charging temperature range | -30.0 to 60.0 °C |
| Discharging temperature range | -30.0 to 60.0 °C |

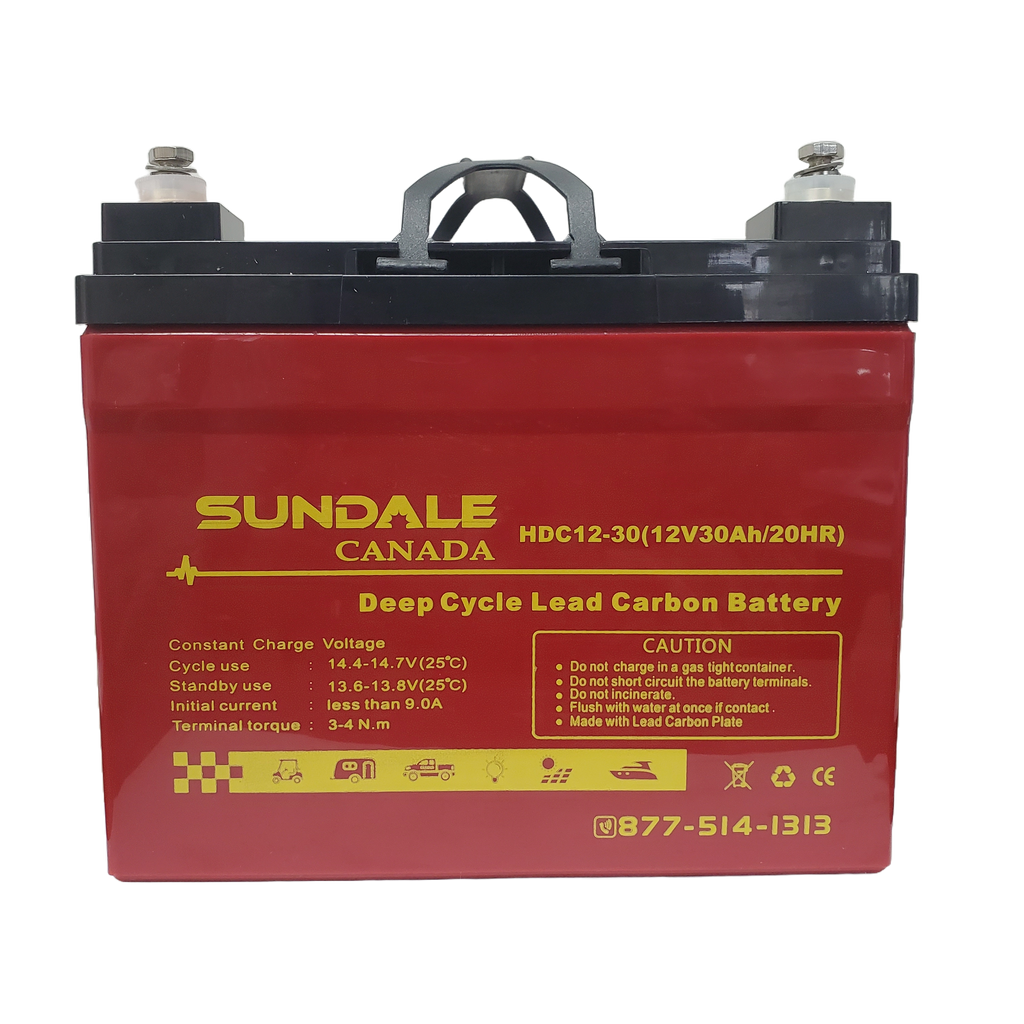

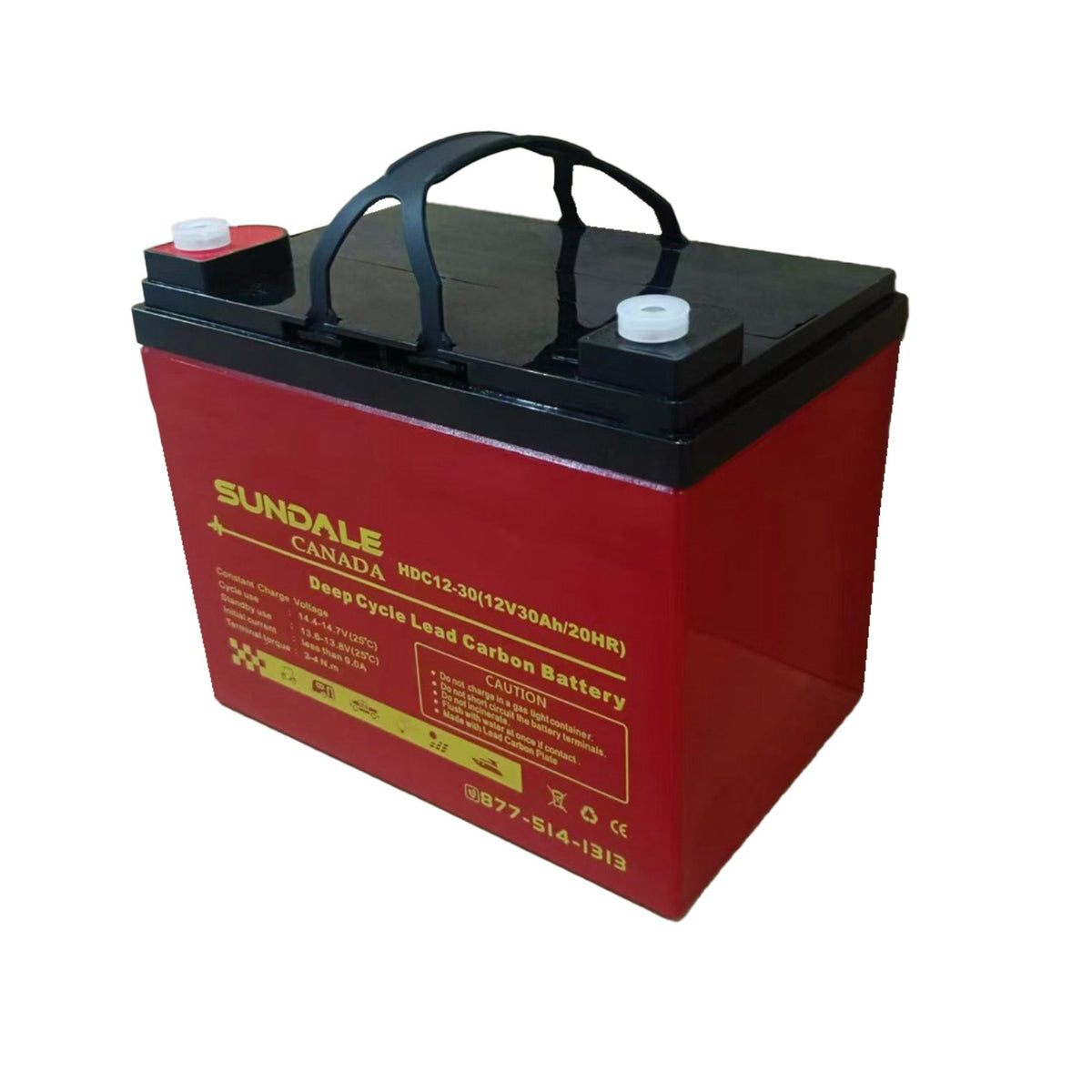

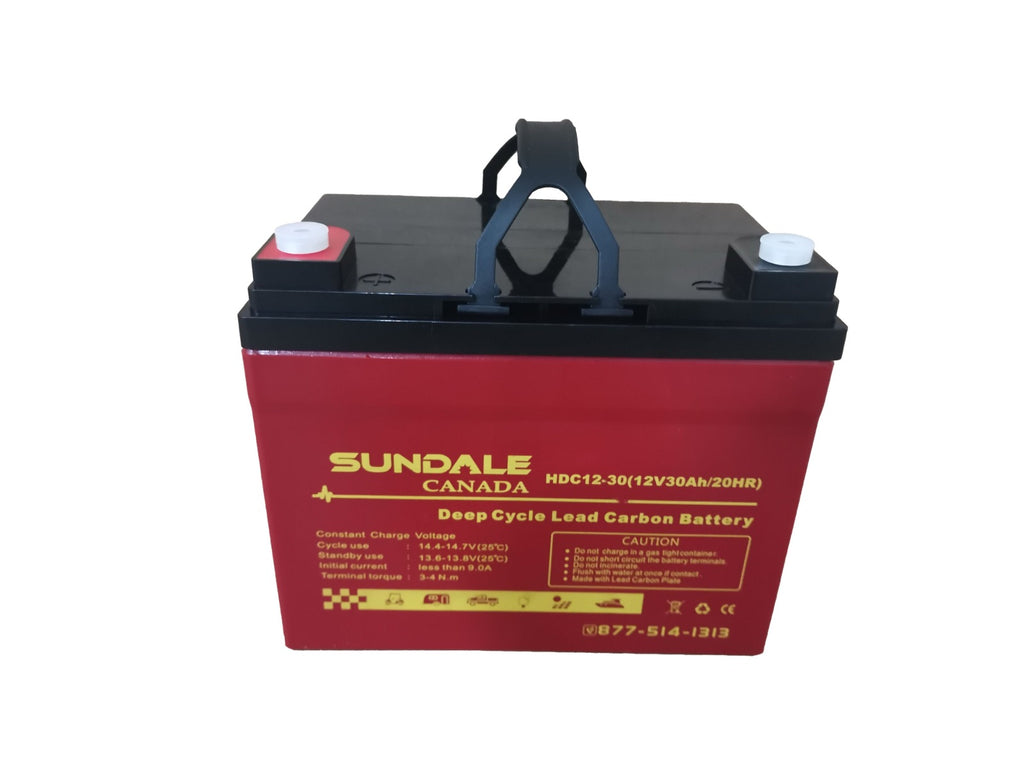

SD-HDC12-30 — Model details
Description

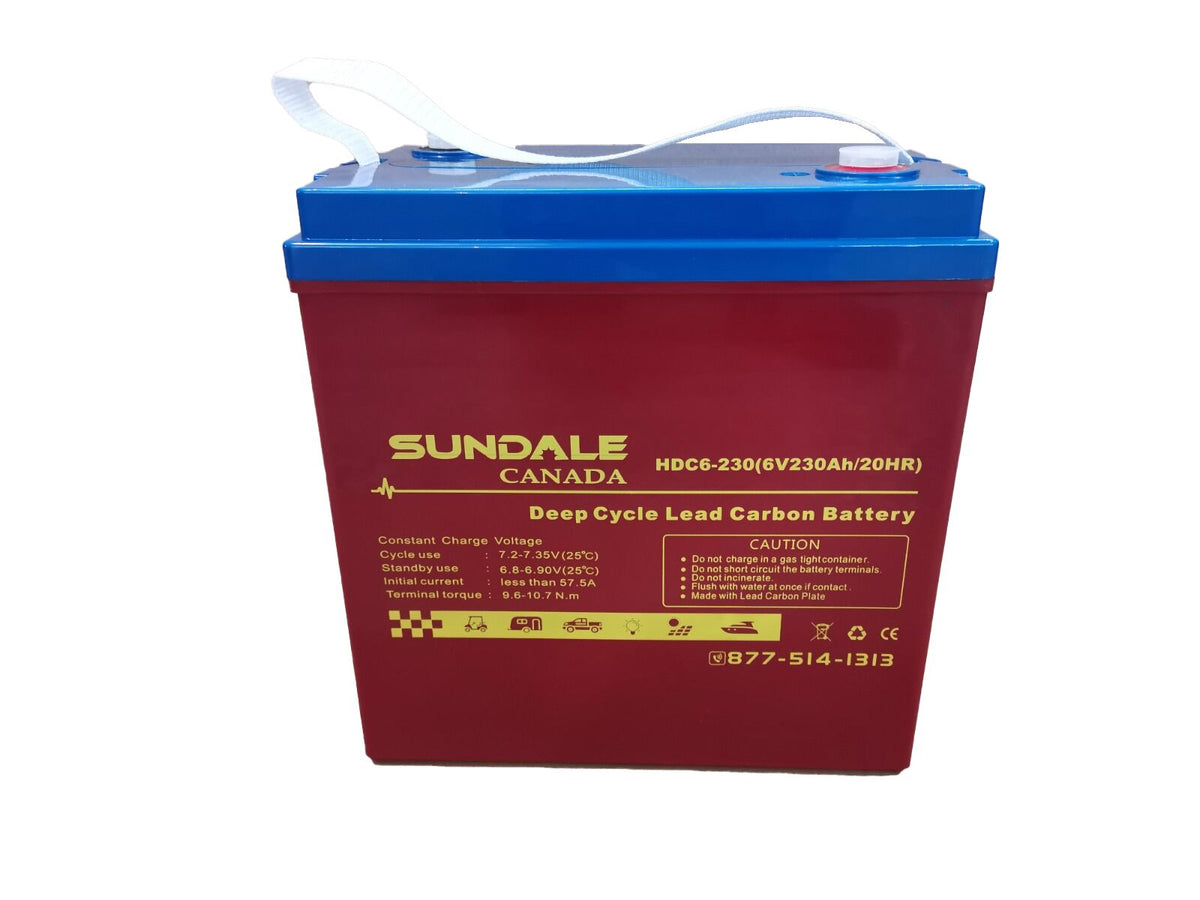

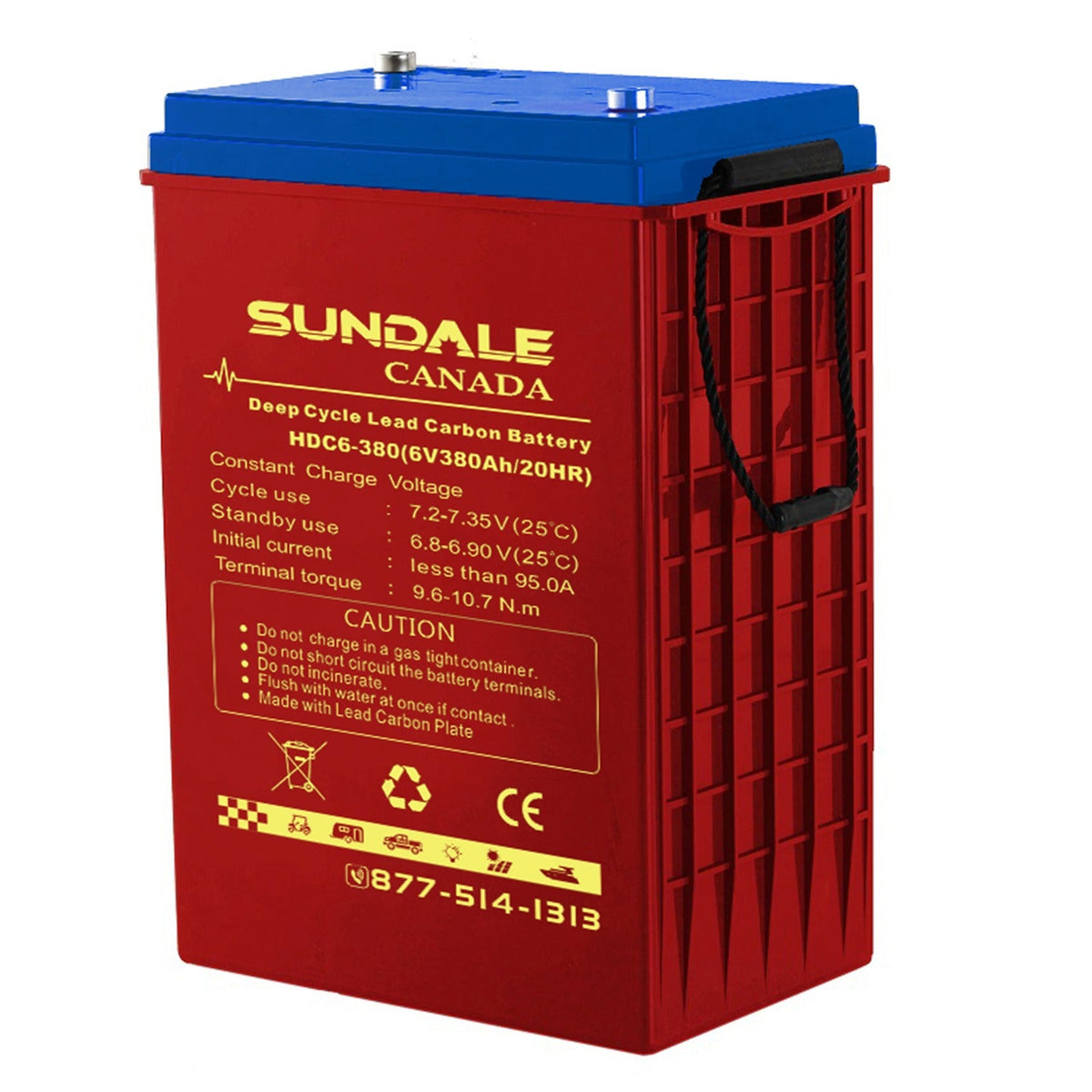

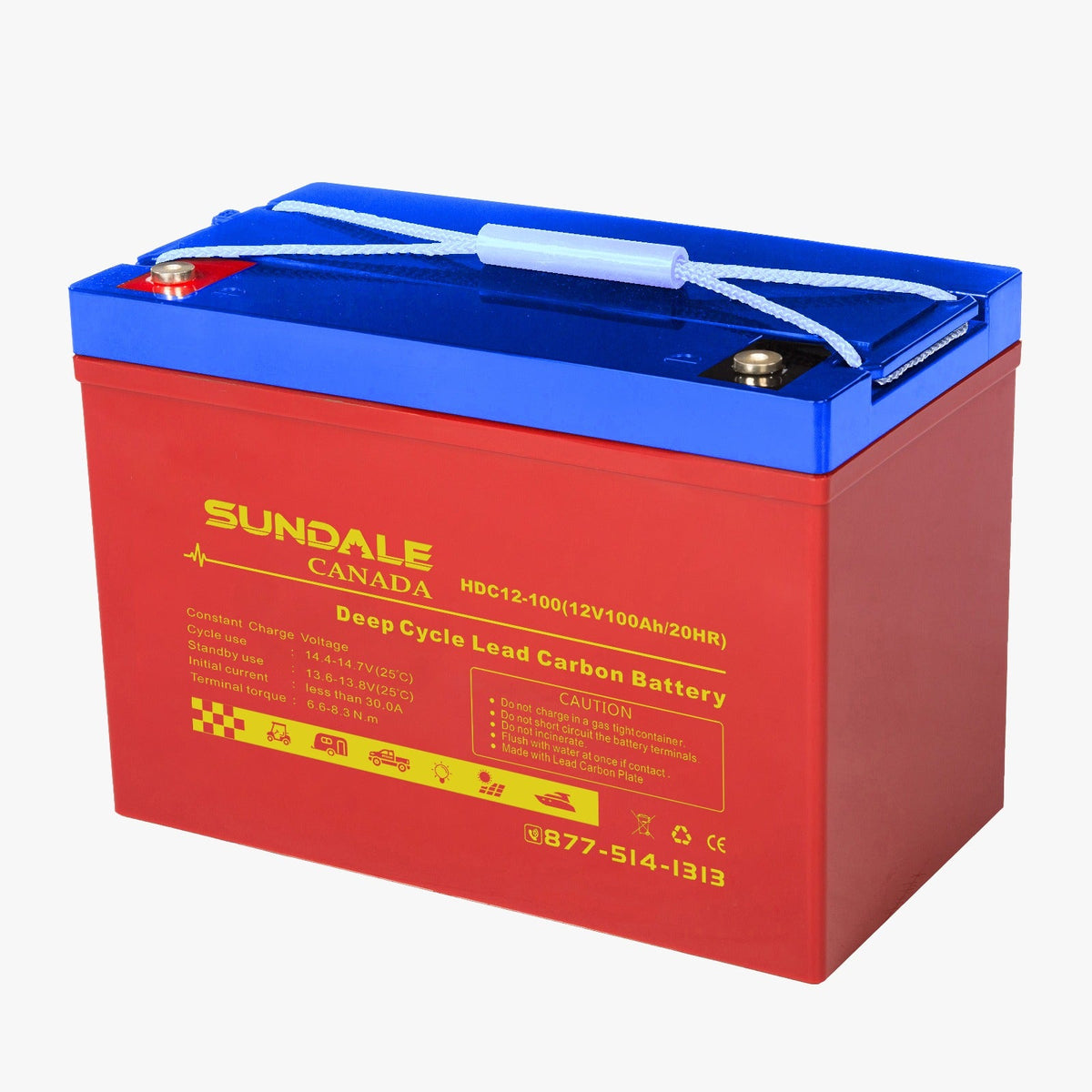

Choose a SunDale Canada lead-carbon battery for solar storage, backup power or a compatible deep-cycle battery bank. Select 12V 30Ah, 12V 100Ah, 6V 230Ah or 6V 380Ah to match your system voltage, capacity and available space.
Each model has its own dimensions, weight, terminals and charging limits. Capacities are nominal 20-hour ratings; delivered capacity depends on discharge rate. The datasheets list 3,000 cycles at 50% depth of discharge, with cycle life varying by usage. Nominal energy is not usable energy.
Use matching models when assembling a bank and a charger configured for the selected battery. Recommended charging current is lower than the listed maximum; sustained high charging current can shorten battery life. The 12V models carry a two-year manufacturer warranty and the 6V models a three-year warranty, subject to applicable terms.
