SKU: S5-NH 1.5
MFG SKU: S-5-NH 1.5
Available in Kits of 4 Brackets

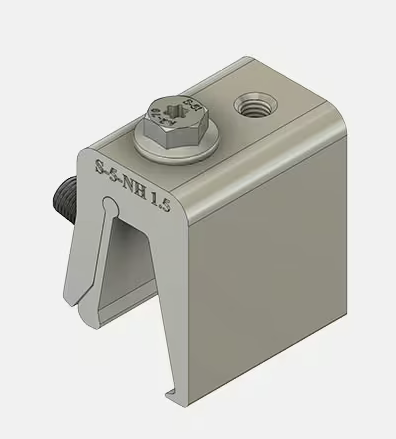

Designed specifically for 1-1/2” nail strip profiles with a wider horizontal dimension (> 0.475” and ≤ 0.800”), the S-5-NH 1.5 (“NH” stands for nail strip hinge) is an ideal mounting solution for VicWest Prestige, NewTech FF150 and similarly dimensioned profiles.
The innovative insert is a “hinge” design and features a toe to engage the female portion of the panel. It forms to the shape of the seam, preventing damage at the point of attachment, while offering you optimal holding strength. The hinge insert is also reversible to allow for proper fit on both wide and medium-width profiles.
For ease of installation, the T-30 Torx setscrews are angled upward to facilitate tool insertion. The hinged insert is also staked at one end to facilitate installation.
Minis Available
The NH 1.5 Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.
All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.
For nail strip profiles with 1” seam height, see “S-5-N.” See also the S-5-N 1.5 for nail flange metal roof profiles with a seam base dimension ≤ .50” (12.7 mm).
Be sure to check out the many other features on the clamp overview page.
