Battery Specifications
| SKU: | REN-XCELLENT-PLUS-16kWh |
|---|---|
| Manufacturer | Renon |
| Battery chemistry | LiFePO₄ |
| Nominal voltage | 51.2 V |
| Capacity | 314.0 Ah |
| Energy capacity | 16.0 kWh |
| Max continuous discharge | 200.0 A |
Show all specifications (10) Show fewer specifications
| Dimensions (L × W × H) | 22.047244 × 8.267717 × 34.645669 in |
|---|---|
| Weight | 350.534997 lb |
| Manufacturer’s Warranty | 10 years |
Description

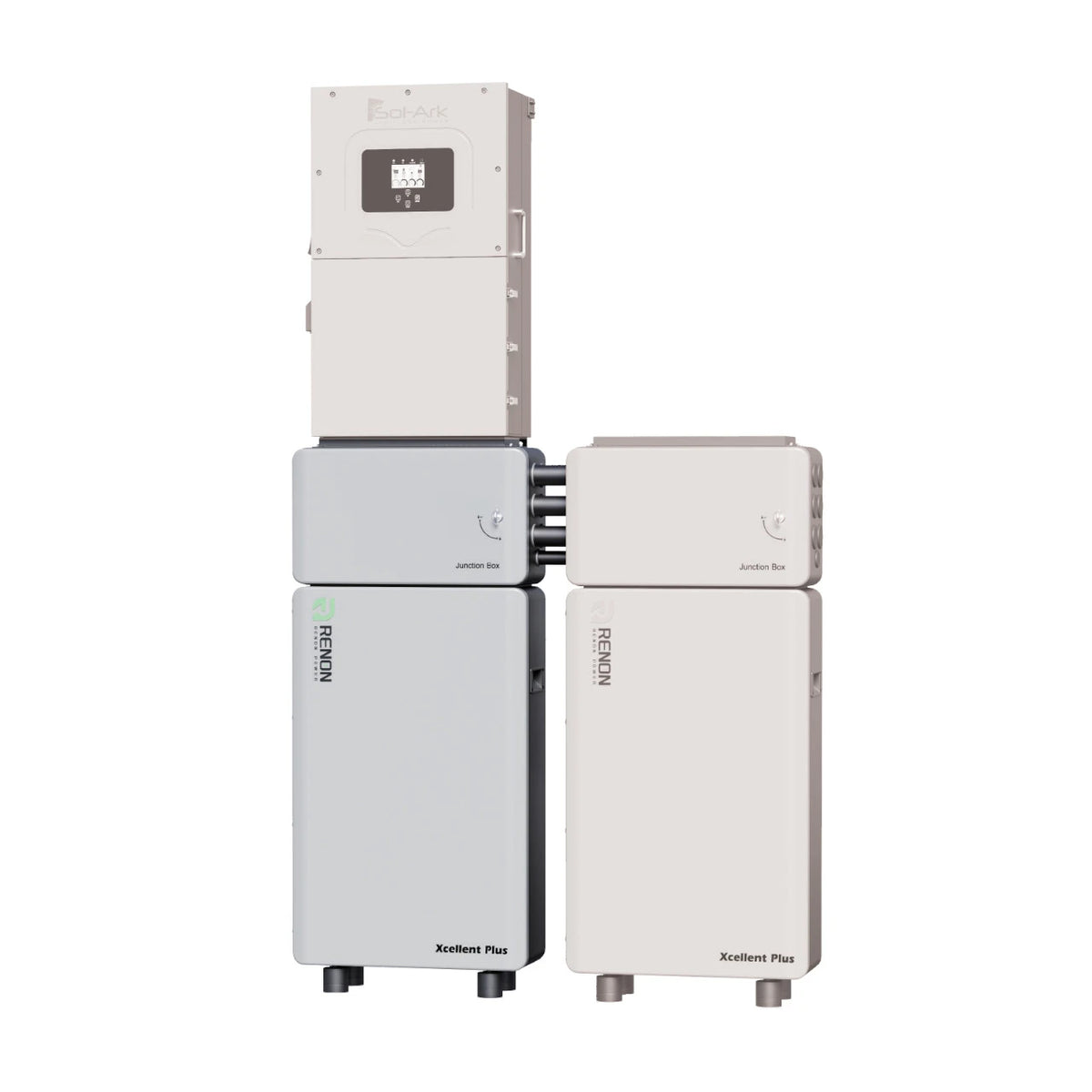

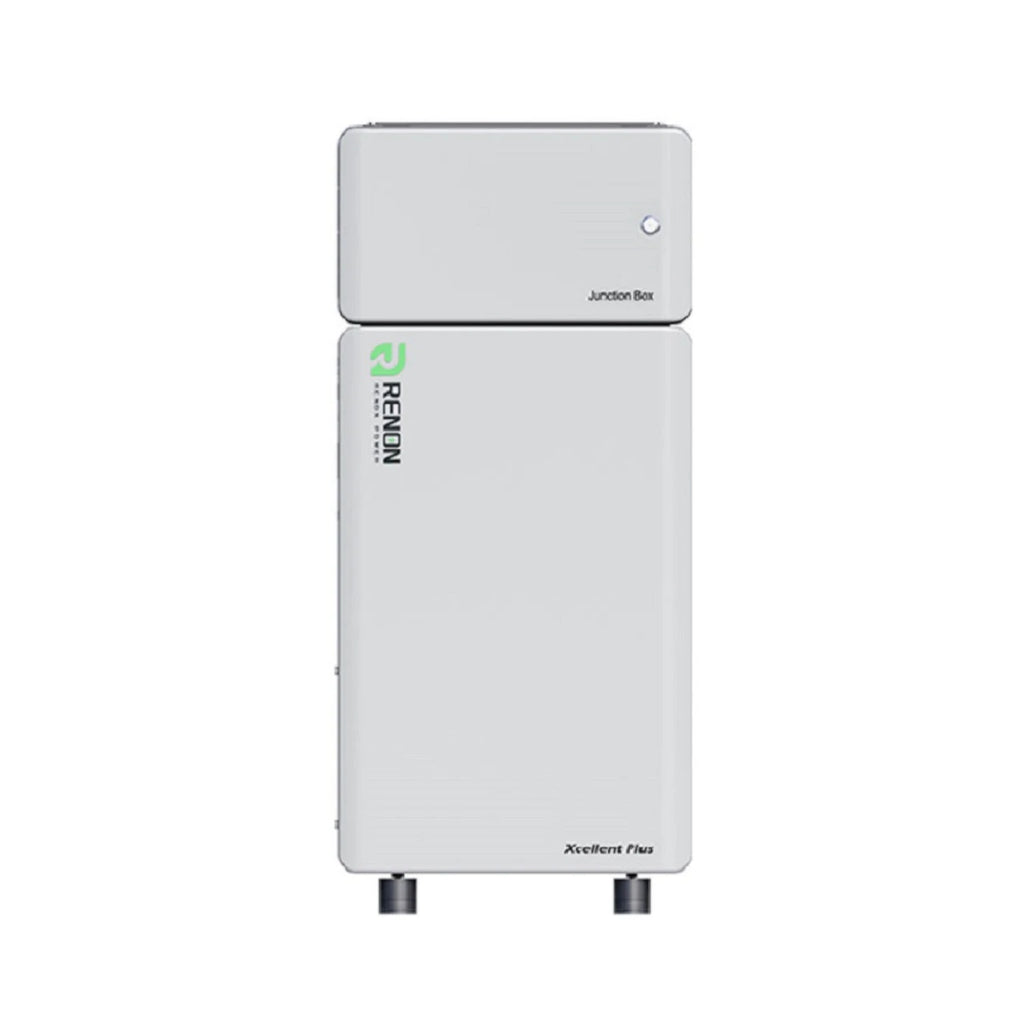

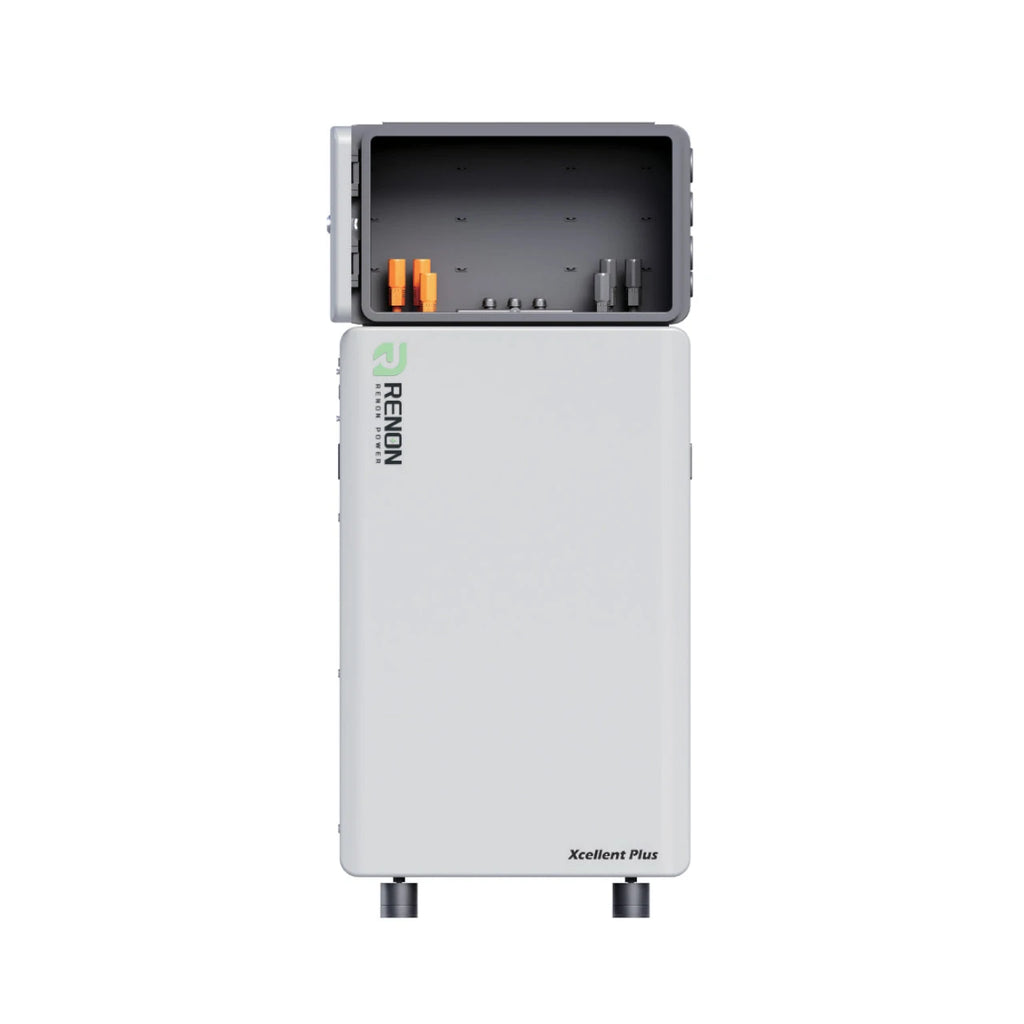

Renon Xcellent Plus offers 16kWh of nominal LiFePO4 storage for compatible residential energy systems. The 51.2V battery supports solar self-consumption, peak shifting and backup power when installed with a suitable inverter and system controls.
The R-XC016161-US datasheet lists 10.2kW output and 200A max operating current. Wall or floor mounting is supported, with an IP65 enclosure and RS485/CAN communication. Up to 31 matching systems may operate in parallel subject to design requirements. The battery enclosure measures 560 × 210 × 880mm and weighs approximately 159kg; junction-box and packaging dimensions are separate. Heating is model-dependent and is not assumed for this listing. Manufacturer warranty is 10 years, subject to terms. Confirm the exact unit revision and installation requirements.
