Battery Specifications
| SKU: | PYT-V5Plus-LFP-5.12 |
|---|---|
| Manufacturer | Pytes |
| Battery chemistry | LiFePO₄ |
| Nominal voltage | 51.2 V |
| Capacity | 100.0 Ah |
| Energy capacity | 5.12 kWh |
| Max continuous discharge | 75.0 A |
| Max charging current | 75.0 A |
Show all specifications (11) Show fewer specifications
| Dimensions (L × W × H) | 19.055118 × 22.76378 × 5.511811 in |
|---|---|
| Weight | 99.95759 lb |
| Manufacturer’s Warranty | 10 years |
Description

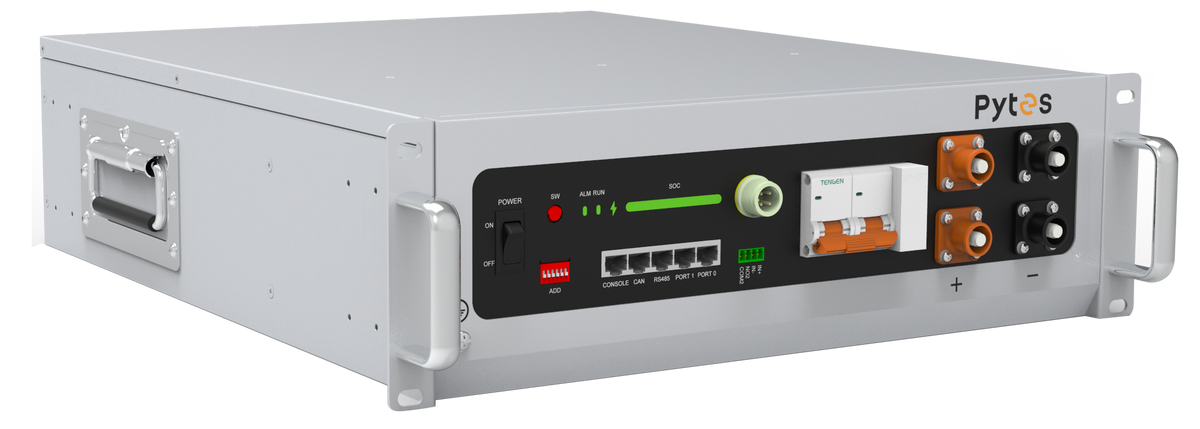

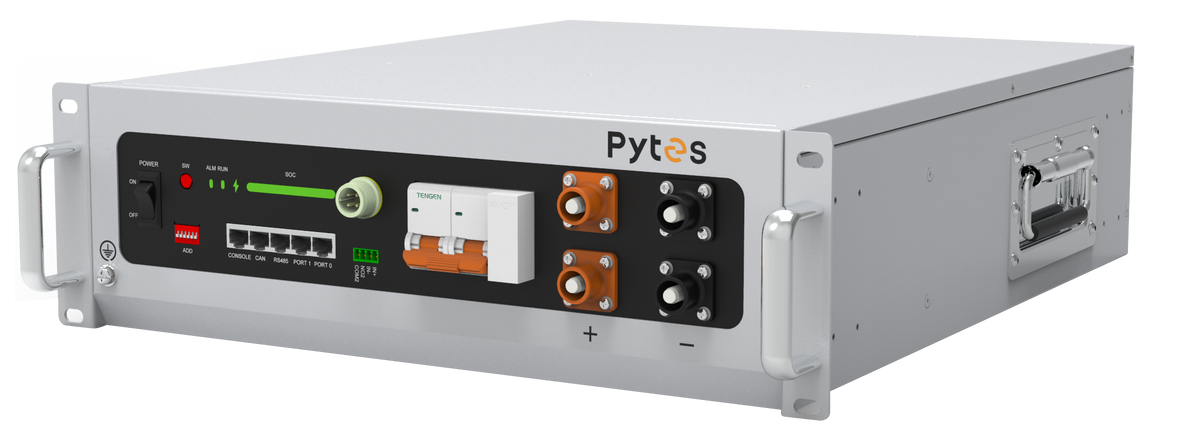

Pytes V5α Plus provides 5.12kWh of nominal LiFePO4 storage at 51.2V and 100Ah for compatible residential and small-business energy systems. CAN/RS485 communication supports integration with approved equipment.

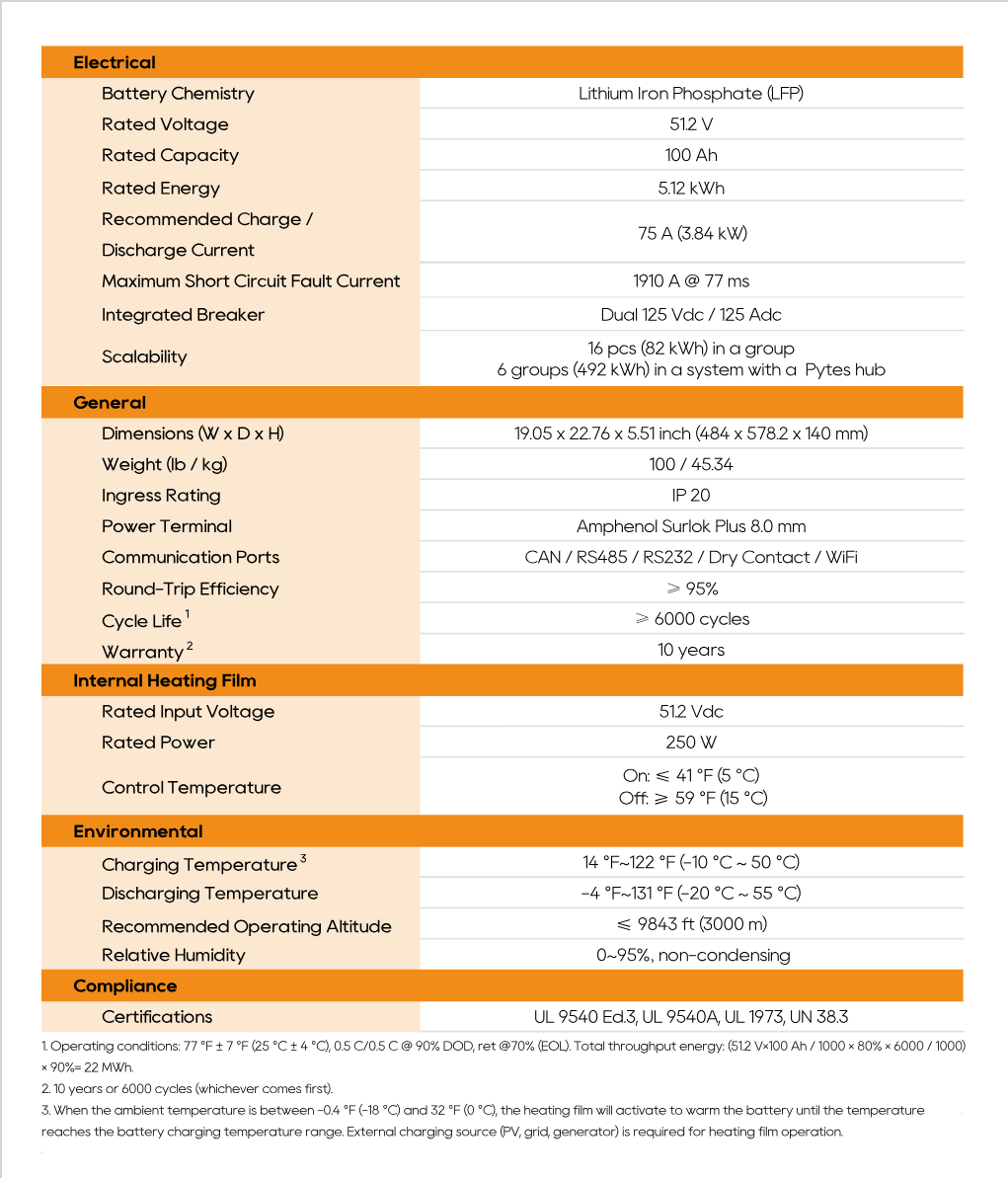

The datasheet specifies 75A max continuous charging and discharging at cell temperatures of 10–40°C; current derates outside that range. Each unit weighs 45.34kg and measures 484 × 578.2 × 140mm. Matching modules can be expanded under the manufacturer’s system-design rules. Wi-Fi monitoring and heating depend on the supplied configuration. The manufacturer lists a 10-year warranty, subject to its terms. Confirm the exact battery revision, accessories and inverter compatibility before installation.
