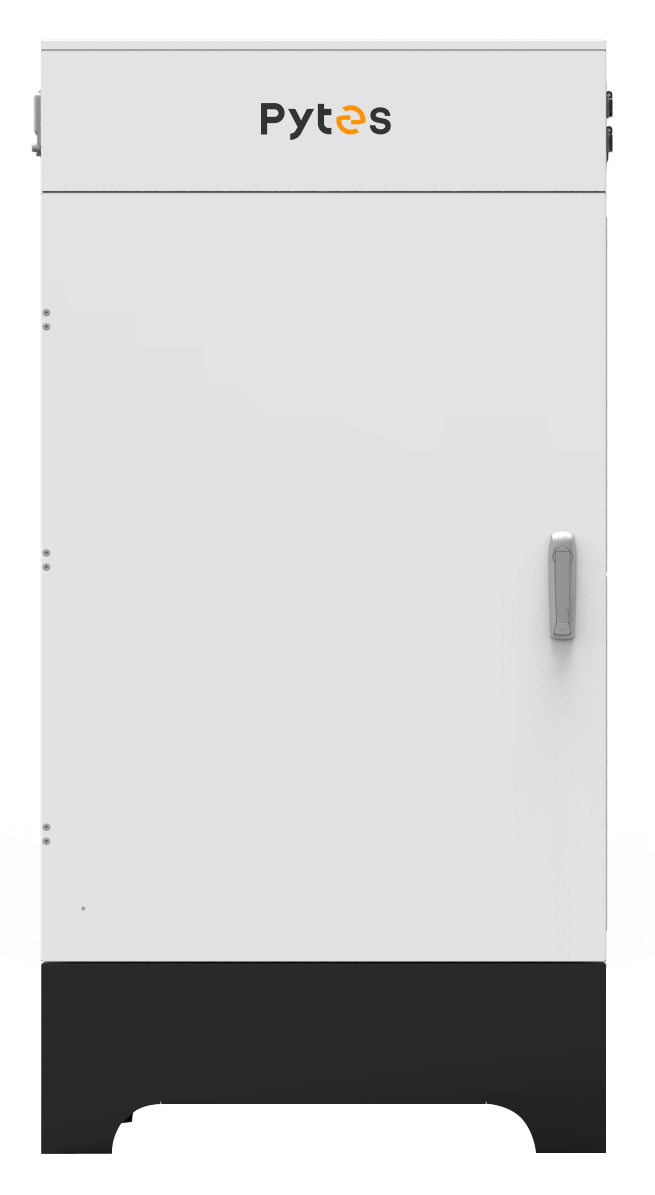

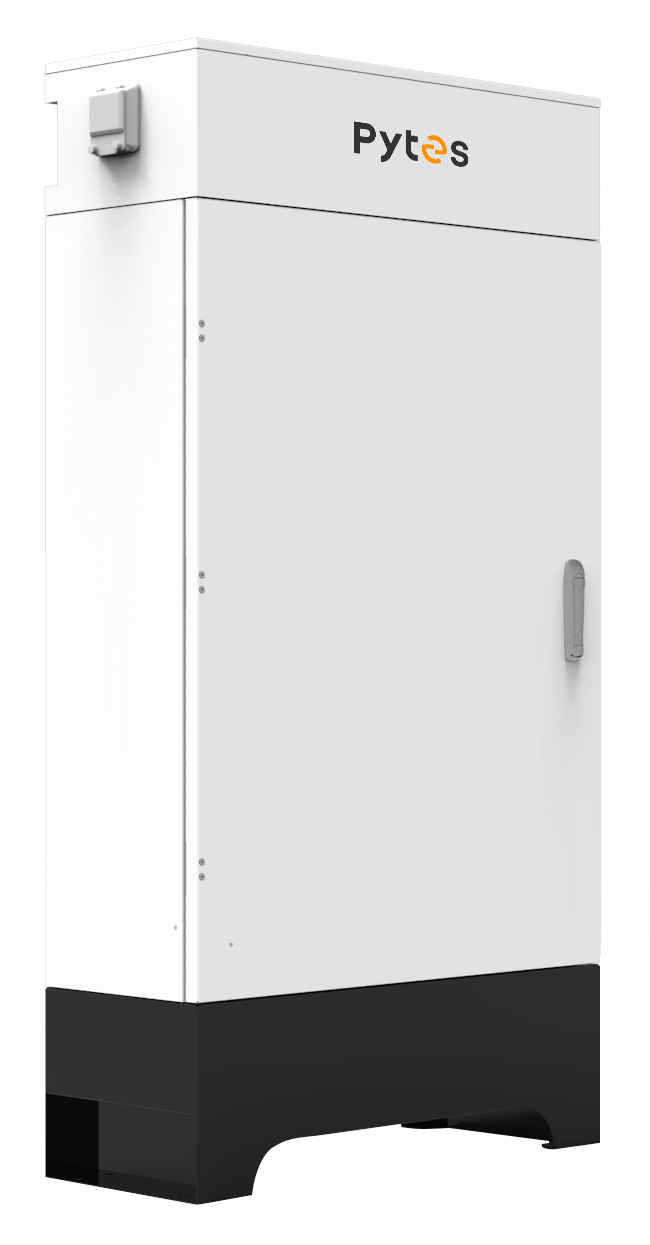

PYTES R-BOX-OC (IV) Modular Battery Cabinet
Overview

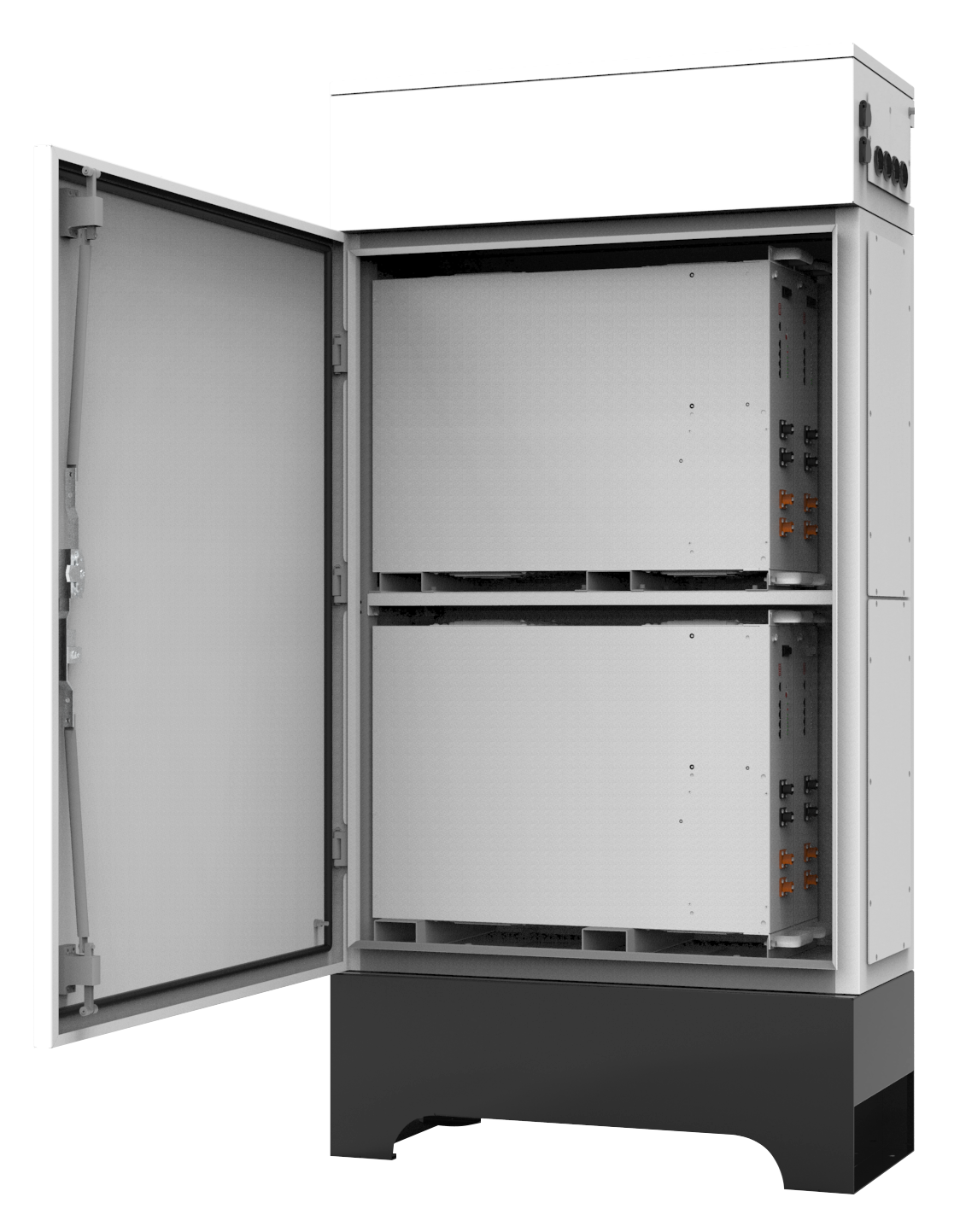

Floor-mounted cabinet supporting up to 4 × E-Box 48100R LiFePO₄ modules for 20 kWh of scalable energy storage
IP55-rated SGCC galvanized-steel enclosure built to withstand Canadian dust, rain, snow and UV
Modular, space-efficient design simplifies future capacity expansions and reduces balance-of-system complexity
Key Features
Integrated Protection: Built-in positive/negative busbars and DC breaker blocks eliminate external combiner hardware
All-Weather Durability: IP55 rating and galvanized-steel construction ensure reliable operation from B.C. coastlines to Yukon winters
Silent, Maintenance-Free Cooling: Natural-convection airflow (no fans) minimizes noise and servicing
Plug-and-Play Installation: Pre-wired busbars, breaker blocks and included floor-mount template speed up setup
Universal Inverter Compatibility: Works seamlessly with most string, hybrid and off-grid inverters
Mechanical Specifications
Load Capacity: 4 × E-Box 48100R modules (4.8 kWh each) = 19.2 kWh (~20 kWh)
Structure: Integrated busbar & DC circuit-breaker blocks
Enclosure Rating: IP55
Material: SGCC (galvanized steel)
Cooling Method: Natural convection (fan-free)
Mounting: Secure floor-mount design
Dimensions (L × W × H): 31.5″ × 13.0″ × 62.0″ (800 × 330 × 1575 mm)
Weight: 176.4 lb (80 kg)
Why It’s Ideal for Canadian Energy Storage
Maximize Rebates & Grants: Eligible for Canada Greener Homes Grant and provincial storage incentives (Ontario, Alberta, B.C., Québec)
Lower Balance-of-System Costs: Integrated busbars & breakers reduce conduit runs and remove the need for external combiner boxes
Built for Extremes: Rugged IP55 enclosure and passive-cooling design ensure year-round reliability in Canada’s harsh climates
Modular Growth: Start at 20 kWh and expand capacity without re-engineering your rack—perfect for grid-tie, backup and off-grid solar applications across Canada
