Pecron LiFePO4 Expansion Batteries — EP3800 / FP5000
Pecron LiFePO4 Expansion Batteries — EP3800 / FP5000

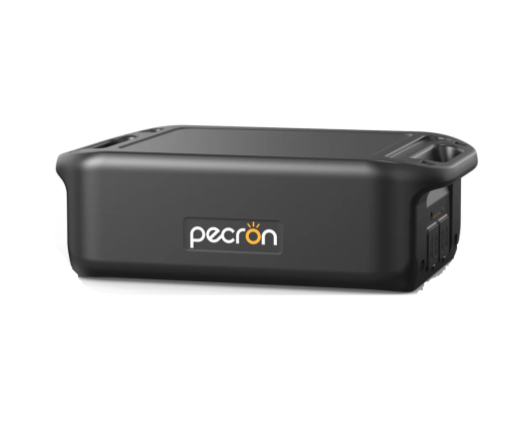

Pecron FP5000-48V expansion battery
Roll over image to zoom in Click on image to zoom
Pecron LiFePO4 Expansion Batteries — EP3800 / FP5000Pecron LiFePO4 Expansion Batteries — EP3800 / FP5000Pecron FP5000-48V expansion battery

Battery Specifications

SKU:PEC-EP3800-48V
ManufacturerPecron
Battery chemistryLiFePO₄
Nominal voltage51.2 V
Capacity75.0 Ah
Energy capacity3.84 kWh
Charging temperature range0.0 to 45.0 °C
Discharging temperature range0.0 to 45.0 °C
Show all specifications (10) Show fewer specifications
Dimensions (L × W × H)17.362205 × 12.283465 × 8.779528 in
Weight66.800065 lb

Pecron LiFePO4 Expansion Batteries — EP3800 / FP5000

Save $75.00
Pecron
Model: EP3800-48V | 51.2V | 75Ah
Price:
$1,175.00 $1,250.00

EP3800-48V — Model details

The EP3800-48V adds 3,840Wh of nominal LiFePO4 storage to a compatible Pecron power station. This 51.2V, 75Ah pack has MJ32 expansion connections and weighs approximately 30.3kg. Confirm compatibility and the required cable for your exact power station. The manual specifies 0–45°C for charging and discharging. Its stated 3,500-cycle figure is to over 80% remaining capacity.

Description

Expand a compatible Pecron power station with a matching LiFePO4 battery pack. Choose the EP3800-48V with 3.84kWh of nominal storage or the FP5000-48V with 5.12kWh.

These models use different expansion connections: EP3800 uses MJ32 ports; FP5000 uses XT120 ports. Confirm the exact power-station model and required cable before ordering. Their connectors and system compatibility are not interchangeable.

Select a model to see its capacity, dimensions, weight and model-specific details. These are expansion batteries, not standalone AC power stations.
