Portable Power Station Specifications
| SKU | PEC-F5000LFP |
|---|---|
| Battery capacity (Wh) | 5120.0 |
| Continuous AC output power (W) | 7200.0 |
| AC output voltage (V) | 120/240 |
| Max solar input power (W) | 5800.0 |
| Max permitted solar open-circuit voltage (V) | 180.0 |
| Solar input min operating voltage (V) | 30.0 |
| Solar input max operating voltage (V) | 180.0 |
Show all specifications (45)Show fewer specifications
| Max solar input current per input (A) | 25.0 |
|---|---|
| AC phase configuration | Split-phase |
| Battery chemistry | LiFePO₄ |
| Battery cycle life (cycles) | 4000 |
| Capacity retained at rated cycle life (%) | 80.0 |
| Cycle-life test conditions | 0.5C charge / 0.5C discharge at 25°C; manufacturer specifies over 80% retained capacity. |
| Warranty duration (years) | 5.0 |
| Warranty conditions | 2years + an extra 3years if online form is filled https://www.pecron.ca/pages/warranty-registration?shpxid=4dee25b8-be94-44b0-9890-71eb600fbafd |
| Weight (kg) | 56.2 |
| Max AC charging power (W) | 3600.0 |
| AC charging time (hours) | 1.8 |
| AC charging-time conditions | Approximately 1.8 hours using the optional 30A AC cable at up to 3600W. Included 15A cable limits AC input to 1800W. |
| Solar charging supported | Yes |
| Solar charging time (hours) | 1.2 |
| Solar charging-time conditions | Approximately 1.2 hours at up to 5800W solar input for the standalone unit; up to 6400W with an expansion battery. Each input: 3200W / 25A max; array Voc must remain below 180V and Vmp above 30V. |
| Expansion battery support | Yes |
| Max expanded battery capacity (Wh) | 35840.0 |
| Max expansion battery count | 6 |
| Compatible expansion batteries | FP5000-48V |
| Automatic backup switchover | Yes |
| Output available during charging | Yes |
| AC output frequency (Hz) | 50/60 |
| Independent MPPT tracker count | 2 |
| Solar input connector type | 2 × XT60-M |
| App monitoring supported | Yes |
| Connectivity | Bluetooth, Wi-Fi |
| Remote control functions | Monitor power and battery status, Control AC and DC outputs, Adjust device settings |
| Length (mm) | 551.0 |
| Width (mm) | 381.0 |
| Height (mm) | 332.0 |
| Carrying features | Handle |
| Max charging temperature (°C) | 45.0 |
| Max operating temperature (°C) | 45.0 |
| Enclosure protection rating | Not waterproof; protect from rain and moisture. No IP rating specified. |
| Safety protections | Over-voltage, Under-voltage, Over-current, Short-circuit, Over-temperature, Low-temperature |

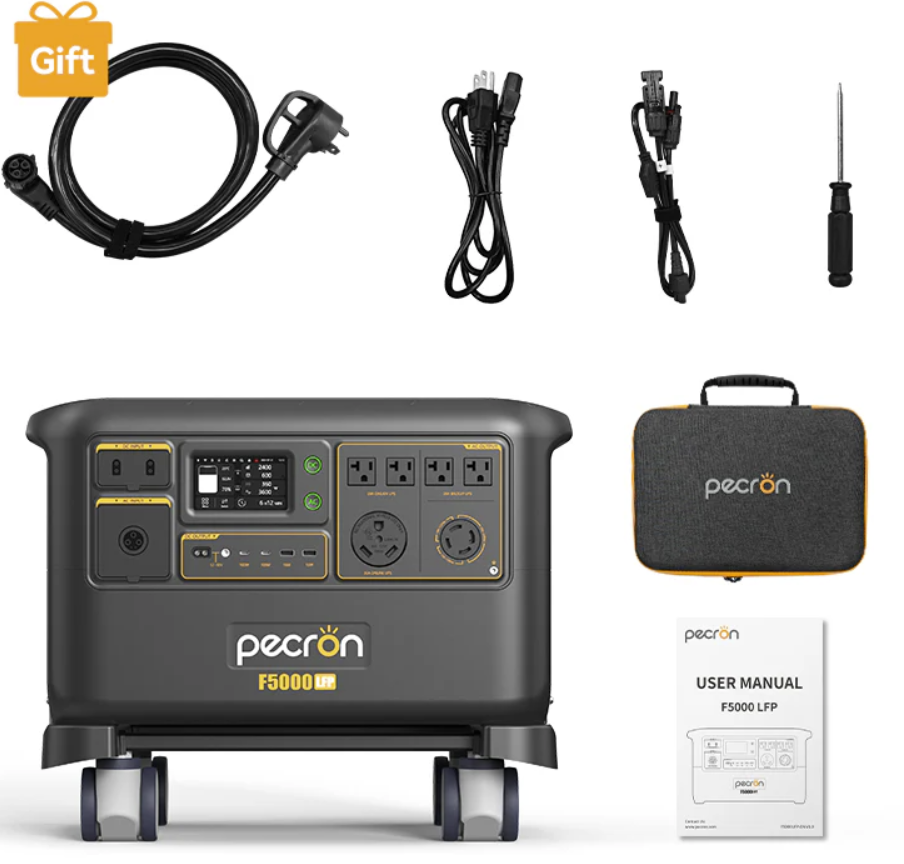

| Included accessories | 15A AC charging cable ×1, XT60-to-MC4 solar charging cable ×2, Slotted screwdriver ×2, Accessory pouch ×1, User manual ×1 |
| Output ports | Port group 1
Port group 2
Port group 3
Port group 4
Port group 5
Port group 6
Port group 7
Port group 8
|
Description
SKU: PEC-F5000LFP
Mfg. SKU: F5000LFP
Warranty: 3 Years, 5 Years if online form is filled
Call or email for availability.

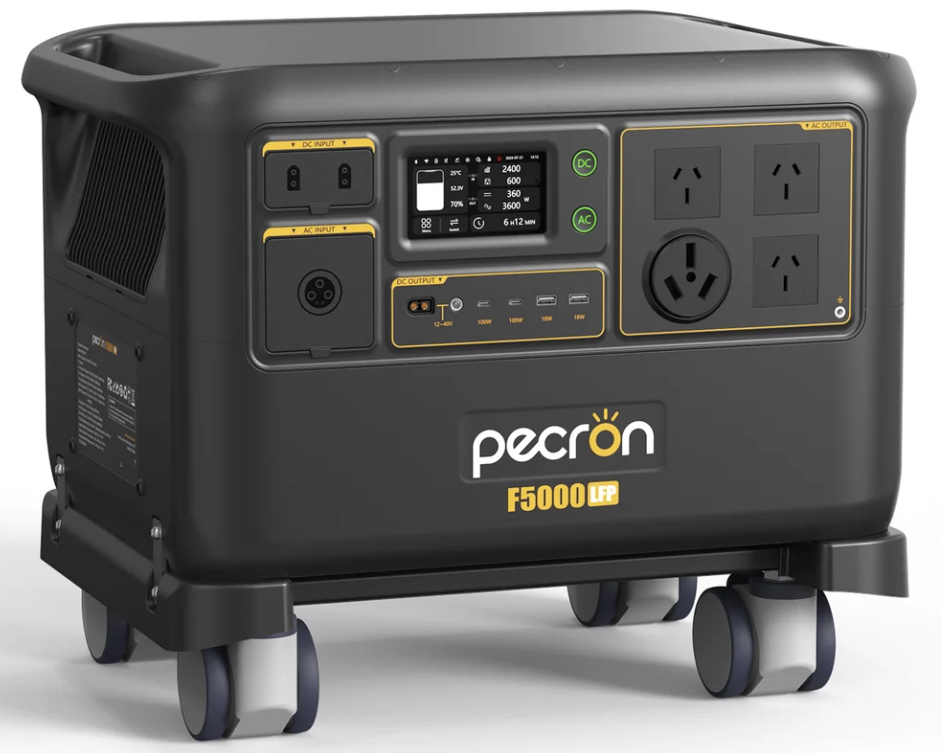

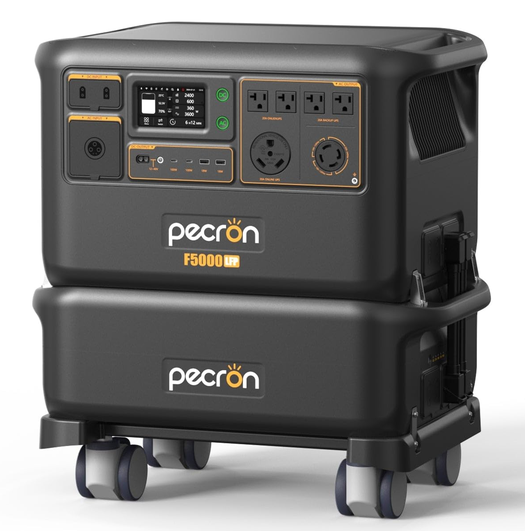

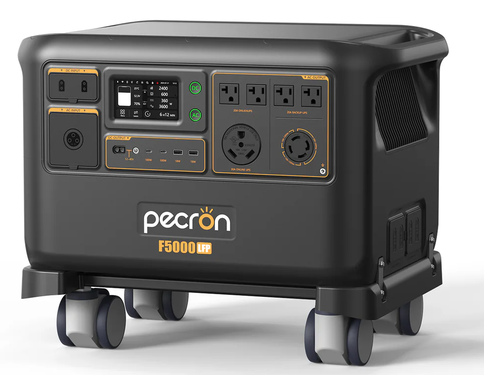

The Pecron F5000LFP Portable Power Station delivers exceptional off-grid and backup power with a massive 5,120Wh LiFePO₄ battery and up to 7,200W of 120/240V split-phase output. Designed for RVs, home backup, job sites, and off-grid living, it supports up to 35.8kWh of expandable storage, ultra-fast 6,400W solar charging, and 3,600W AC charging for rapid recharge times.
Featuring an advanced 0ms online UPS (8–20ms backup UPS), intelligent battery temperature management with built-in battery heating, customizable charging rates, OTA firmware updates, and adjustable DC output voltage, the F5000LFP offers outstanding performance and flexibility. The durable LiFePO₄ battery is rated for over 4,000 cycles to 80% capacity, ensuring years of reliable service.
Complete with a free trolley, universal wheels for easy transport, and an industry-leading 3+2-year warranty, the F5000LFP is built to power everything from essential home appliances to demanding 240V equipment with confidence.
