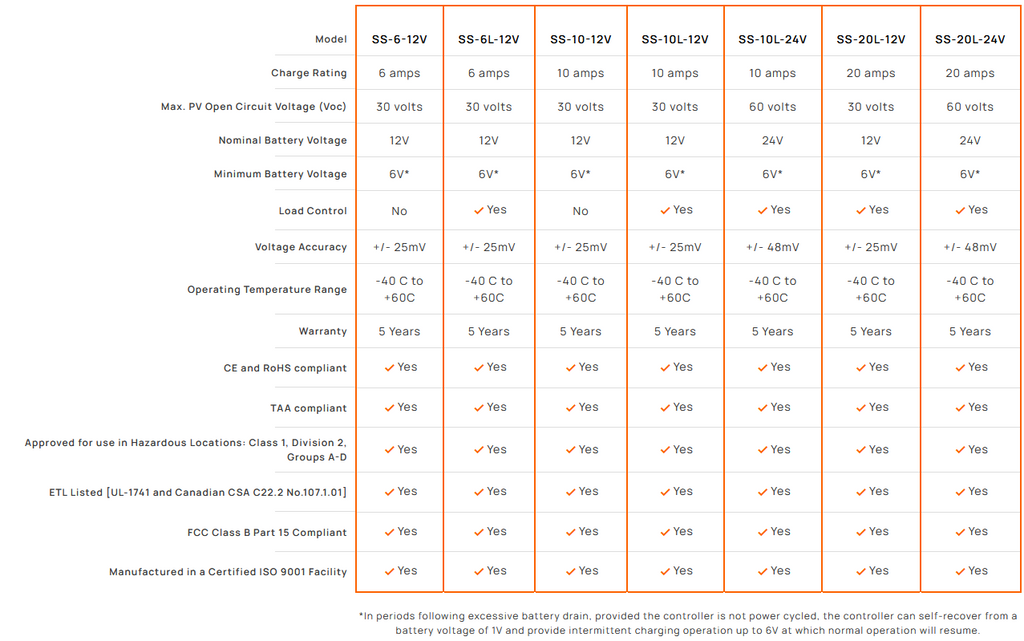

Solar Charge Controller Specifications
| SKU | MOR-SS-10L-12V |
|---|---|
| MPN | SS-10L-12V |
| Controller technology | PWM |
| Supported battery voltage (V) | 12 |
| Max charging current (A) | 10.0 |
| Max PV open-circuit voltage (V) | 30.0 |
| Supported battery chemistries | Flooded lead-acid |
| PV voltage-limit conditions | 12V battery model, 30V max PV open-circuit voltage; minimum battery voltage 6V for normal operation. |
Show all specifications (27)Show fewer specifications
| Automatic battery-voltage detection | No |
|---|---|
| Equalization supported | Yes |
| Temperature compensation | Yes |
| Load output available | Yes |
| Load output rated current (A) | 10.0 |
| Low-voltage load disconnect | Fixed |
| PV terminal wire capacity | Marine-rated screw terminals, up to 10 AWG / 5 mm² |
| Battery terminal wire capacity | Marine-rated screw terminals, up to 10 AWG / 5 mm² |
| Load terminal wire capacity | Marine-rated screw terminals, up to 10 AWG / 5 mm² |
| Min operating temperature (°C) | -40.0 |
| Max operating temperature (°C) | 60.0 |
| Length (mm) | 152.0 |
| Width (mm) | 55.0 |
| Height (mm) | 32.0 |
| Weight (kg) | 0.23 |
| Protection features | PV overload, PV short circuit, PV overvoltage, Load overload, Load short circuit, Battery overvoltage, Reverse polarity, Overtemperature, Lightning and transient surges, Reverse current at night |
| Certifications | CE, RoHS, ETL listed to UL 1741 (terminal cover required), Class I Division 2, Groups A-D |
| Product warranty (years) | 5.0 |
| Warranty conditions | Five-year manufacturer warranty, subject to Morningstar terms. |
Description

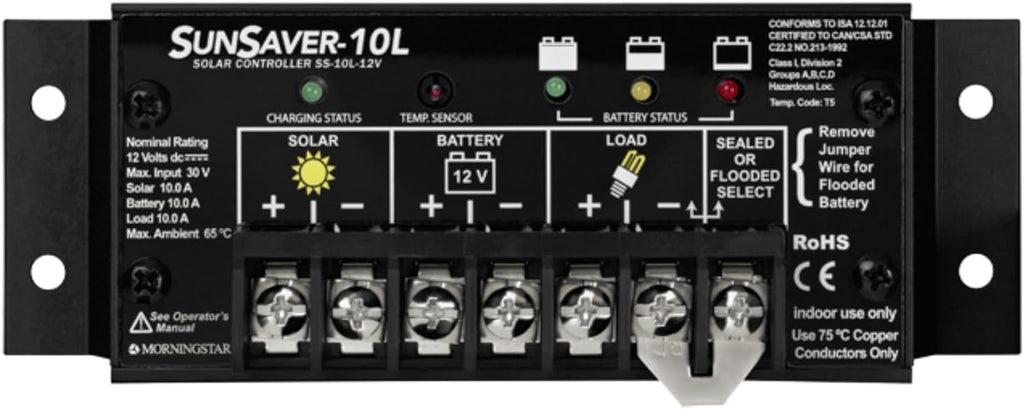

The Morningstar SunSaver SS-10L-12V provides 10A PWM charging for a 12V battery system. Its sealed or flooded battery selection and temperature compensation support straightforward lead-acid charging.
A 10A load output disconnects at 11.5V and reconnects at 12.6V to help protect the battery from excessive discharge. Status and battery LEDs show operating conditions without a separate screen.
Designed for demanding installations, the SunSaver uses an anodized aluminium case, encapsulated electronics and marine-rated terminals. Observe the 30V maximum solar open-circuit voltage and the installation requirements for hazardous-location or UL 1741 compliance.
This is the fixed 12V SS-10L-12V model. View Morningstar specifications.
