Solar Charge Controller Specifications
| SKU | MOR-PS-MPPT-25M |
|---|---|
| MPN | PS-MPPT-25M |
| Controller technology | MPPT |
| Supported battery voltage (V) | 12, 24 |
| Max charging current (A) | 25.0 |
| Max PV open-circuit voltage (V) | 120.0 |
| Max PV power at 12V (W) | 440.0 |
| Max PV power at 24V (W) | 880.0 |
Show all specifications (33)Show fewer specifications
| PV voltage-limit conditions | Nominal battery system: 12V or 24V. Battery operating range: 10–35V. PV voltage must exceed battery voltage by 1V to start charging; maximum PV open-circuit voltage is 120V. |
|---|---|
| PV power rating conditions | Maximum recommended PV input: 440W at 12V or 880W at 24V. Nominal maximum output: 350W at 12V or 700W at 24V; ratings are not interchangeable. |
| Adjustable charging settings | Yes |
| Equalization supported | Yes |
| Temperature compensation | Yes |
| PV oversizing permitted | Yes |
| PV oversizing limits | Recommended PV input can exceed nominal output. Controller limits battery current; evaluate array sizing with Morningstar string-sizing guidance. |
| Peak conversion efficiency (%) | 98.0 |
| Built-in display | Yes |
| Communication interfaces | MeterBus, MODBUS |
| Required monitoring accessories | EMC-1 Ethernet MeterBus converter for SNMP monitoring (optional), RM-1 remote meter (optional) |
| Load output available | Yes |
| Load output rated current (A) | 25.0 |
| Low-voltage load disconnect | Adjustable |
| PV terminal wire capacity | 2.5–35 mm² / 14–2 AWG power terminals; standard wire cover accepts up to 16 mm² / 6 AWG. |
| Battery terminal wire capacity | 2.5–35 mm² / 14–2 AWG power terminals; standard wire cover accepts up to 16 mm² / 6 AWG. |
| Load terminal wire capacity | 2.5–35 mm² / 14–2 AWG power terminals; standard wire cover accepts up to 16 mm² / 6 AWG. |
| Cooling method | Passive |
| Min operating temperature (°C) | -40.0 |
| Max operating temperature (°C) | 60.0 |
| Temperature and altitude derating | May derate above 55°C at 77Vmp in an unvented enclosure. Meter operating range: −20°C to +60°C. |
| IP rating | IP20, Type 1 |
| Weight (kg) | 1.4 |
| Product warranty (years) | 5.0 |
| Warranty conditions | Five-year manufacturer warranty; see Morningstar terms. |
PS-MPPT-25M — Model details
Description

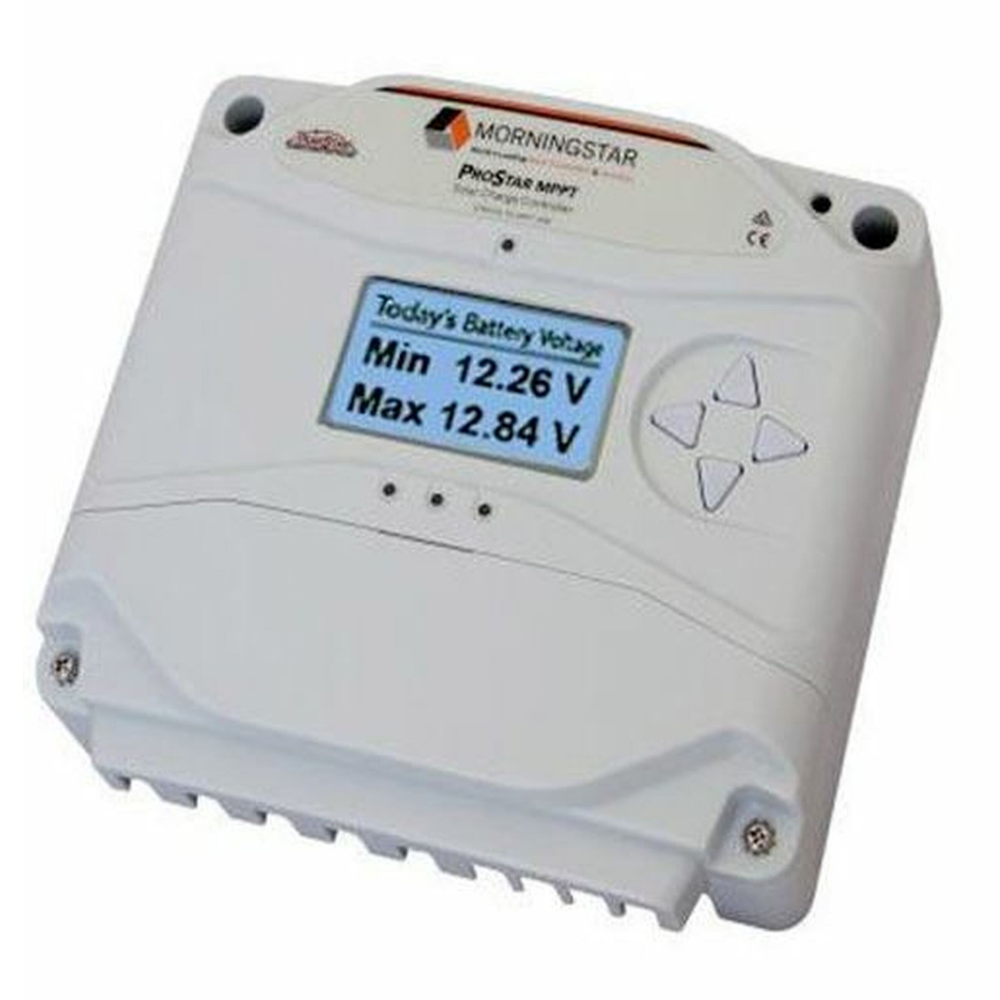

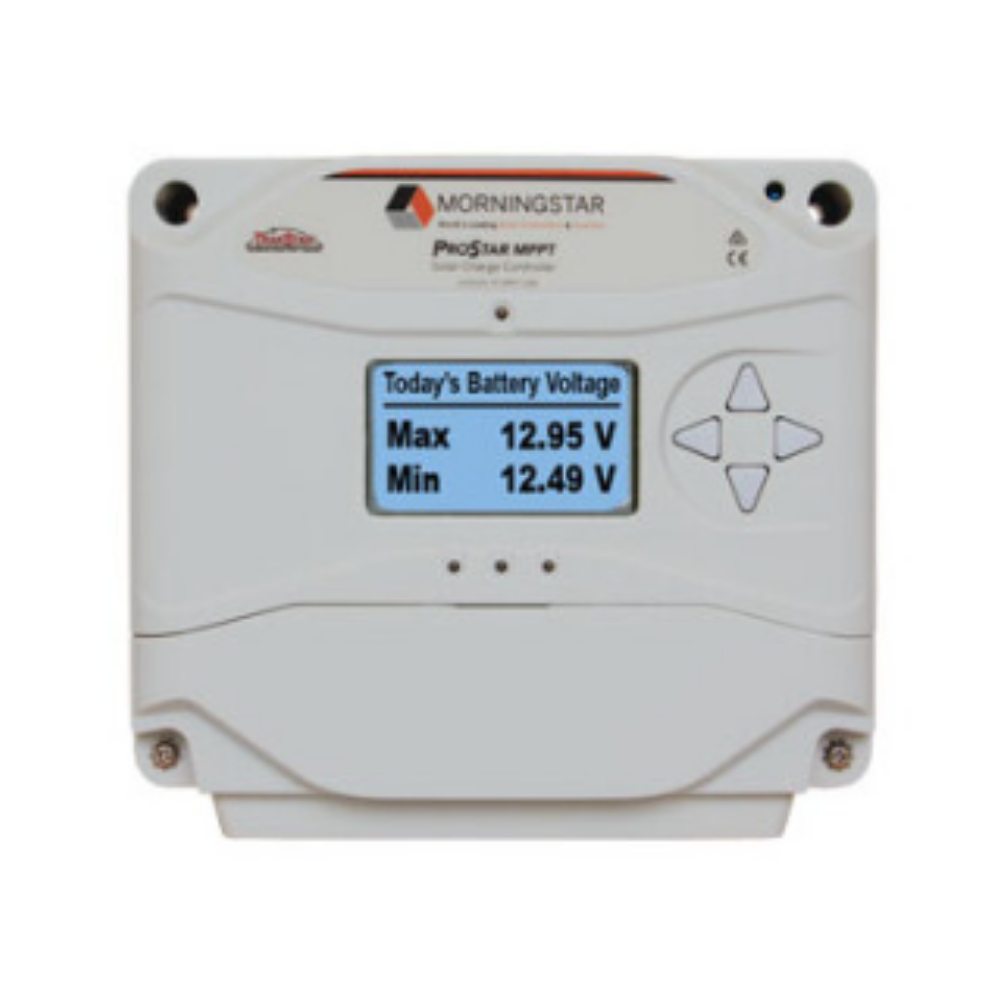

Choose the Morningstar ProStar MPPT controller with built-in meter that suits your 12V or 24V off-grid battery system. Both models combine TrakStar maximum power point tracking, programmable charging and load control in a fanless enclosure.
- PS-MPPT-25M: up to 25A battery charging and a 25A load output.
- PS-MPPT-40M: up to 40A battery charging and a 30A load output.
- Both models accept up to 120V PV open-circuit voltage; array design must account for cold-weather voltage.
- Built-in meter for viewing system information and adjusting settings.
- Temperature-compensated charging, data logging and configurable lighting control.
Lead-acid battery profiles and custom charging settings are supported. Lithium and other battery types require appropriate custom programming and any battery-management protections required by the battery manufacturer. Network monitoring requires the applicable optional communications accessories.
