Solar Charge Controller Specifications
| SKU | MID-MNKID-C1D2 |
|---|---|
| MPN | MNKID-C1D2 |
| Controller technology | MPPT |
| Supported battery voltage (V) | 12, 24, 36, 48 |
| Max charging current (A) | 30.0 |
| Max PV open-circuit voltage (V) | 150.0 |
| Supported battery chemistries | Flooded lead-acid, AGM, Gel, Other lithium-ion, Other |
| PV voltage-limit conditions | 150V operating PV limit. Datasheet HyperVOC extension to 162V is a non-operative safety zone for cold conditions. |
Show all specifications (25)Show fewer specifications
| Adjustable charging settings | Yes |
|---|---|
| Equalization supported | Yes |
| Temperature compensation | Yes |
| Built-in display | Yes |
| Communication interfaces | RS232, USB |
| Load output available | Yes |
| Load output rated current (A) | 30.0 |
| Min operating temperature (°C) | -40.0 |
| Max operating temperature (°C) | 50.0 |
| Temperature and altitude derating | Controller automatically derates above 25°C. |
| IP rating | IP52; indoor Type 1 |
| Length (mm) | 235.0 |
| Width (mm) | 84.0 |
| Height (mm) | 127.0 |
| Weight (kg) | 2.72155422 |
| Certifications | Class I Division 2, ETL US and Canada, CE, FCC Class B, CSA C22 #107.1 |
| Product warranty (years) | 5.0 |
Description

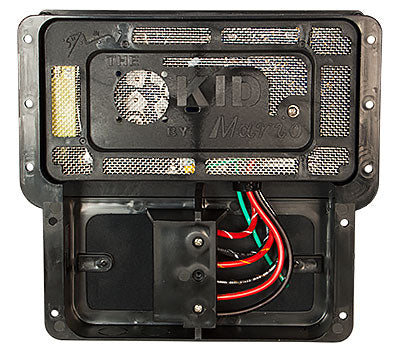

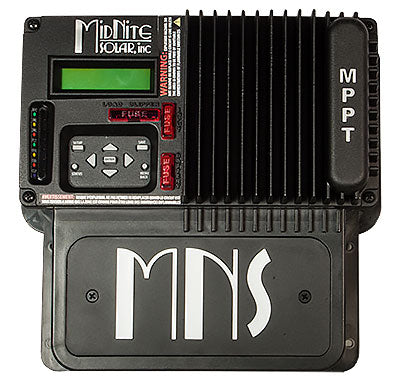

The MidNite Kid C1D2 is a 30A MPPT controller for 12V–48V battery systems. Its LCD, configurable charging settings and 30A load terminal suit monitored off-grid installations. This C1D2 version is distinct from the standard Kid. The controller derates above 25°C and requires an installation consistent with its indoor Type 1 rating. HyperVOC extends protection beyond the 150V operating ceiling without providing charging in that extended region.
