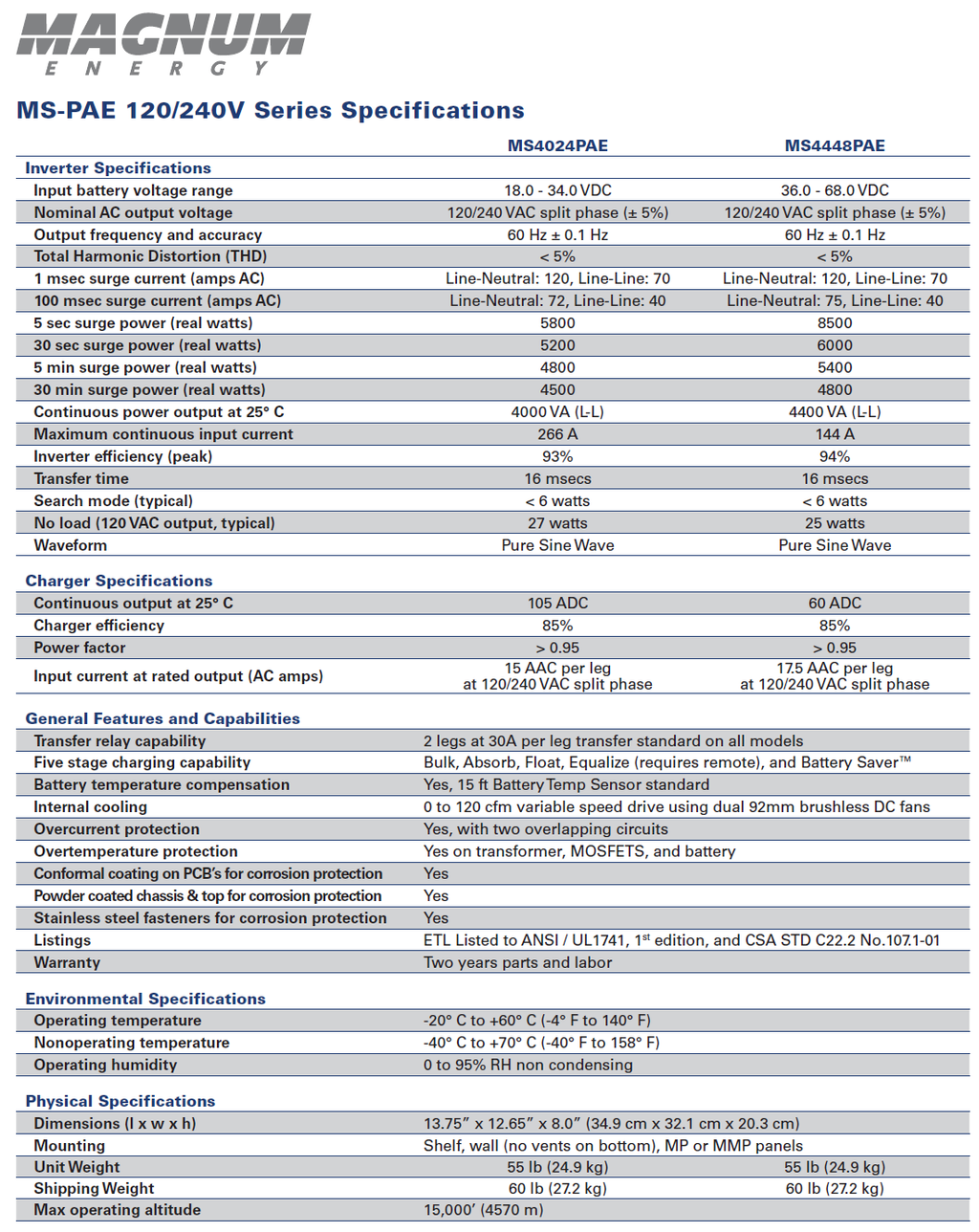

Inverter Specifications
| SKU | MAG-MS4448PAE |
|---|---|
| Operating type | Off-grid |
| Inverter function | Inverter/charger |
| AC output rating conditions | Continuous apparent output at 25°C, line-to-line. |
| Continuous apparent power (VA) | 4400.0 |
| AC output voltage (V) | 120/240 |
| AC output frequency (Hz) | 60 |
| AC phase configuration | Split-phase |
Show all specifications (37)Show fewer specifications
| Output waveform | Pure sine wave |
|---|---|
| Battery support | Required |
| Nominal battery voltage (V) | 48 |
| Min battery voltage (V) | 36.0 |
| Max battery voltage (V) | 64.0 |
| Outage backup capability | Yes |
| Backup output voltage (V) | 120/240 |
| Backup transfer time (ms) | 16.0 |
| Surge output power (W) | 8500.0 |
| Surge duration (s) | 5.0 |
| Surge rating conditions | 8500 W for 5 s; 6000 W for 30 s; 5400 W for 5 min; 4800 W for 30 min. |
| Max AC battery charging current (A) | 60.0 |
| Generator input supported | Yes |
| AC pass-through current (A) | 30.0 |
| Peak efficiency (%) | 94.0 |
| Idle/no-load consumption (W) | 25.0 |
| Efficiency and consumption conditions | Search mode consumption <6 W. Pass-through rating is per leg. |
| Standard warranty (years) | 3.0 |
| Warranty extension options | Five years when installed on an eligible MMP or MP system. |
| Length (mm) | 349.0 |
| Width (mm) | 321.0 |
| Height (mm) | 203.0 |
| Weight (kg) | 24.9 |
| Min operating temperature (°C) | -20.0 |
| Max operating temperature (°C) | 60.0 |
| Max operating altitude (m) | 4570.0 |
| Cooling method | Fan-cooled |
| Certifications | ETL listed to ANSI/UL 1741, CSA C22.2 No. 107.1-01 |
| MPN | MS4448PAE |
Description
**NEW STOCK! MADE IN USA!**
Special order - 1-2 days typical lead time

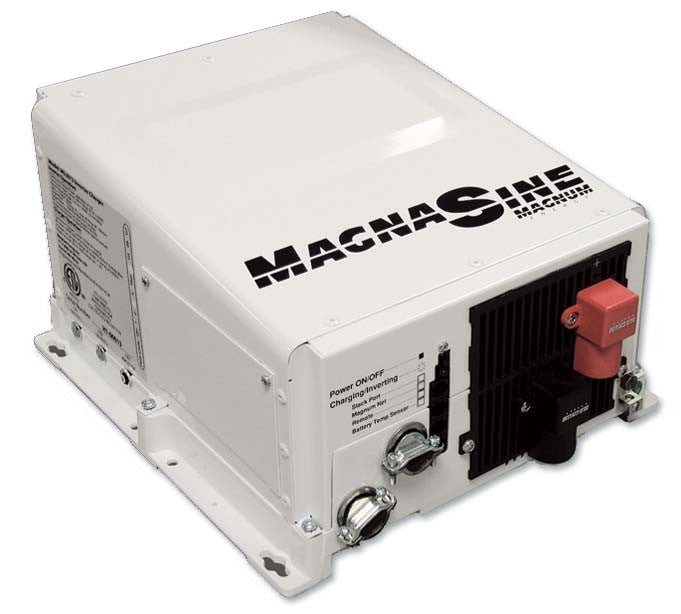

MS4448PAE
The MS-PAE 120/240V Series Inverter / Charger from Magnum Energy is a pure sine wave inverter designed specifically for the most demanding renewable energy applications. The MS-PAE Series is powerful, easy-to-use, and best of all, cost effective.
No series stacking required: The unique design of the MSPAE Series can provide 120 and 240 volts output in one unit, eliminating the need to stack two units together to get 240 volts.
Parallel Stacking: You can parallel up to four inverter/chargers for up to 17.6kw of power at 120/240V. The MP panels and router are required for parallel stacking the MS-PAE Series. Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger – using 25-30% less AC current than standard chargers.
Safe and reliable: The MS-PAE Series is ETL Listed to the stringent requirements of UL 1741, 1st edition, and CSA C22.2 #107.1-01 for renewable energy installations.
Features: Pure sine wave: Power your T.V.s, stereos, plasma screens, and other sensitive electronics without worry. The pure sine wave inverter and power factor corrected charger provide clean, reliable inverter power with low total harmonic distortion (THD) of less than 5%.
Lightweight: The lightweight aluminum base and cover also provides noise reduction and corrosion resistance.
