Battery Specifications
| SKU: | LXP-PSHIELD-16KWH |
|---|---|
| Manufacturer | Lux Power |
| Battery chemistry | LiFePO₄ |
| Nominal voltage | 51.2 V |
| Capacity | 314.0 Ah |
| Energy capacity | 16.076 kWh |
| Max continuous discharge | 200.0 A |
| Peak discharge | 220.0 A |
Show all specifications (13) Show fewer specifications
| Dimensions (L × W × H) | 18.700787 × 9.291339 × 35.433071 in |
|---|---|
| Weight | 275.577828 lb |
| Manufacturer’s Warranty | 10 years |
| Peak discharge duration | 0.5 seconds |
| Max charging current | 165.0 A |
Description

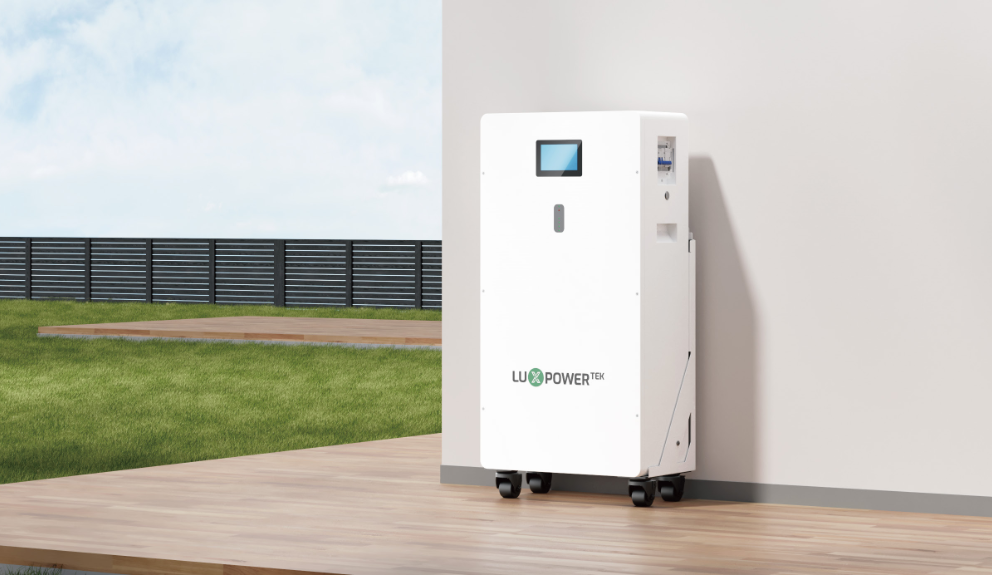

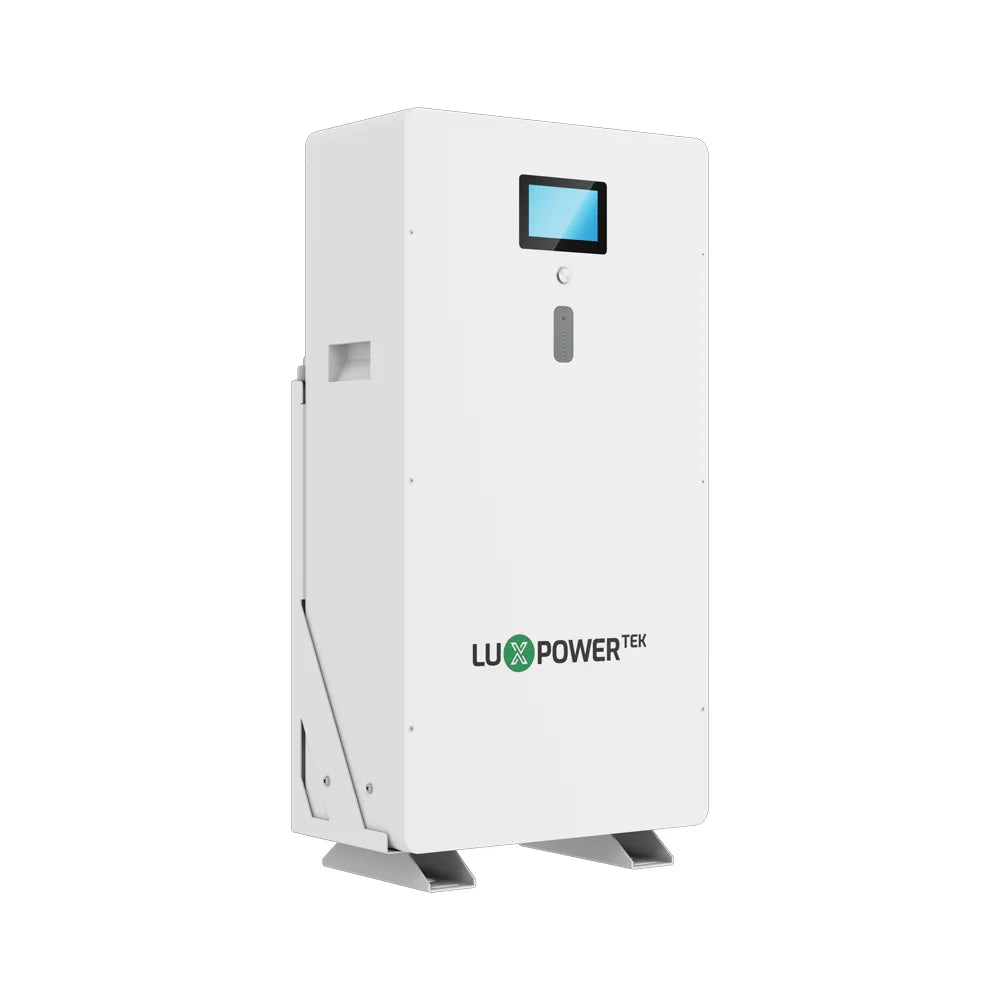

LuxPower PSHIELD MAX provides 16.076kWh of nominal LiFePO4 storage in a 51.2V, 314Ah battery. It is designed for compatible solar and backup systems, with CAN/RS485 communication and an IP65 enclosure.
Max continuous charge current is 165A and max continuous discharge is 200A. The documented discharge peaks are 210A for five minutes and 220A for 500 milliseconds. Up to 32 matching modules may operate in parallel under the manufacturer’s requirements. The stated 8,000-cycle test uses 25°C, 90% depth of discharge and 0.5C. Heating and fire suppression are optional; their inclusion is not assumed. Dimensions are 475mm wide × 236mm deep × 900mm high, with a 125kg net weight. Warranty is 10 years subject to the manufacturer’s terms and cycle limits.
