Solar Panel Specifications
| SKU: | LUM-220WM10FLEX |
|---|
Description
SKU: LUM-220WM10FLEX

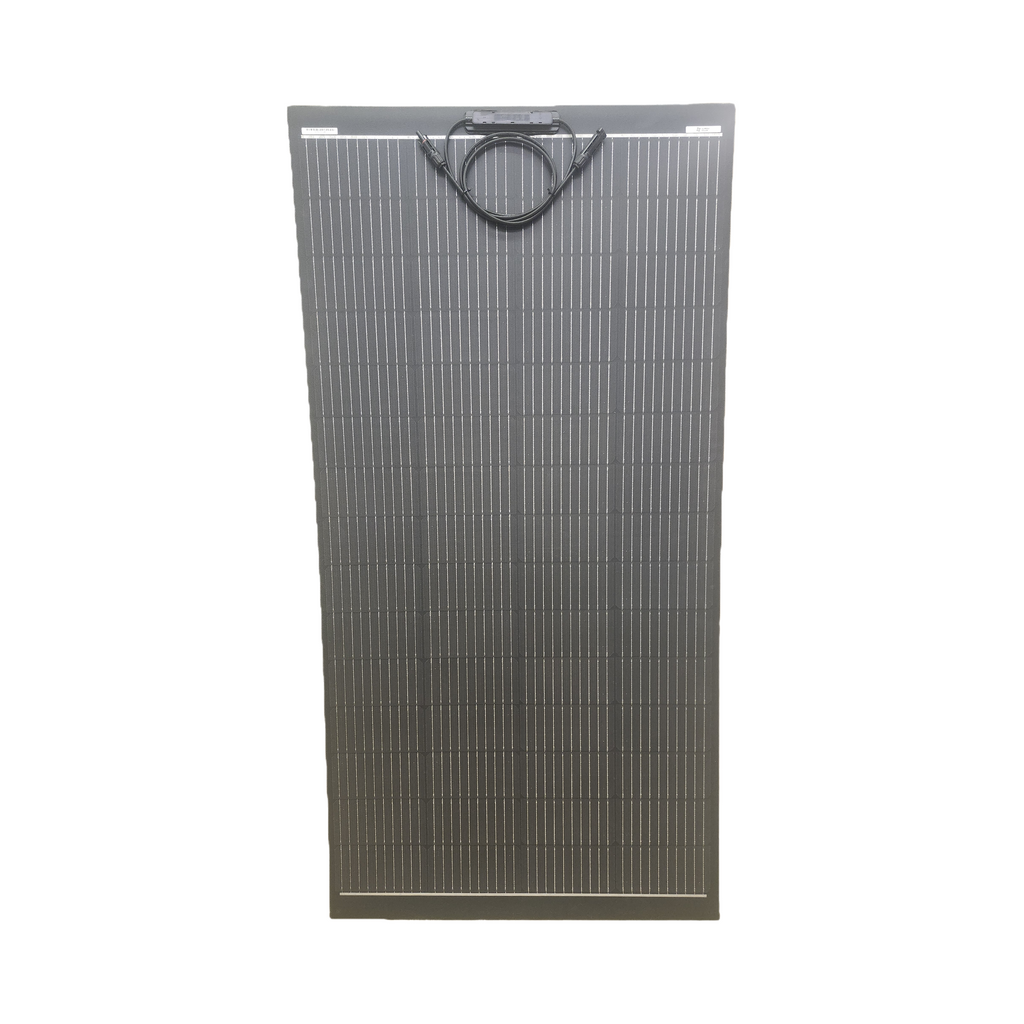

Lumera 220W Flex Solar Module (No Grommet)
This configuration includes the premium Lumera 220W lightweight, flexible solar module equipped with an integrated IP68-rated, low-profile junction box on the panel face. Please note that this is the panel-only SKU and does not ship with a surface-mount roof entry grommet box/cable gland. Ideal for custom installations where wiring routes through existing ports, side-walls, or specialized marine fittings, or where bulk-pack installations share a central cable entry point.

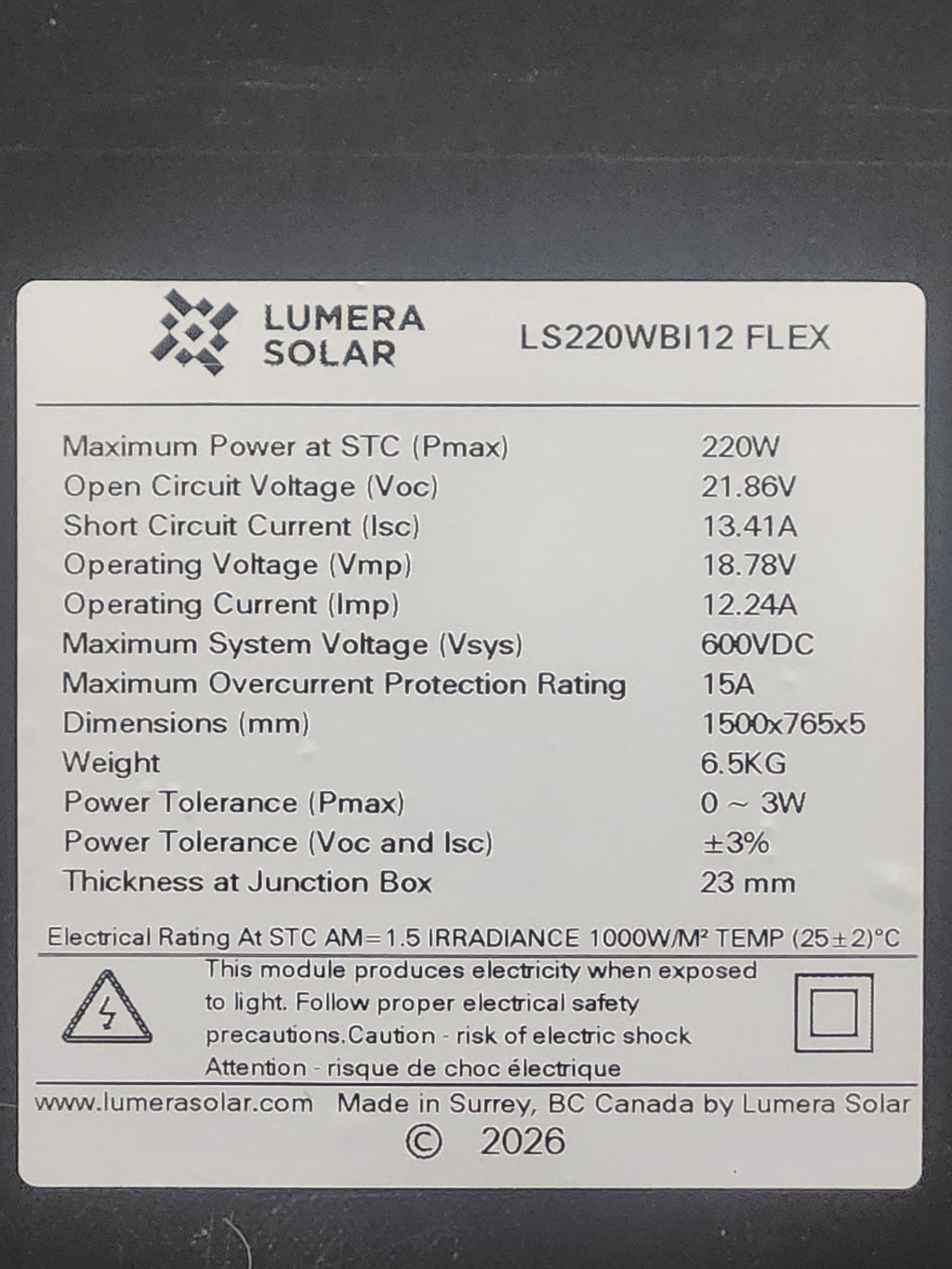

✅ Key Specs (STC)
| Feature | Value |
|---|---|
| Rated Power (Pmax) | 220W |
| Open Circuit Voltage (Voc) | 21.6V |
| Max Power Voltage (Vmp) | 18.78V |
| Short Circuit Current (Isc) | 13.41A |
| Max Overcurrent Proection Rating | 15A |
| Power Tolerance (Pmax) | 0 ~ 3W |
| Power Tolerance (Voc Isc) | +_ 3% |
| Max System Voltage | 1000V DC |
| Dimensions (mm) | 1500 × 765 × 5 |
| Weight | Approx. 14.5 lbs (6.5 kg) |
💰 Volume Pricing
Tier pricing on bulk quantities! (calculated at check out)
|
Quantity |
$ / Module |
| <3 | $285 |
| >2 | $275 |
| >10 |
$250 |
