Inverter Specifications
| SKU | KIS-SW2420 |
|---|---|
| Operating type | Off-grid |
| Inverter function | Inverter only |
| Continuous AC output power (W) | 2000.0 |
| AC output voltage (V) | 120 |
| AC output frequency (Hz) | 60 |
| AC phase configuration | Single-phase |
| Output waveform | Pure sine wave |
Show all specifications (24)Show fewer specifications
| Battery support | Required |
|---|---|
| Nominal battery voltage (V) | 24 |
| Min battery voltage (V) | 21.0 |
| Max battery voltage (V) | 31.0 |
| Surge output power (W) | 4000.0 |
| Display | Status LEDs and digital display |
| Length (mm) | 414.0 |
| Width (mm) | 230.0 |
| Height (mm) | 110.0 |
| Weight (kg) | 5.2 |
| Min operating temperature (°C) | 0.0 |
| Max operating temperature (°C) | 40.0 |
| Max operating altitude (m) | 3000.0 |
| Certifications | cETLus (UL and CSA standards) |
| Applicable regions and model variants | North America |
| MPN | SW2420 |
Description
KIS: KIS-SW2420
Mfg. SKU: SW2420

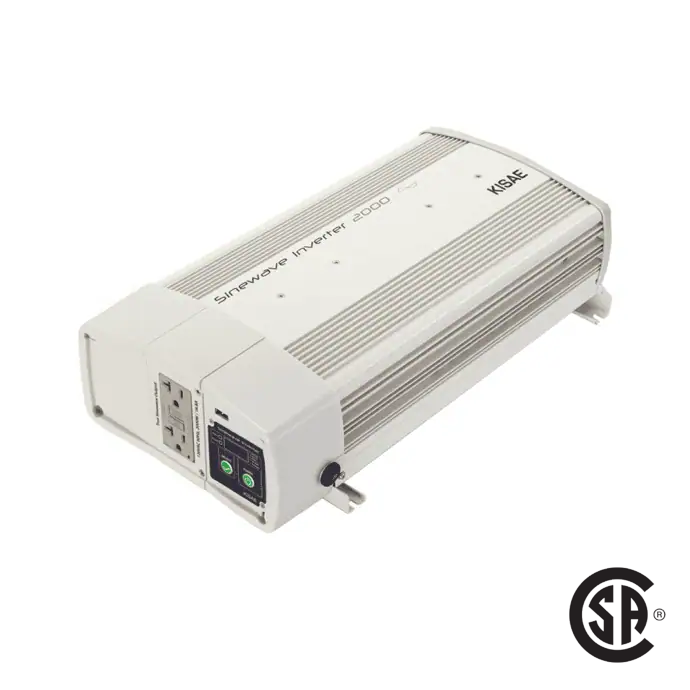

Kisae SW2420 Pure Sine Wave Inverter – 2000W, 24V DC to 120V AC (CSA Approved)
The Kisae SW2420 Pure Sine Wave Inverter provides 2000W of continuous AC power with a 4000W surge capacity, making it ideal for off-grid solar systems, RVs, trailers, cabins, and mobile power applications. With cETLus certification conforming to UL & CSA standards, the SW2420 is built for safe and reliable use across Canada.
✅ True Sine Wave Output – Delivers clean 120V AC power (<3% THD) for sensitive electronics, appliances, and tools.
✅ CSA/UL Certified – Fully compliant with Canadian and U.S. safety standards.
✅ High Surge Capability – 4000W peak surge supports motors and appliances with startup loads.
✅ 24V System Ready – Optimized for 24V solar battery banks and energy storage systems.
✅ LED Digital Display – Shows input voltage, output power, and warning/error codes.
✅ Comprehensive Protection – Includes undervoltage shutdown (21.0V), recovery (23.6V), overload, short-circuit, and thermal protection.
Technical Specifications (SW2420)
-
Continuous Power: 2000W
-
Surge Power: 4000W
-
Input Voltage (Nominal): 25V DC
-
Operating Range: 21 – 31V DC
-
No-Load Current Draw (Power Save OFF): 0.8A
-
No-Load Current Draw (Power Save ON): 0.3A
-
AC Output Voltage/Frequency: 120V AC / 60Hz
-
Output Current: 16.6A
-
Output Waveform: True Sine Wave (<3% THD)
-
Peak Efficiency: 90%
-
AC Receptacle: NEMA 5-20 GFCI
-
USB Output: 5V DC (0.75A + 2.1A + 2.1A)
-
Indicators: Status + Warning/Error codes
-
Display: LED – Input voltage, output power, warning/error code
-
Protections: Input undervoltage shutdown (21.0V), recovery (23.6V), overload, short-circuit, over-temperature
-
Regulatory Compliance: cETLus certified – conforms to UL & CSA standards
⚡ Available now at Solar Super Store Canada, the Kisae SW2420 inverter is a top choice for Canadians seeking a CSA-approved 2000W inverter for solar, mobile, and off-grid power solutions.
Dimensions (L x W x H):
SW2420: 9” x 15” x 4.5” (241 x 419 x 114mm)
Weight:
SW1220: 12 lbs. / 5.4 Kg
