Inverter Specifications
| SKU | KIS-SW1220 |
|---|---|
| Operating type | Off-grid |
| Inverter function | Inverter only |
| Continuous AC output power (W) | 2000.0 |
| AC output voltage (V) | 120 |
| AC output frequency (Hz) | 60 |
| AC phase configuration | Single-phase |
| Output waveform | Pure sine wave |
Show all specifications (19)Show fewer specifications
| Battery support | Required |
|---|---|
| Nominal battery voltage (V) | 12 |
| Min battery voltage (V) | 10.5 |
| Max battery voltage (V) | 15.5 |
| Surge output power (W) | 4000.0 |
| Peak efficiency (%) | 90.0 |
| Display | Power and fault indicators |
| Mounting format | Wall-mounted |
| Certifications | cETLus (UL and CSA standards) |
| Applicable regions and model variants | North America |
| MPN | SW1220 |
Description
SKU: KIS-SW1220
Mfg. SKU: SW1220

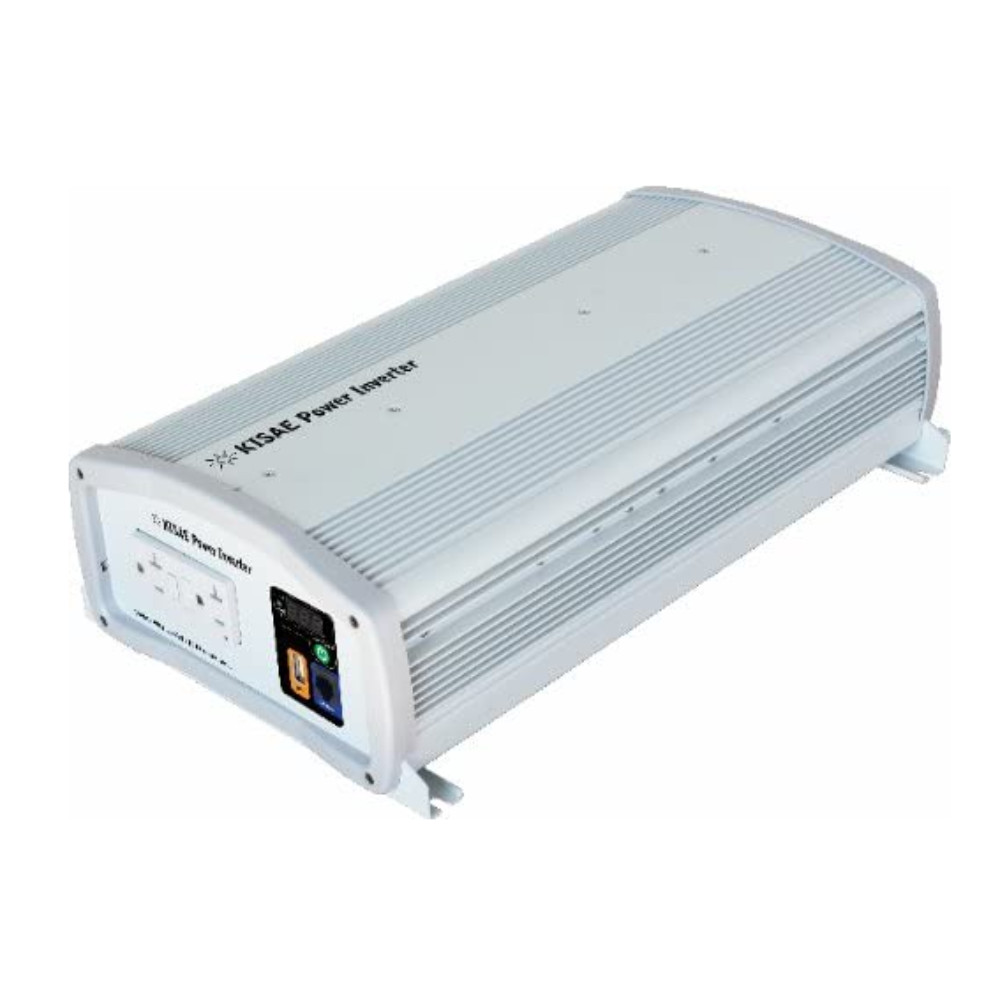

KISAE SW1220 – 2000W True Sine Wave Power Inverter (12V to 120VAC)
The KISAE SW1220 Power Inverter is a premium 2000-watt true sine wave inverter designed to deliver clean, reliable AC power from a 12V DC source. Built to meet UL and CSA safety standards, this inverter is ideal for Canadian RV owners, boaters, off-grid systems, and backup power applications requiring dependable energy for sensitive electronics and appliances.
With 2000W continuous output and 4000W peak surge capacity, the SW1220 provides stable AC power for laptops, TVs, tools, small appliances, and critical devices, while built-in safety protections and user-friendly features ensure reliable operation.
⚡ Features & Benefits
-
Premium 2000W Continuous / 4000W Peak Output – True sine wave (<3% THD) power for sensitive electronics.
-
Safe & Certified – Built to cETLus markings with UL & CSA compliance for North American standards.
-
Built-In Protections:
-
Low battery shutdown prevents total discharge.
-
Over-temperature shutdown for system safety.
-
GFCI and breaker-protected outlets (North American model).
-
-
Smart Monitoring: LED display shows input voltage, output power, warnings, and error codes.
-
USB Charging Port: Integrated 5V / 2.1A USB port for mobile devices.
-
Silent Operation: Fan-controlled cooling ensures quiet use.
-
Flexible Installation: Compact, wall-mountable design for RVs, cabins, boats, or backup systems.
-
Available Models: 120VAC and 230VAC outputs; 12V and 24V input versions.
📊 Technical Specifications
AC Output
-
Continuous Power: 2000W
-
Peak Power: 4000W
-
Voltage/Frequency: 120VAC / 60Hz
-
Current: 16.6A
-
Waveform: True sine wave (<3% THD)
-
Peak Efficiency: 89%
-
Outlet: NEMA 5-20 GFCI (North America)
DC Input
-
Nominal Voltage: 12.5V DC
-
Operating Range: 10.5 – 15.5V DC
-
No Load Current: <1.2A
DC Output
-
USB Port: 5V / 2.1A
Display & Controls
-
Indicators: Status
-
LED Display: Input voltage, output power, warnings, error codes
Safety & Protection
-
Input Undervoltage Shutdown: 10.5V DC
-
Input Overvoltage Shutdown: 15.5V DC
-
Short-circuit, over-temp, and overload protection
Enclosure
-
Dimensions: 16.3 × 9.1 × 4.3 in (414 × 231 × 109 mm)
-
Weight: 12 lbs (5.4 kg)
Why Choose the KISAE SW1220 in Canada?
The KISAE SW1220 2000W Inverter is engineered to provide reliable AC power for Canadian off-grid, marine, and RV applications. With CSA certification, premium safety features, and true sine wave performance, it ensures your electronics and appliances run smoothly, safely, and efficiently.
