Inverter Specifications
| SKU | KIS-SW1210 |
|---|---|
| Operating type | Off-grid |
| Inverter function | Inverter only |
| Continuous AC output power (W) | 1000.0 |
| AC output voltage (V) | 120 |
| AC output frequency (Hz) | 60 |
| AC phase configuration | Single-phase |
| Output waveform | Pure sine wave |
Show all specifications (19)Show fewer specifications
| Battery support | Required |
|---|---|
| Nominal battery voltage (V) | 12 |
| Min battery voltage (V) | 10.5 |
| Max battery voltage (V) | 15.5 |
| Surge output power (W) | 2000.0 |
| Peak efficiency (%) | 90.0 |
| Display | Power and fault indicators |
| Mounting format | Wall-mounted |
| Certifications | cETLus (UL and CSA standards) |
| Applicable regions and model variants | North America |
| MPN | SW1210 |
Description
SKU: KIS-SW1210
SKU: SW1210

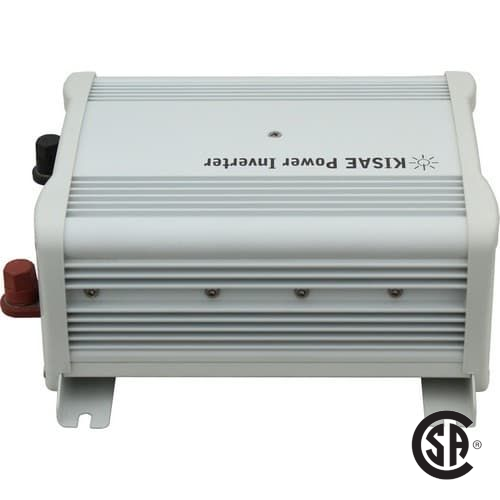

Kisae SW1210 Pure Sine Wave Inverter – 1000W, 12V DC to 120V AC (CSA Approved)
The Kisae SW1210 Pure Sine Wave Inverter delivers 1000W of continuous, utility-grade power from a 12V battery source, with a 1600W surge capacity for appliances and tools with startup loads. Designed for RVs, off-grid cabins, trailers, mobile work applications, and backup systems, it provides clean and reliable AC power for sensitive electronics. With cETLus certification conforming to UL & CSA standards, this inverter is fully approved for safe use across Canada.
✅ True Sine Wave Output – Clean 120V AC (<3% THD) for laptops, TVs, appliances, and motor-driven tools.
✅ CSA/UL Certified – Meets Canadian safety and installation requirements.
✅ High Surge Capability – 1600W peak handles startup loads with ease.

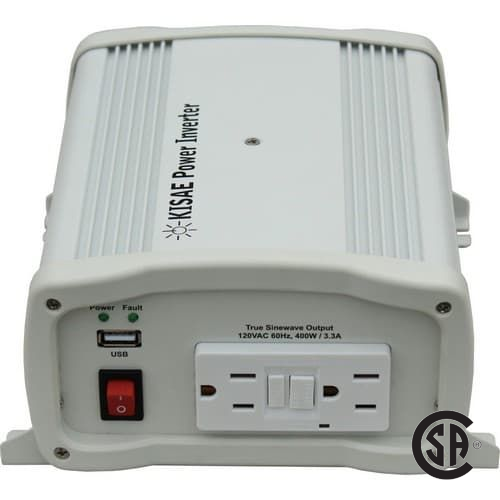

✅ Compact & User-Friendly – Built-in GFCI AC outlets and digital LED display for voltage, power, and fault monitoring.
✅ Versatile Applications – Perfect for solar setups, RVs, trailers, cabins, and mobile work power.
✅ Integrated USB Port – 5V DC / 2.1A for charging phones, tablets, or small electronics.
Technical Specifications (SW1210)
-
Continuous Power: 1000W
-
Surge Power: 1600W
-
Input Voltage (Nominal): 12.5V DC
-
Operating Range: 10.5 – 15.5V DC
-
No-Load Current Draw: <1.2A
-
AC Output Voltage/Frequency: 120V AC / 60Hz
-
Output Current: 8.3A
-
Output Waveform: True Sine Wave (<3% THD)
-
Peak Efficiency: 90%
-
AC Receptacle: NEMA 5-15 GFCI
-
USB Output: 5V DC, 2.1A
-
Indicators: Status + Warning/Error codes
-
Display: LED – Input voltage, output power, warnings
-
Protections: Undervoltage shutdown (10.5V), Overvoltage shutdown (15.5V), overload, short-circuit, over-temperature
-
Regulatory Compliance: cETLus certified – conforms to UL & CSA standards
⚡ The Kisae SW1210 inverter is the smart choice for Canadians who want a CSA-approved 1000W pure sine wave inverter for RVs, off-grid cabins, and mobile power solutions. Available now at Solar Super Store Canada.
Dimensions (L x W x H):
SW1210: 10.5” x 6.2” x 10.0” (270X160X260mm)
Weight:
SW1210: 6.0 lbs. / 2.7 Kg
