Inverter Specifications
| SKU | KIS-SW1206 |
|---|---|
| Operating type | Off-grid |
| Inverter function | Inverter only |
| Continuous AC output power (W) | 600.0 |
| AC output voltage (V) | 120 |
| AC output frequency (Hz) | 60 |
| AC phase configuration | Single-phase |
| Output waveform | Pure sine wave |
Show all specifications (23)Show fewer specifications
| Battery support | Required |
|---|---|
| Nominal battery voltage (V) | 12 |
| Min battery voltage (V) | 10.5 |
| Max battery voltage (V) | 15.5 |
| Surge output power (W) | 1200.0 |
| Peak efficiency (%) | 90.0 |
| Display | Power and fault indicators |
| Length (mm) | 236.0 |
| Width (mm) | 175.0 |
| Height (mm) | 89.0 |
| Weight (kg) | 2.0 |
| Mounting format | Wall-mounted |
| Certifications | cETLus (UL and CSA standards) |
| Applicable regions and model variants | North America |
| MPN | SW1206 |
Description
SKU: KIS-SW1206
Mfg. SKU: SW1206

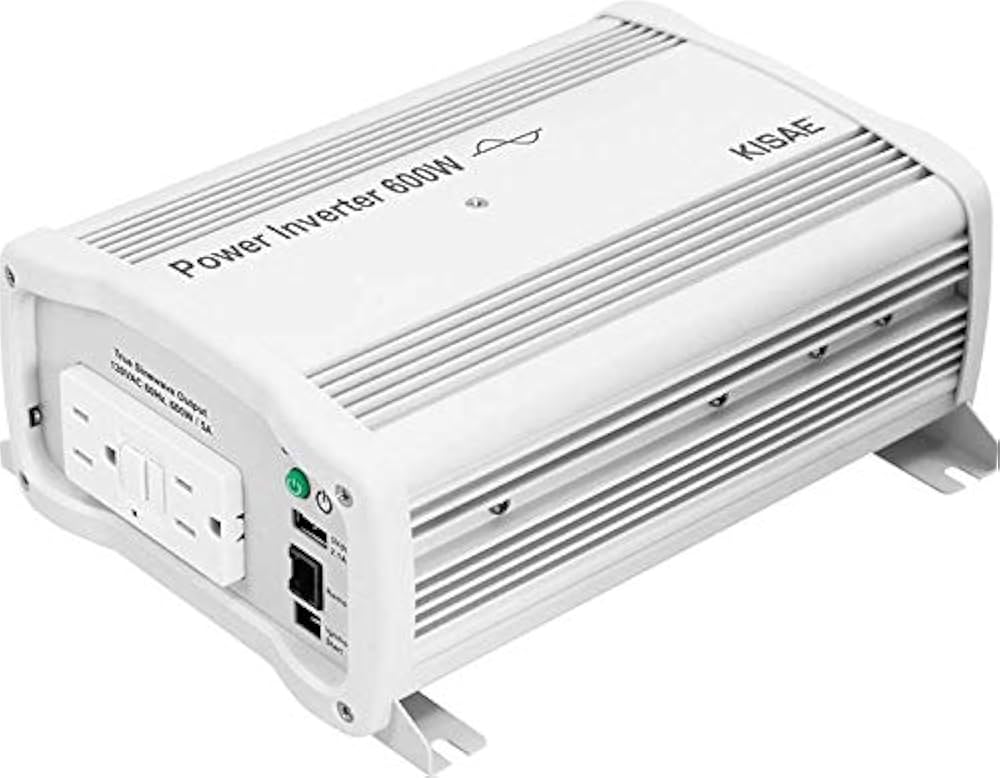

Kisae SW1206 Pure Sine Wave Inverter – 600W, 12V DC to 120V AC (CSA Approved)
The Kisae SW1206 Pure Sine Wave Inverter delivers reliable, clean, and stable AC power for sensitive electronics, appliances, and tools in off-grid, mobile, and backup applications. Designed and CSA approved for use across Canada, this inverter provides peace of mind with safety, durability, and performance that meet Canadian standards.
✅ Pure Sine Wave Output – Compatible with sensitive electronics like laptops, TVs, medical devices, and variable-speed tools.
✅ CSA Approved – Certified safe for Canadian residential, commercial, and off-grid use.
✅ Reliable Power Conversion – Converts 12V DC battery power into 120V AC household power.
✅ Durable & Safe – Integrated protections against overload, short-circuit, over-temperature, and voltage fluctuations.
✅ Compact & Lightweight – Easy to install in RVs, cabins, trailers, or mobile work setups.
Technical Specifications (validated)
-
Model: Kisae SW1206
-
Continuous Power: 600W
-
Surge Power: 1200W
-
Input Voltage: 12V DC
-
Output Voltage: 120V AC ± 5%
-
Output Waveform: Pure Sine Wave
-
Frequency: 60 Hz ± 1%
-
Efficiency: >90%
-
No-Load Current Draw: <0.6A
-
AC Outlets: Dual North American receptacles
-
USB Port: 5V DC, 2.1A for charging electronics
-
Protections: Overload, short-circuit, high/low voltage, over-temperature
-
Cooling: Temperature-controlled cooling fan
-
Operating Temperature: 0°C to 40°C
-
Dimensions: 10 3/8" × 6 7/8" × 3 1/2"
-
Weight: 4.4 lbs (2.0 kg)
