Inverter Specifications

SKUKIS-SW1204
Operating typeOff-grid
Inverter functionInverter only
Continuous AC output power (W)400.0
AC output voltage (V)120
AC output frequency (Hz)60
AC phase configurationSingle-phase
Output waveformPure sine wave
Show all specifications (19)Show fewer specifications
Battery supportRequired
Nominal battery voltage (V)12
Min battery voltage (V)10.5
Max battery voltage (V)15.5
Surge output power (W)800.0
Peak efficiency (%)90.0
DisplayPower and fault indicators
Mounting formatWall-mounted
CertificationscETLus (UL and CSA standards)
Applicable regions and model variantsNorth America
MPNSW1204

Kisae 400W True Sine Wave Power Inverter | SW1204

Save $11.00

Price:
Sale price$239.00 Regular price$250.00

Description

SKU: KIS-SW1204

Mfg. SKU: SW1204

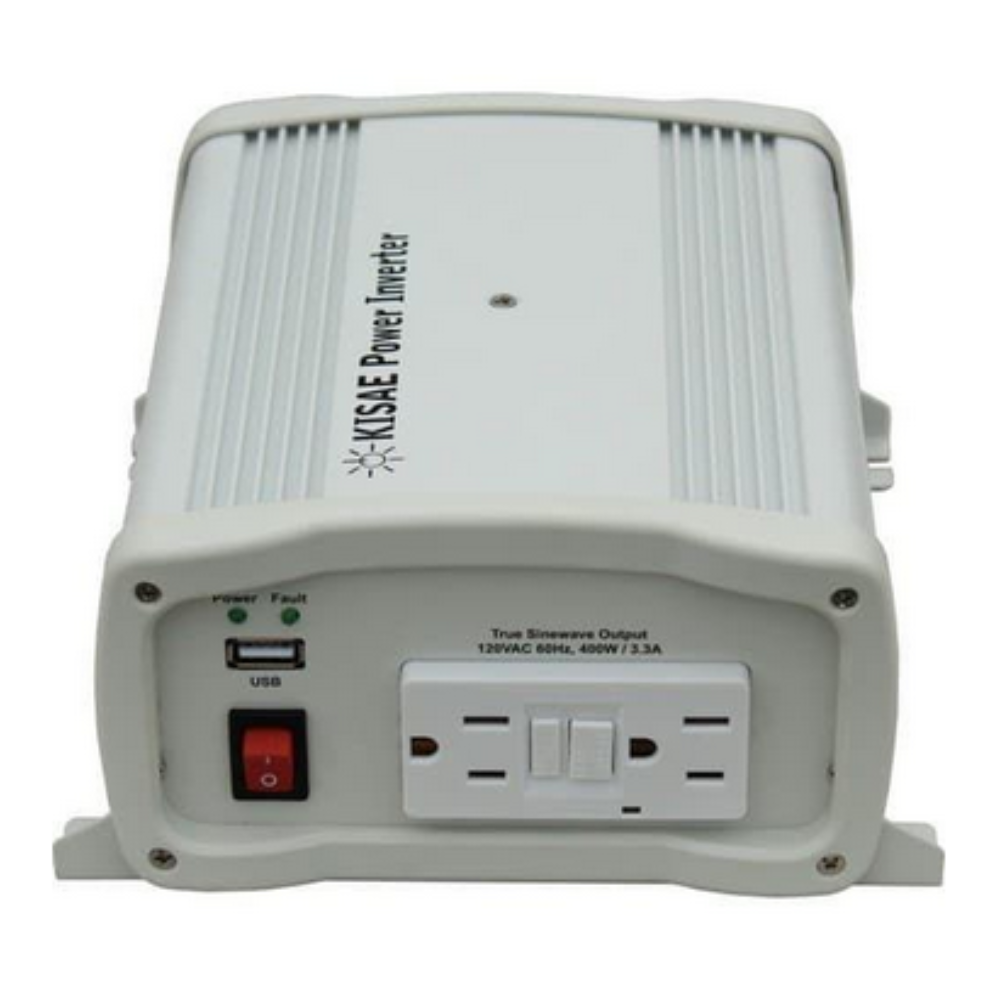

KISAE SW1204 – 400W True Sine Wave Power Inverter (12V to 120VAC)

The KISAE SW1204 is a premium 400W true sine wave power inverter designed to provide clean, reliable AC power from a 12V DC source. Compact, lightweight, and CSA-certified, it’s perfect for powering small appliances, sensitive electronics, and portable devices in Canadian RVs, boats, trucks, cottages, and off-grid applications.

With 400W continuous output and 800W surge capacity, the SW1204 ensures dependable power for laptops, TVs, mobile chargers, and other electronics. Built-in protections, GFCI outlets, and a USB port make it a safe and versatile choice for both mobile and stationary use.


⚡ Features & Benefits

  • Premium True Sine Wave Output: Clean, pure sine wave power (<3% THD) protects sensitive electronics.

  • Reliable Performance: 400W continuous and 800W peak output for small appliances and devices.

  • Safety Assured:

    • Low battery shutdown to prevent deep discharge.

    • Over-temperature shutdown for equipment safety.

    • GFCI and breaker-protected outlets (North American models).

  • Convenient Power Options: Integrated 5V USB port for phones and USB-equipped devices.

  • International Versions Available: Models with outlets for USA/Canada, UK, EU, and AU/NZ.

  • Quiet Operation: Silent, fan-controlled cooling.

  • Compact & Flexible: Lightweight, wall-mountable design for easy storage and installation.

  • Optional Remote ON/OFF: Available accessory for added convenience.


📊 Technical Specifications (SW1204 – 120VAC Model)

AC Output

  • Continuous Power: 400W

  • Peak Power: 800W

  • Voltage/Frequency: 120VAC / 60Hz

  • Waveform: True sine wave (<3% THD)

  • Peak Efficiency: 90%

  • Outlet: NEMA 5-15

DC Output

  • USB Port: 5V / 750mA

DC Input

  • Nominal Voltage: 12.5V DC

  • Operating Range: 10.5 – 15.5V DC

  • Standby Current: <0.3A

Safety & Protection

  • Input Undervoltage Shutdown: 10.5V DC

  • Input Overvoltage Shutdown: 15.5V DC

Display & Indicators

  • LED Indicators: Power, Fault

Enclosure & Build

  • Dimensions: 6.9 × 7.9 × 2.3 in (175 × 201 × 58 mm)

  • Weight: 3.8 lbs (1.7 kg)

  • Certification: cETLus listed, conforms to UL & CSA standards


Why Choose the KISAE SW1204 in Canada?
Compact yet powerful, the KISAE SW1204 delivers safe, pure sine wave power for Canadians who need reliable off-grid or backup energy. From road trips to cottages to marine use, it’s the ideal inverter for sensitive electronics and light-duty appliances.
