Inverter Specifications
| SKU | KIS-IC121040 |
|---|---|
| Operating type | Off-grid |
| Inverter function | Inverter/charger |
| Continuous AC output power (W) | 1000.0 |
| AC output rating conditions | Automatic AC transfer time <30 ms. |
| AC output voltage (V) | 120 |
| AC output frequency (Hz) | 60 |
| AC phase configuration | Single-phase |
Show all specifications (31)Show fewer specifications
| Output waveform | Pure sine wave |
|---|---|
| Battery support | Required |
| Nominal battery voltage (V) | 12 |
| Min battery voltage (V) | 10.5 |
| Max battery voltage (V) | 15.5 |
| Supported battery chemistries | Gel, Flooded lead-acid, AGM |
| Outage backup capability | Yes |
| Backup/EPS output power (W) | 1000.0 |
| Backup output voltage (V) | 120 |
| Surge output power (W) | 2000.0 |
| Max AC battery charging current (A) | 40.0 |
| AC input voltage (V) | 120 |
| AC input frequency (Hz) | 60 |
| AC pass-through current (A) | 30.0 |
| Peak efficiency (%) | 90.0 |
| Display | Remote LED digital display and status indicators |
| Length (mm) | 230.0 |
| Width (mm) | 478.0 |
| Height (mm) | 114.0 |
| Weight (kg) | 5.7 |
| Certifications | cETLus (UL and CSA standards) |
| Applicable regions and model variants | North America |
| MPN | IC121040 |
Description
SKU: KIS-IC121040
Mfg. SKU: IC121040

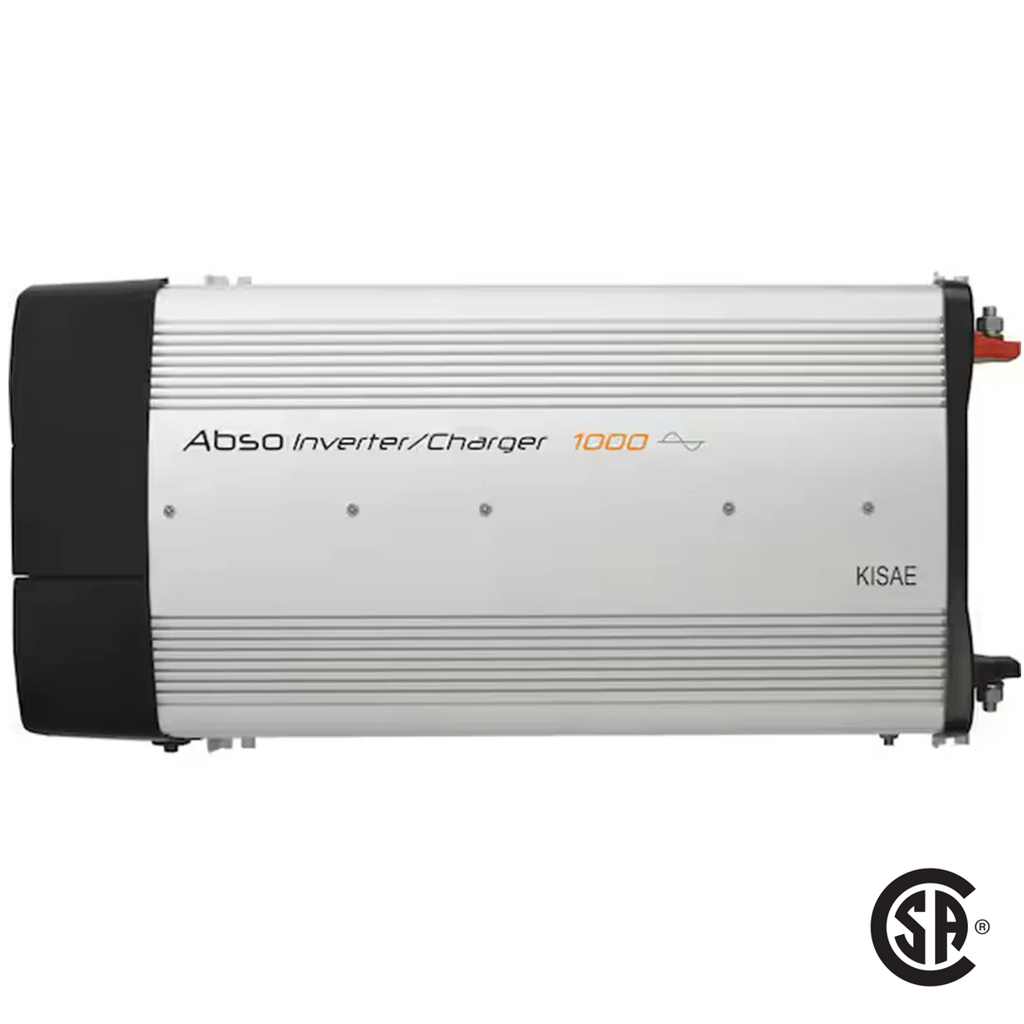

Kisae IC121040 Abso Inverter-Charger – 1000W True Sine Wave with 40A Charger (CSA Approved)
The Kisae IC121040 Abso Inverter-Charger combines a 1000W pure sine wave inverter with a 40A multi-stage battery charger and an integrated transfer switch, giving you reliable AC power and safe battery charging in a single compact unit. Built for RVs, boats, cabins, trucks, and residential backup systems, this all-in-one solution is CSA approved for safe use across Canada.
✅ True Sine Wave Output – Clean, stable 120V AC power for sensitive electronics, appliances, and tools.
✅ Integrated 40A Charger – Multi-stage charging for Gel, Flooded, and AGM batteries with float protection.
✅ Automatic Transfer Switch – Seamless switchover (<30ms) between shore power and battery power.
✅ Comprehensive Protection – Safeguards against overload, short-circuit, high/low voltage, and overheating.
✅ Compact Design – Lightweight, efficient, and easy to install in RVs, off-grid cabins, or mobile work units.
✅ CSA/UL Certified – Fully compliant for Canadian residential and commercial applications.
Technical Specifications (IC121040)
-
Inverter Output (Continuous): 1000W
-
Surge Power: 2000W
-
AC Output Voltage/Frequency: 120V AC, 60Hz
-
AC Output Current: 8.3A
-
Waveform: True Sine Wave (<3% THD)
-
Peak Efficiency: 90%
-
Input Voltage (Nominal): 12.5V DC (operating range 10.5–15.5V DC)
-
No-Load Current Draw: <1.5A
-
Battery Charger: 40A, 3-stage (bulk, absorption, float)
-
Charger Voltage Range: 13.5–14.4V
-
Float Voltage Range: 13.4–13.8V
-
Battery Types Supported: Gel, Flooded, AGM
-
Transfer Switch: <30ms, 30A relay
-
Regulatory Compliance: cETLus listed – conforms to CSA and UL standards
-
Dimensions: 9.0" × 18.8" × 4.5"
-
Weight: 12.5 lbs (5.7 kg)
Why Buy from Solar Super Store Canada?
-
🇨🇦 CSA Certified for Canadian compliance
-
🚚 Ships quickly from Canadian warehouses
-
🌞 Ideal for RVs, boats, off-grid cabins, and residential solar backup
-
🛠️ Trusted by Canadian installers for quality and reliability
⚡ The Kisae IC121040 Abso Inverter-Charger is the smart choice for Canadians seeking safe, reliable, and efficient off-grid or backup power. Available now at Solar Super Store Canada.
