Inverter Specifications
| SKU | KIS-BIC1220080 |
|---|---|
| Operating type | Off-grid |
| Inverter function | Inverter/charger |
| Continuous AC output power (W) | 2000.0 |
| AC output rating conditions | Automatic AC transfer time <30 ms. |
| AC output voltage (V) | 120 |
| AC output frequency (Hz) | 60 |
| AC phase configuration | Single-phase |
Show all specifications (35)Show fewer specifications
| Output waveform | Pure sine wave |
|---|---|
| Battery support | Required |
| Nominal battery voltage (V) | 12 |
| Min battery voltage (V) | 10.5 |
| Max battery voltage (V) | 16.5 |
| Supported battery chemistries | Gel, Flooded lead-acid, AGM |
| Outage backup capability | Yes |
| Backup/EPS output power (W) | 2000.0 |
| Backup output voltage (V) | 120 |
| Surge output power (W) | 4000.0 |
| Surge duration (s) | 1.0 |
| Max AC battery charging current (A) | 80.0 |
| Battery charging limit conditions | AC charging current reduces when AC loads require power. Lithium charge settings require battery-specific configuration. |
| AC input voltage (V) | 120 |
| AC input frequency (Hz) | 60 |
| AC pass-through current (A) | 30.0 |
| Peak efficiency (%) | 90.0 |
| Standard warranty (years) | 1.0 |
| Display | LED status indicators; external backlit LCD remote display |
| Communication interfaces | CAN bus, USB (software upgrade) |
| Length (mm) | 391.0 |
| Width (mm) | 302.0 |
| Height (mm) | 106.0 |
| Weight (kg) | 8.0 |
| Certifications | cETLus (UL and CSA standards) |
| Applicable regions and model variants | North America |
| MPN | BIC1220080 |
Description
SKU: KIS-BIC1220080
Mfg. SKU: BIC1220080

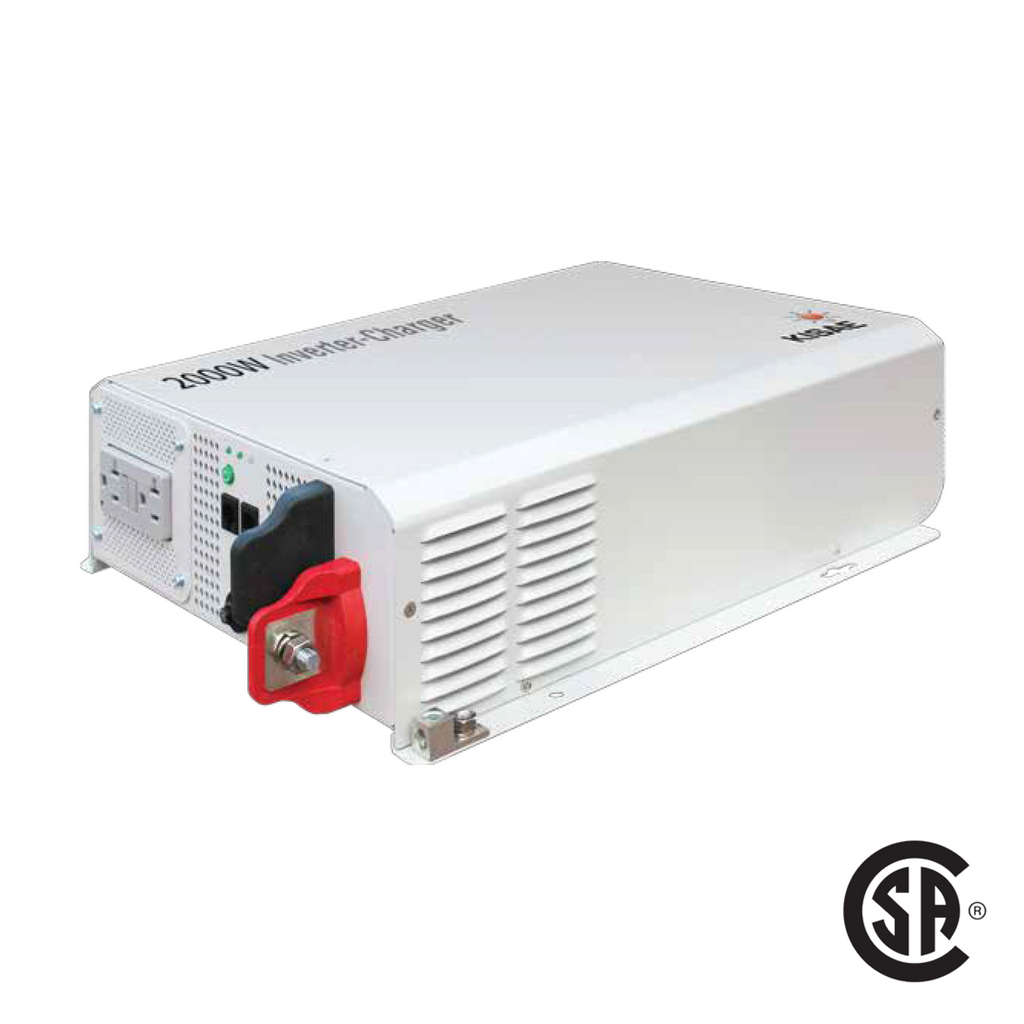

Kisae BIC1220080 Bi-Directional Inverter-Charger – 2000W, 12V DC to 120V AC with 80A Charger (CSA Approved)
The Kisae BIC1220080 Bi-Directional Inverter-Charger is a powerful all-in-one solution that integrates a 2000W pure sine wave inverter, an 80A multi-stage battery charger, and a 30A automatic transfer switch. Perfect for RVs, boats, off-grid cabins, mobile work trailers, and residential backup systems, this inverter-charger is CSA/UL certified, ensuring safe and reliable use across Canada.
✅ True Sine Wave Inverter (2000W Continuous / 4000W Surge) – Delivers clean, utility-grade AC power for sensitive electronics, appliances, and tools.
✅ Integrated 80A Smart Charger – Multi-stage charging for lead-acid (Flooded, AGM, Gel) and lithium batteries.
✅ Automatic Transfer Switch (30A) – Seamless switchover between shore power and inverter power.
✅ Bi-Directional Functionality – Supports charging batteries from AC input and supplying AC loads from DC simultaneously.
✅ Comprehensive Protection – Safeguards against overload, short-circuit, over-temperature, and under/over-voltage conditions.
✅ CSA/UL Certified – Fully approved for Canadian residential, commercial, and mobile power installations.
Technical Specifications (BIC1220080)
-
Inverter Continuous Power: 2000W
-
Surge Power: 4000W
-
Input Voltage (DC): 12V (10.5 – 16.5V operating range)
-
AC Output Voltage/Frequency: 120V AC ± 5%, 60Hz
-
Waveform: Pure Sine Wave (<5% THD)
-
Charger Current: 80A DC max
-
Charger Voltage Range: 10.5 – 16.5V (programmable for different chemistries)
-
Transfer Switch: 30A, <20ms transfer time
-
Efficiency: 90% peak
-
Cooling: Temperature-controlled fan
-
Display/Monitoring: LED indicators and digital panel for voltage, current, and system status
-
Dimensions: 15.2" × 13.6" × 7.9" (387 × 345 × 200 mm)
-
Weight: 34 lbs (15.5 kg)
-
Certifications: cETLus Listed – Conforms to CSA and UL Standards
Why Buy from Solar Super Store Canada?
-
🇨🇦 CSA Approved – Safe and compliant for Canadian use
-
🚚 Ships from Canada – No cross-border delays or duties
-
🌞 Ideal for RVs, off-grid cabins, trailers, marine, and residential solar backup
-
🛠️ Trusted by Canadian installers for reliability and performance
⚡ The Kisae BIC1220080 Bi-Directional Inverter-Charger is the ultimate Canadian-approved solution for powering, charging, and protecting your off-grid or backup energy system. Available now at Solar Super Store Canada.
Dimensions (L x W x H):
Dimension: 15.4" x 11.9" x 4.2"
Weight:: 17.6 lbs. / 8 Kg
