Solar Panel Specifications
| SKU: | JAS-JAM60D41-495-LB |
|---|---|
| Manufacturer | JA SOLAR |
| Wattage | 495 W |
| Open-circuit voltage (Voc) | 44.8 V |
| Short-circuit current (Isc) | 14.0 A |
| Dimensions (L × W × H) | 76.89 × 44.65 × 1.18 in |
| Weight | 60.19 lb |
| Mono/Bifacial | Bifacial |
Show all specifications (16) Show fewer specifications
| Body type | Rigid-Glass |
|---|---|
| Cell type | Mono |
| Cell configuration | 120 (6 x 20) |
| Max-power voltage (Vmp) | 38.08 V |
| Max-power current (Imp) | 13.0 A |
| Max system voltage | 1500 V |
| Efficiency | 22.4% |
| Manufacturer’s Warranty | Product: 25 years Performance: 30 years |
Description

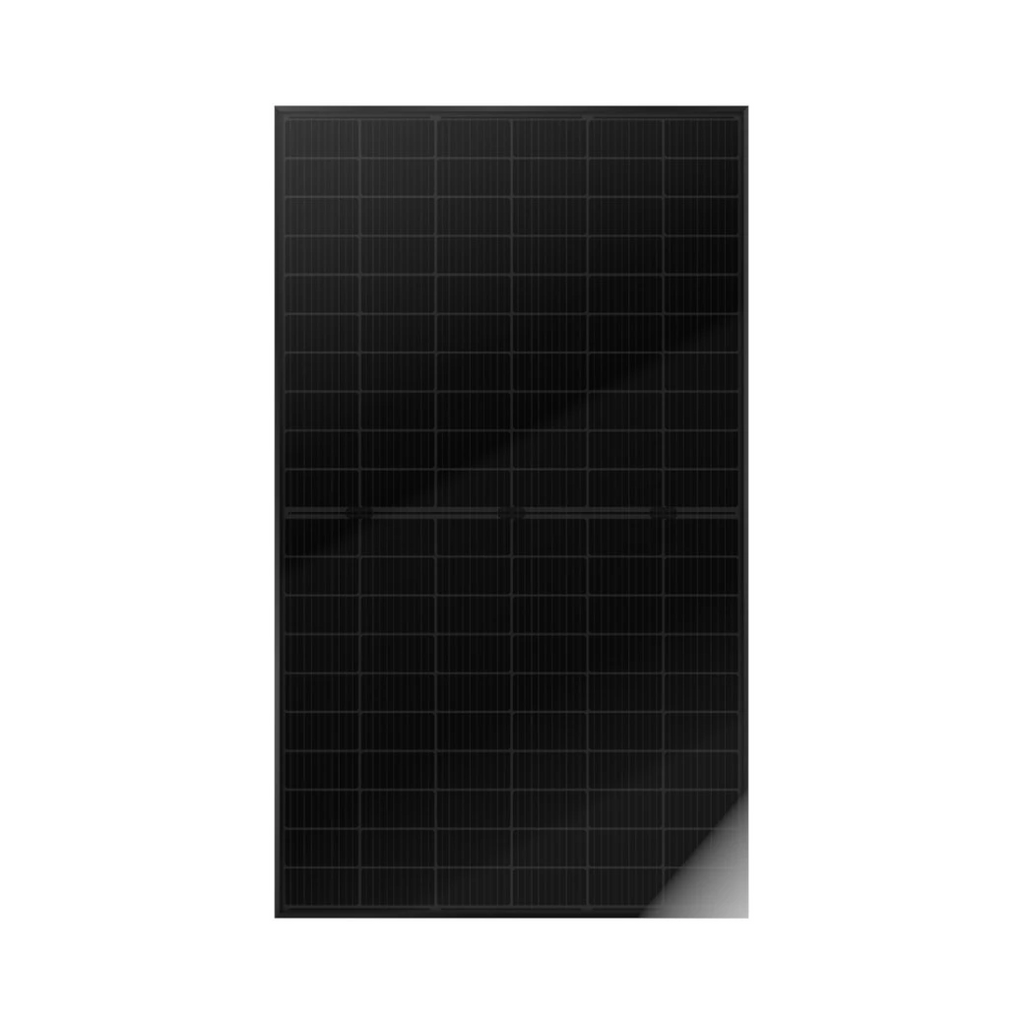

The JA Solar JAM60D41-495/LB is a 495W n-type monocrystalline, double-glass bifacial solar panel with a black finish. Its 22.4% module efficiency helps make the most of available installation space, while bifacial construction can capture light from the rear when installation conditions allow.
Rated output is 495W under standard test conditions. Key electrical ratings are 44.8V open-circuit voltage (Voc), 38.08V operating voltage (Vmp), 14A short-circuit current (Isc), and 13A operating current (Imp).
The module measures 1,953 × 1,134 × 30 mm and weighs 27.3 kg. The applicable manufacturer datasheet specifies a 25-year product warranty and a 30-year linear power-output warranty, subject to manufacturer terms.
Volume pricing
| Quantity | Price per panel |
|---|---|
| 1–2 panels | $230.00 |
| 3–9 panels | $192.00 |
| 10–35 panels | $176.00 |
| 36+ panels | $153.00 |
