Description
SKU: IMO-PE69-3063
Mfg. SKU: PE69-3063

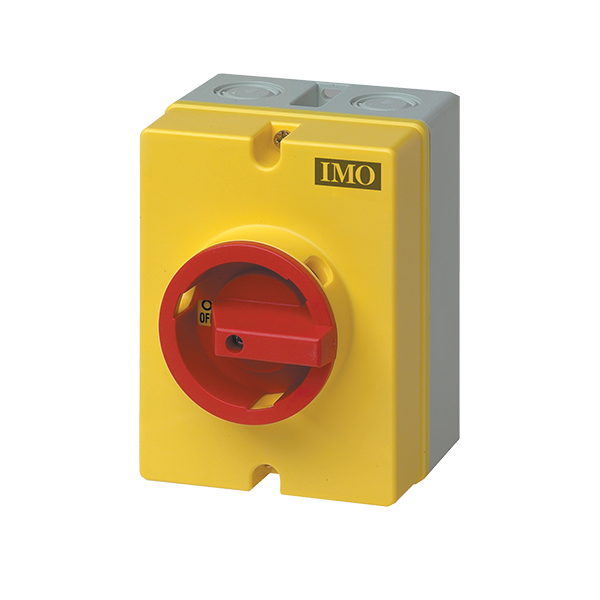

IMO PE69-3063 63A 3-Pole Isolator Switch in Canada – Heavy-Duty, Weatherproof
The IMO PE69-3063 is a rugged 63A 3-pole AC isolator switch built to handle demanding on-load switching applications in industrial, solar, and battery system environments. With a high-visibility red/yellow handle, IP66/NEMA 4X protection, and support for up to 3 padlocks in the OFF position, this switch ensures safe and secure disconnection under load.
CSA-compliant and UL-approved, the PE69-3063 is ready for both indoor and outdoor installations across Canada—from solar farms and backup battery enclosures to commercial machinery and power distribution panels.
🔧 Key Features:
-
Rated Current: 63A On-Load Switching
-
Voltage Rating: 690V Insulation (Ui)
-
Duty Ratings @ 415V:
-
AC21 & AC22: 63A
-
AC23: 18.5kW
-
-
Enclosure Rating: IP66 / NEMA 4X – Weatherproof and Dustproof
-
Mounting Options: Enclosed, Panel Mount, Base Mount, or DIN Rail
-
Handle: Red/Yellow High Visibility, Lockable in 3 positions
-
UL Approved / CSA-Compatible
-
Max Cable Size: 25 mm²
-
Dimensions (L × H × D): 5.5" × 7.875" × 3.5"
Use Cases Across Canada:
-
🏭 Industrial motor isolator for warehouse equipment
-
☀️ Solar PV AC disconnect switch for commercial or rooftop installs
-
🔋 Battery backup & energy storage system isolator
-
⚡ HVAC, pump stations, and machinery maintenance safety switch
-
🌧️ Perfect for Canadian winters – IP66 keeps snow, rain, and dust out
Why Installers Trust This Model in Canada:
-
🇨🇦 Local stock & fast shipping from within Canada
-
❄️ Engineered for harsh temperatures and weather
-
🔐 Secure lock-off for maintenance safety compliance
-
📦 Trusted by solar EPCs, electricians, and contractors nationwide
