Solar Panel Specifications
| SKU: | CSI-CS6.2-66TB-620H |
|---|---|
| Wattage | 620 W |
| Open-circuit voltage (Voc) | 48.4 V |
| Short-circuit current (Isc) | 16.08 A |
| Dimensions (L × W × H) | 93.78 × 44.65 × 1.57 in |
| Weight | 73.6 lb |
| Mono/Bifacial | Bifacial |
| Body type | Double glass (2.0 mm front / 2.0 mm rear); anodized aluminium frame |
Show all specifications (15) Show fewer specifications
| Cell type | N-type TOPCon |
|---|---|
| Cell configuration | 132 half-cells [2 × (11 × 6)] |
| Max-power voltage (Vmp) | 41.2 V |
| Max-power current (Imp) | 15.06 A |
| Max system voltage | 1500 V |
| Efficiency | 23.0% |
| Manufacturer’s Warranty | Product: 12 years Performance: 30 years |
Description
SKU: CSI-CS6.2-66TB-620H
Manufacturer model: CS6.2-66TB-620H

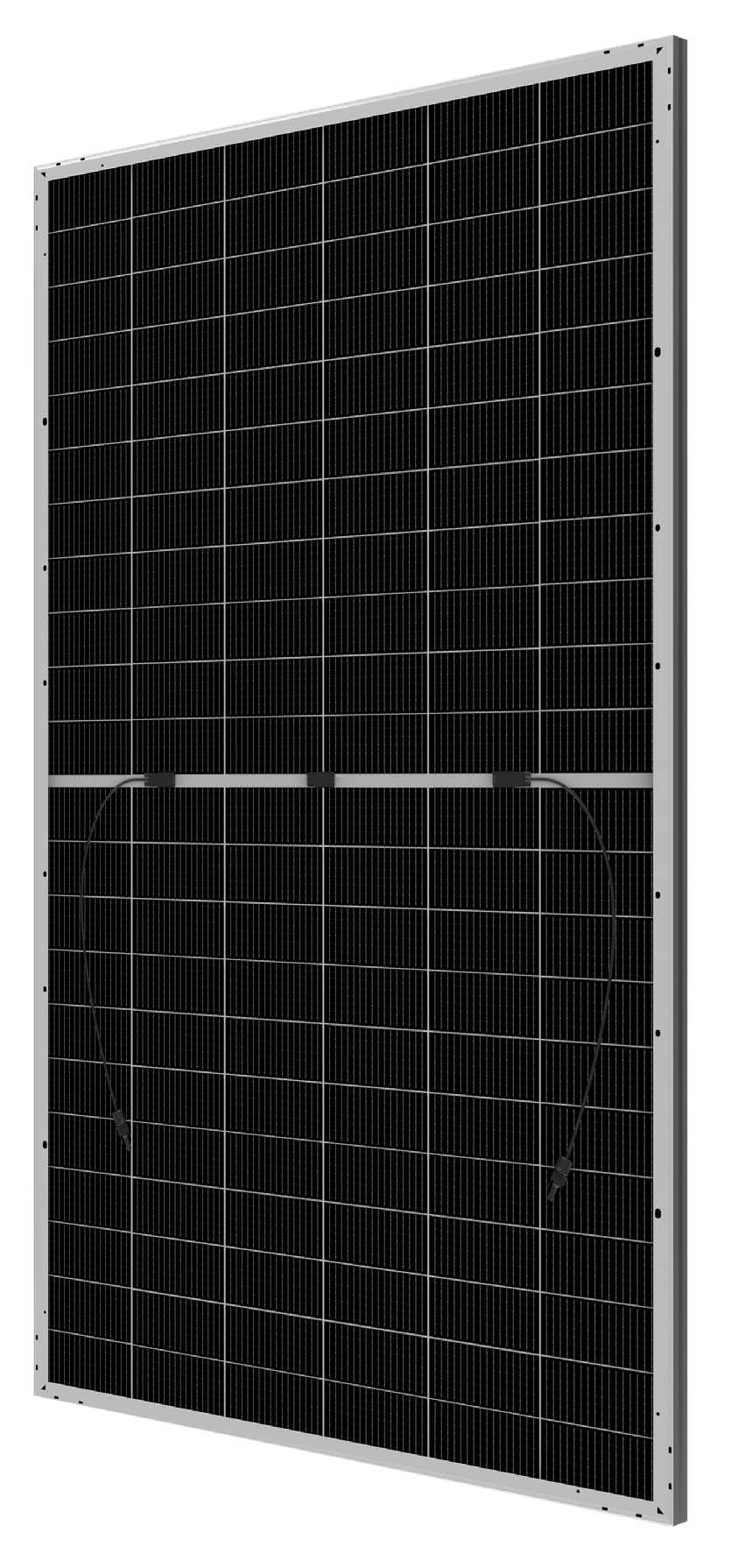

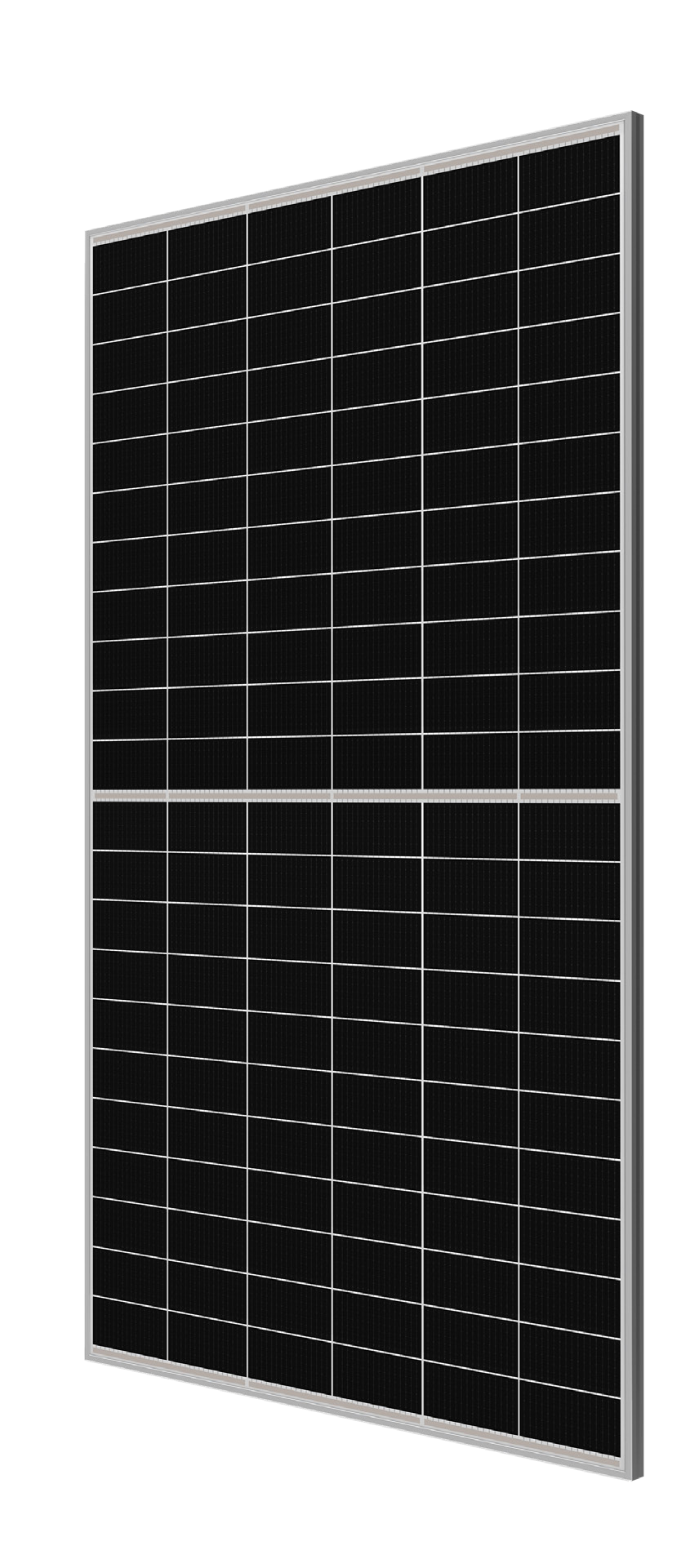

The Canadian Solar TOPBiHiKu6 is a 620W bifacial solar panel with N-type TOPCon cells and double-glass construction. Its 23.0% module efficiency supports high power output in a compact installation footprint. Rear-side energy gain depends on mounting, ground reflectivity and site conditions.
- 132 half-cells; anodized aluminium frame
- STC ratings: Vmp 41.2V, Imp 15.06A, Voc 48.4V, Isc 16.08A
- Maximum system voltage: 1500V DC; maximum series fuse: 35A
- Dimensions: 2382 × 1134 × 40 mm (93.8 × 44.6 × 1.57 in)
- Weight: 33.4 kg (73.6 lb)
- 12-year product warranty and 30-year linear power performance warranty, subject to manufacturer terms
Volume pricing (CAD per panel)
| Quantity | Price per panel |
|---|---|
| 1–2 panels | $275.00 |
| 3–9 panels | $235.00 |
| 10–26 panels | $205.00 |
| 27+ panels | $189.00 |
A full pallet contains 27 panels: $5,103.00 at the pallet rate. Taxes, delivery and applicable recycling fees are additional.
