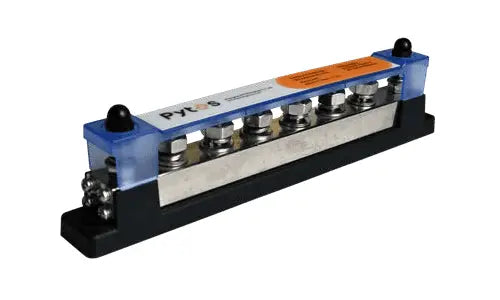

Busbar 300A Type 2 – Busbar 300 A 2P with 6 screws and cover
The Busbar 300A Type 2 is a robust and efficient power distribution component, designed to ensure reliable and secure electrical connections for a variety of applications. With its high current and voltage ratings, this busbar is ideal for both residential and commercial energy systems, providing a safe, space-efficient solution for power management.
Key Features and Specifications:
Max. Current Rating: 300 A
Max. Voltage Rating: 52 VDC or 300 VAC
Terminal Diameter: M8 / 8mm
Terminal Height: 30mm
Terminal Material: Stainless Steel for durability and corrosion resistance
Hex Nut Material: Stainless Steel
Recommended Torque: 7 N·m
Terminals Screw: M6 / 6mm
Busbar Strip Material: Tin-Plated Copper (8 x 25 mm) for excellent conductivity
Base Material: ABS (Black)
Cover Material: Clear Polycarbonate for enhanced visibility and protection
Weight: 0.48 kg
Dimensions (with cover): 200 x 34 x 59 mm | 7.87 x 1.34 x 2.32 inches
Benefits of the Busbar 300A Type 2:
High Current Capacity: With a 300A rating, this busbar can handle heavy power loads, ensuring your system operates efficiently even under demanding conditions.
Versatile Voltage Support: Suitable for both low-voltage DC systems and higher AC voltages, making it adaptable for various energy systems, including solar, battery storage, and backup power applications.
Durable and Reliable Construction: Stainless steel terminals and a tin-plated copper strip offer long-lasting performance and corrosion resistance, ensuring optimal performance over time.
Clear Polycarbonate Cover: The transparent cover provides visibility while ensuring safety by protecting the terminals from external elements.
Compact Design: Its space-efficient design allows for easy integration into systems with limited space, ideal for both residential and commercial energy setups.
Easy Installation: The busbar features 12 screw terminals and a recommended torque setting, ensuring a secure and reliable connection for all wiring.
Common Applications:
Solar Power Systems: Use for efficient power distribution in off-grid and grid-tied solar applications.
Battery Storage Systems: Ideal for managing connections in battery banks, ensuring safety and reliability.
Backup Power Solutions: Essential in uninterruptible power supply (UPS) systems to ensure seamless power transfer.
Industrial & Commercial Use: Suitable for use in various industrial and commercial power distribution systems, including data centers and manufacturing facilities.
Why Choose the Busbar 300A Type 2?
Canadian-Optimized Design: Built to handle the diverse and demanding conditions of the Canadian market, this busbar ensures reliable power distribution for both residential and commercial systems.
Efficient Power Management: Streamline your energy distribution with a highly efficient and durable solution, reducing the risk of power loss and improving system reliability.
Enhanced Safety: With its clear polycarbonate cover, stainless steel terminals, and secure connections, this busbar ensures a safe and reliable operation for your energy systems.
DataSheet
