SKU: KIS-AC1260
Mfg. SKU: AC1260

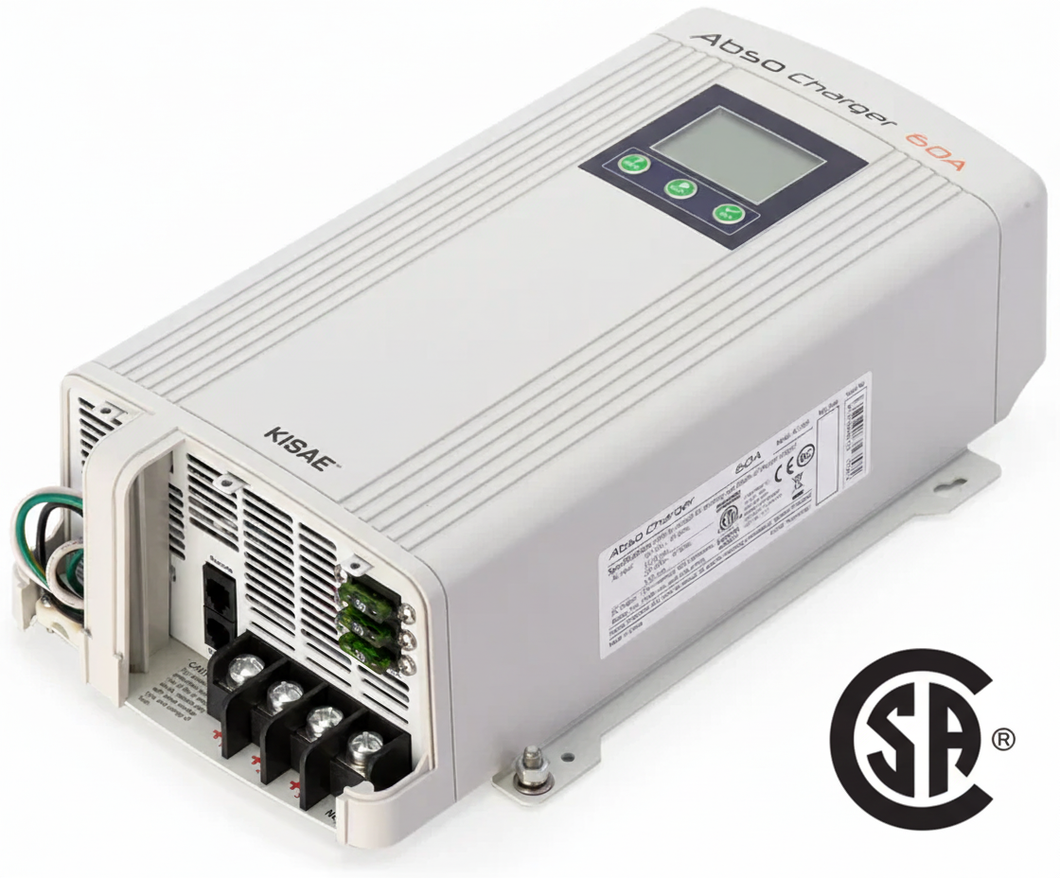

High-performance charging for Canadian off-grid, RV, marine, and backup power systems.The KISAE AC1260 ABSO Charger is a smart 12V / 60A AC-to-DC battery charger designed to maximize battery life and performance. With advanced microprocessor control, this charger uses a multi-stage charging algorithm (Bulk, Absorption, Float, Equalization) to meet manufacturer specifications for Gel, AGM, Lithium, and Flooded batteries.
Its 3-bank charging capability allows you to prioritize and charge different battery chemistries simultaneously—making it ideal for house banks, starter batteries, and auxiliary storage. Built for reliability, the AC1260 carries cETLus certification and conforms to UL and CSA standards for use across Canada and North America.
Smart Multi-Stage Charging: Bulk, Absorption, Float, and Equalization modes for optimized battery health.
Supports Multiple Chemistries: Gel, AGM, Lithium, Flooded.
3-Bank Charging: Charge and manage up to three battery banks at once.
Selectable Battery Type: Flexible setup to match your system needs.
Advanced Protection: Reverse polarity shutdown with auto-reset, short circuit protection, and optional battery temperature sensor.
LCD Display: Backlit screen showing voltage, current, charging status, and error codes.
Force Air Ventilation: Ensures safe cooling during high-demand operation.
CSA & UL Certified: Fully compliant with Canadian and U.S. safety standards.
AC Input Voltage Range: 90–265V AC, 47–63Hz
Supported Input Voltages: 120V, 230V, 240V
Output Voltage (Nominal): 12V
Max Output Current: 60A
Power Rating: 1050W, power factor correction included
Parasitic Current: < 2mA
Ingress Protection: IP32
Dimensions: 14.2" L × 8.1" W × 3.8" H (356 × 206 × 96 mm)
Weight: 8.8 lbs (4.0 kg)
Certifications: cETLus, UL, CSA, FCC Part 15 Class B
Remote Panel (RM1201-00): Monitor and adjust charger settings, parallel connect chargers.
Battery Temperature Sensor (BTS 10K): Automatically adjusts charging voltage based on battery temperature.
