SKU: LXP-LB-US-12K
Mfg. SKU: LB-US-12K

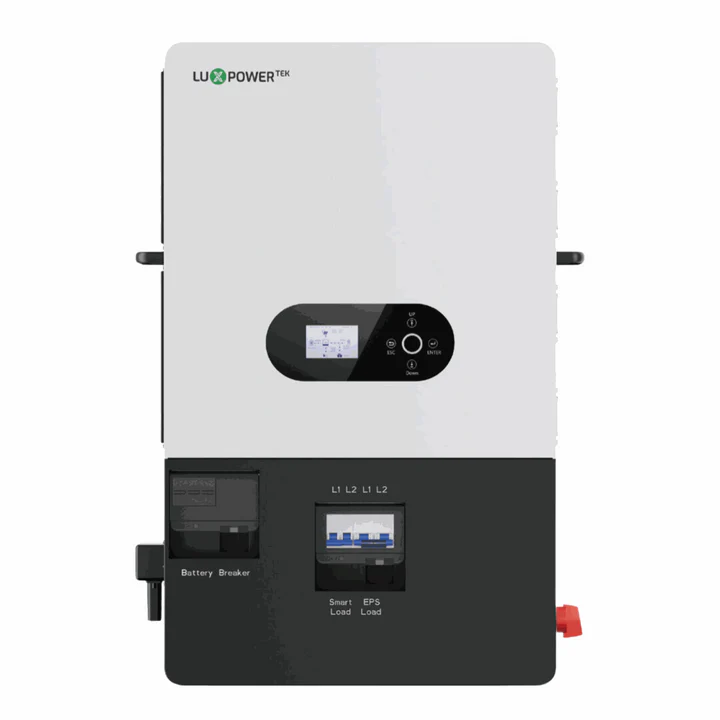

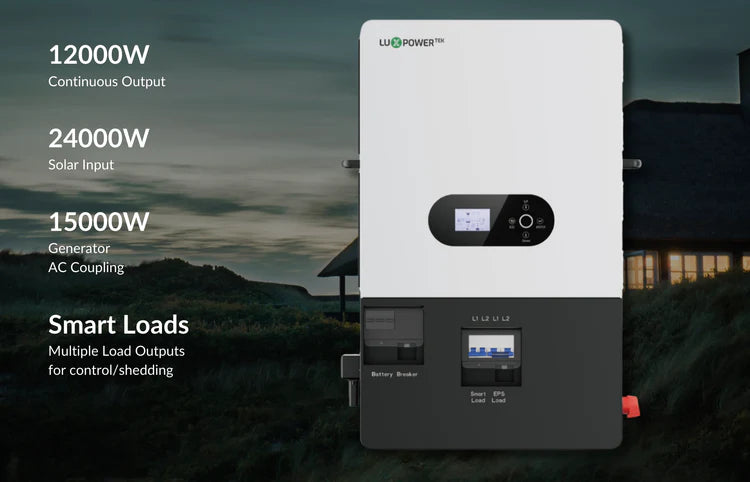

The LuxPower SNA-US-12K Off-Grid Split-Phase Solar Inverter (12000XP) is a high-output energy solution built for full independence from the grid. Delivering 12 kW of continuous split-phase power (240 V / 120 V), it efficiently manages solar, battery, and generator inputs to keep your property powered under any condition.With dual MPPTs supporting up to 24 kW of PV input, a 250 A charge / discharge capacity, and integrated AFCI protection, it’s designed for durability, safety, and high-efficiency performance in Canadian environments.
Ideal for off-grid homes, farms, commercial systems, and remote sites, this inverter ensures uninterrupted power with smart cooling, intelligent monitoring, and the flexibility to integrate multiple energy sources.
240 V / 120 V Split-Phase Off-Grid Output
Runs both standard household circuits and heavy-duty appliances.
Dual-voltage compatibility makes it suitable for residential, commercial, and rural applications.
Dual MPPTs with 24 kW PV Input
Two independent Maximum Power Point Trackers (MPPTs) for multi-array optimization.
Input Voltage Range: 100 – 480 V DC
MPPT Operating Range: 120 – 385 V DC
Max PV Input Current: 35 A × 2 (44 A short-circuit per MPPT)
High MPPT efficiency of 99 % ensures maximum solar harvest even under shading or varied conditions.
250 A High-Capacity Charge / Discharge
Rapid charging for large battery banks with fast response under peak load.
Maintains system stability and extends battery life through intelligent current control.
Built-in AFCI Protection
Detects and isolates arc faults to prevent electrical fires.
Ensures secure, continuous operation in residential or remote systems.
Dual AC Outputs + Generator Support
Power multiple load groups at once via dual AC output ports.
Dedicated generator port with auto-start/stop and support for up to 19.2 kW of generator or AC-coupled input.
Seamless transition between power sources for true off-grid autonomy.
Smart Cooling & Quiet Operation
Adaptive fan control maintains temperature efficiency.
Operates at < 50 dB for quiet performance and extended component life.
Comprehensive Monitoring & Connectivity
LCD + RGB display provides real-time operating data.
Remote control and monitoring via RS-485, Wi-Fi, and CAN interfaces.
Enables energy tracking and configuration from anywhere.
Certified for Canadian Standards
Fully CSA and UL certified for safe, compliant operation across all provinces.
Solar Super Store is Canada’s trusted source for LuxPower off-grid and split-phase solar inverters.Every unit we stock is fully certified, locally available, and supported by technical experts who understand Canadian electrical standards and off-grid energy design.
