Portable Power Station Specifications
| SKU | KIS-PPS1230200 |
|---|---|
| Operating type | Off-grid |
| Inverter function | Inverter/charger |
| Continuous AC output power (W) | 3000.0 |
| AC output rating conditions | Automatic AC transfer time <30 ms. |
| AC output voltage (V) | 120 |
| AC output frequency (Hz) | 60 |
| AC phase configuration | Single-phase |
Show all specifications (36)Show fewer specifications
| Output waveform | Pure sine wave |
|---|---|
| Battery support | Required |
| Nominal battery voltage (V) | 12 |
| Min battery voltage (V) | 10.5 |
| Max battery voltage (V) | 16.5 |
| Supported battery chemistries | Gel, Flooded lead-acid, AGM |
| Outage backup capability | Yes |
| Backup/EPS output power (W) | 3000.0 |
| Backup output voltage (V) | 120 |
| Surge output power (W) | 6000.0 |
| Surge duration (s) | 1.0 |
| Solar PV input supported | Yes |
| Solar battery charging supported | Yes |
| Max AC battery charging current (A) | 100.0 |
| Max combined battery charging current (A) | 200.0 |
| Battery charging limit conditions | Up to 100 A from AC plus two independent 50 A DC chargers. Each DC charger accepts alternator or PV input; 200 A is the combined charging limit. |
| AC input voltage (V) | 120 |
| AC input frequency (Hz) | 60 |
| AC pass-through current (A) | 30.0 |
| Peak efficiency (%) | 90.0 |
| Display | LED status indicators; external backlit LCD remote display |
| Communication interfaces | CAN bus, USB (software upgrade) |
| Length (mm) | 500.0 |
| Width (mm) | 307.0 |
| Height (mm) | 157.0 |
| Certifications | cETLus (UL and CSA standards) |
| Applicable regions and model variants | North America |
| MPN | PPS1230200 |
Description
SKU: KIS-PPS1230200
Mfg. SKU: PPS1230200

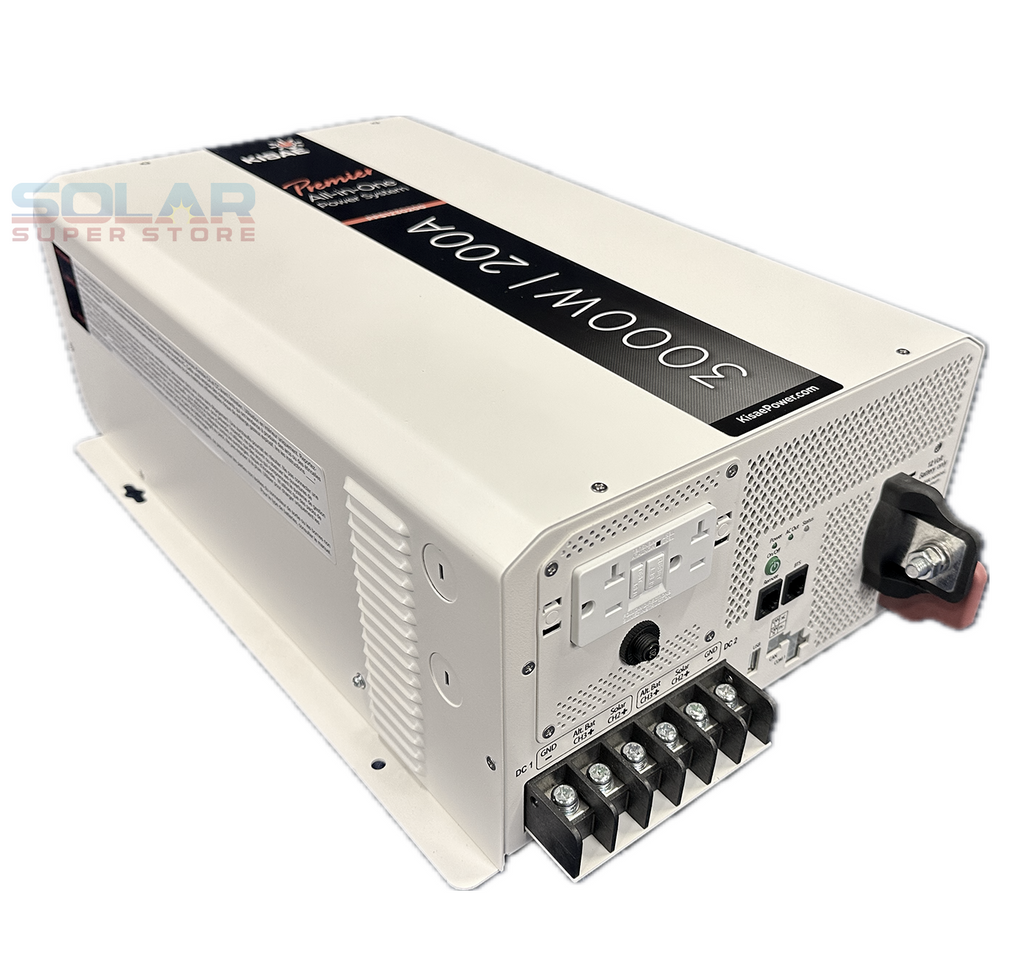

KISAE PPS1230200 Bi-Directional Inverter-Charger – 3000W Inverter + 200A Charger (CSA/UL Certified, Canada)
Premier all-in-one power system for Canadian off-grid, RV, and marine energy setups.
The KISAE PPS1230200 combines a 3000W pure sine wave inverter, 100A AC charger, dual 50A DC-DC chargers, and an integrated PV controller into one powerful bi-directional unit. Built for versatility and reliability, this system ensures seamless power transfer, smart charging, and compatibility with multiple energy sources—shore power, alternator, and solar PV.
With true sinewave output (<5% THD) and fast transfer time (<30ms), it’s ideal for sensitive electronics, off-grid systems, and backup power applications. Certified to UL and CSA standards, the PPS1230200 is ready for Canadian installations.
Key Features
-
All-in-One System: 3000W inverter + 200A charger (100A AC + 2×50A DC inputs).
-
Dual Charging Options: Supports alternator and solar PV inputs with independent configuration.
-
Smart Multi-Stage Charging: Bulk, Absorption, Float, and Recharge stages for Gel, AGM, Flooded, Lithium, and programmable chemistries.
-
Bi-Directional Operation: Inverter + charger with integrated 30A AC transfer switch.
-
True Sinewave Output: Safe for sensitive electronics, appliances, and tools.
-
Advanced Controls: CAN bus communication, optional Bluetooth, and external remote panel support.
-
Fast Switching: <30ms transfer time ensures uninterrupted operation.
-
Regulatory Compliant: TUV-marked, UL & CSA standards, FCC Part 15 Class B.
Specifications
-
Inverter Output Power: 3000W continuous / 6000W peak
-
AC Output Voltage/Frequency: 120V AC, 60Hz
-
Output Current: 25A (continuous), 50A (peak)
-
Efficiency: 90%
-
AC Input Voltage Range: 104–132V AC (60Hz)
-
Transfer Relay Rating: 30A
-
DC Input Range (Battery/Alternator): 10.5–32V DC
-
DC Input Range (PV): 15–100V DC, MPPT efficiency >98%
-
Charging Current: 100A AC + 2×50A DC (200A total)
-
Battery Voltage Range: 13.8–14.8V (charging), 13.0–14.0V (float), programmable recharge 12.8–14.0V
-
Protection: Overload, under/overvoltage, short circuit, over-temperature
-

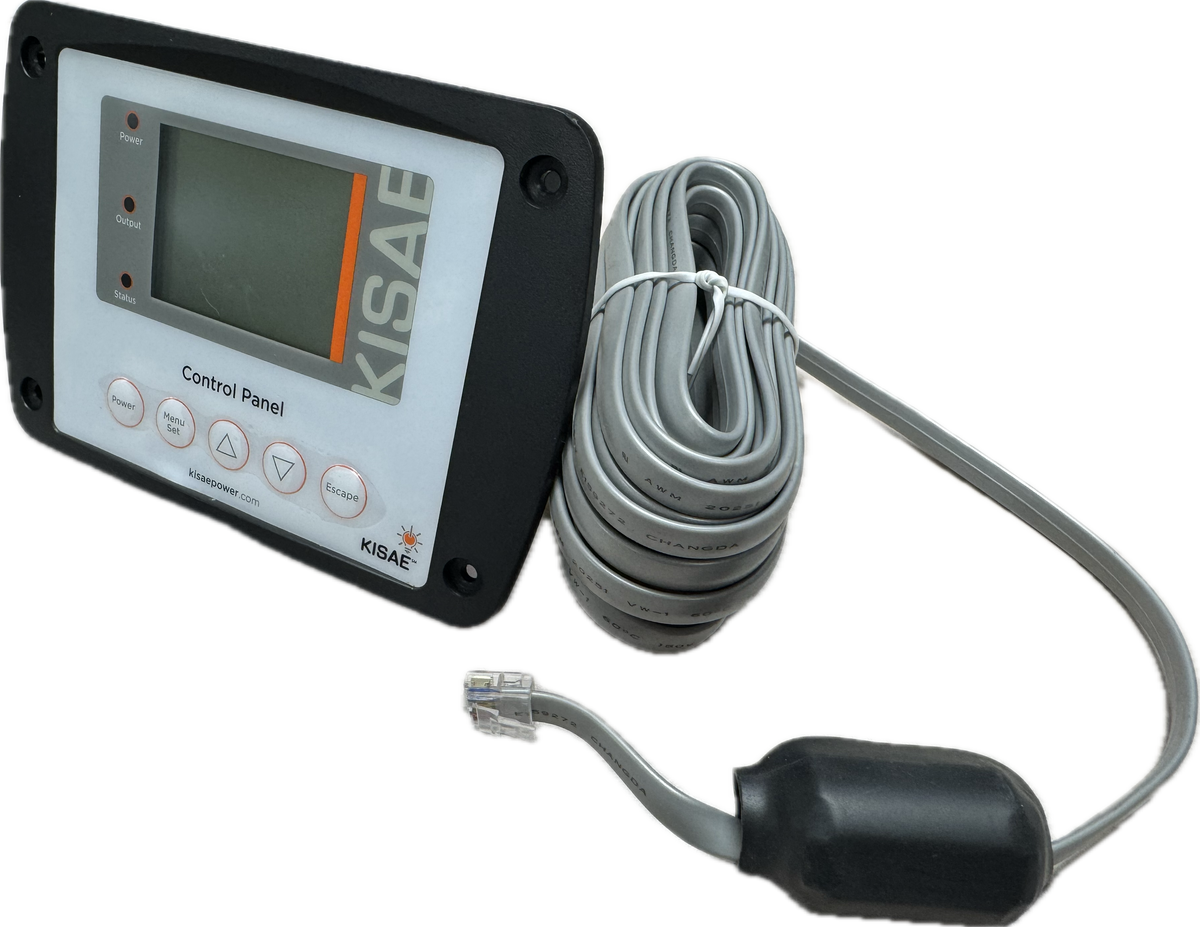

Display: LCD with backlight and 25' cable, numerical and graphical indicators, fault codes
-
Size: 19.7” × 12.2” × 6.2” (500 × 307 × 157 mm)
-
Weight: 32.5 lbs (14.7 kg)
-
Certifications: TUV, UL, CSA
