Lumera 220W Flex solar with Grommet
Lumera 220W Flex solar with Grommet

Lumera 220W Flex solar with Grommet

$285.00
$285.00
Quantity must be 1 or more

SKU: LUM-220WM10FLEX-G

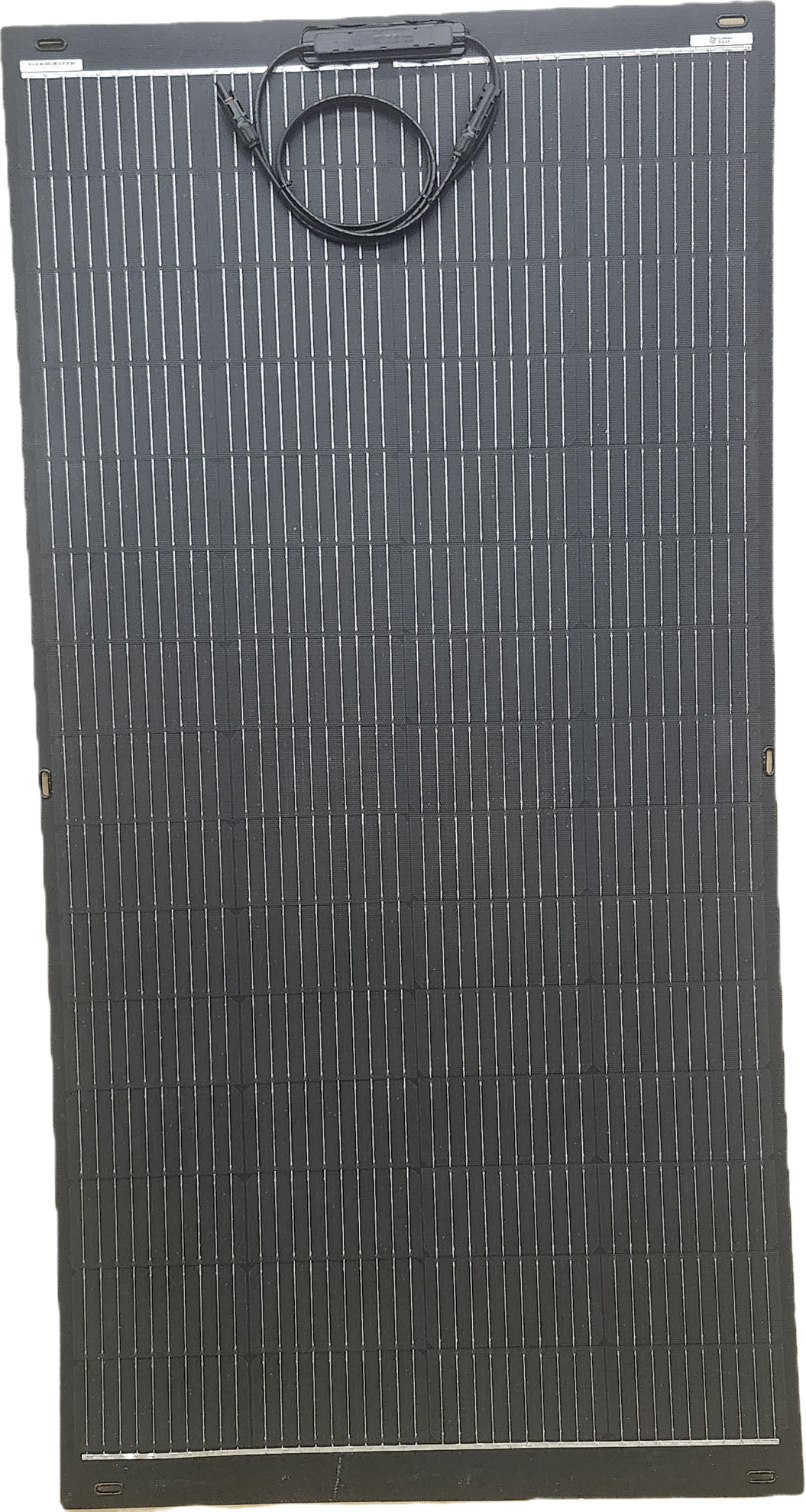

Lumera 220W Flex Solar Module with Mounting Grommets (eyelets)

This configuration features the premium Lumera 220W lightweight, flexible solar module, equipped with reinforced perimeter mounting grommets (eyelets) for easy mechanical fastening and an integrated IP68-rated, low-profile junction box on the panel face.

✅ Key Specs (STC)


Feature Value
Rated Power (Pmax) 220W
Open Circuit Voltage (Voc) 21.6V
Max Power Voltage (Vmp) 18.78V
Short Circuit Current (Isc) 13.41A
Max Overcurrent Proection Rating 15A
Power Tolerance (Pmax) 0 ~ 3W
Power Tolerance (Voc Isc) +_ 3%
Max System Voltage 1000V DC
Dimensions (mm) 1500 × 765 × 5


Weight Approx. 14.5 lbs (6.5 kg)

💰 Volume Pricing

Tier pricing on bulk quantities! (calculated at check out)

Quantity
  $ / Module
<3 $285
>2 $275
>10
 $250
Full pallet (30 pcs)
 $230



Back to All Solar PV Modules
