SKU: SD-GM-A-FRAME-KIT-1xLEG
Adjustable Ground Mount A-Frame
Overview
SunDale Canada brings to you a quick and easily ground Mount Solution that makes going Solar a No-Brainer!
Sturdy A-frame racking system designed for ground-mounted solar panels
Easily adjustable tilt from 45° to 90° to capture peak sunlight throughout the year
Quick, tool-minimal installation saves time and labour costs
Key Features & Benefits
Wide Angle Range: Adjust panels between 45°–90° in seconds to match seasonal sun paths and maximise energy harvest
Robust Construction: Anodized aluminium rails with galvanized-steel brackets deliver corrosion resistance in Canada’s coastal, prairie and northern climates
Bolt-Together Assembly: Pre-cut rails and hardware allow one- or two-person setup using basic tools
Universal Compatibility: Fits most 60-cell and 72-cell modules (250 Wp–400 Wp) with standard clamp systems
Snow-Shedding Clearance: 12″–18″ ground clearance prevents snow buildup and improves airflow under panels
Specifications
Material: Anodized aluminium rails; galvanized-steel brackets
Angle Adjustment: 45°–90° in simple bolt-release steps
Supports: One panel per 2 x A-frame (expandable series configuration)
Wind & Snow Load: Engineered for up to 150 km/h wind and 22 psf snow loads

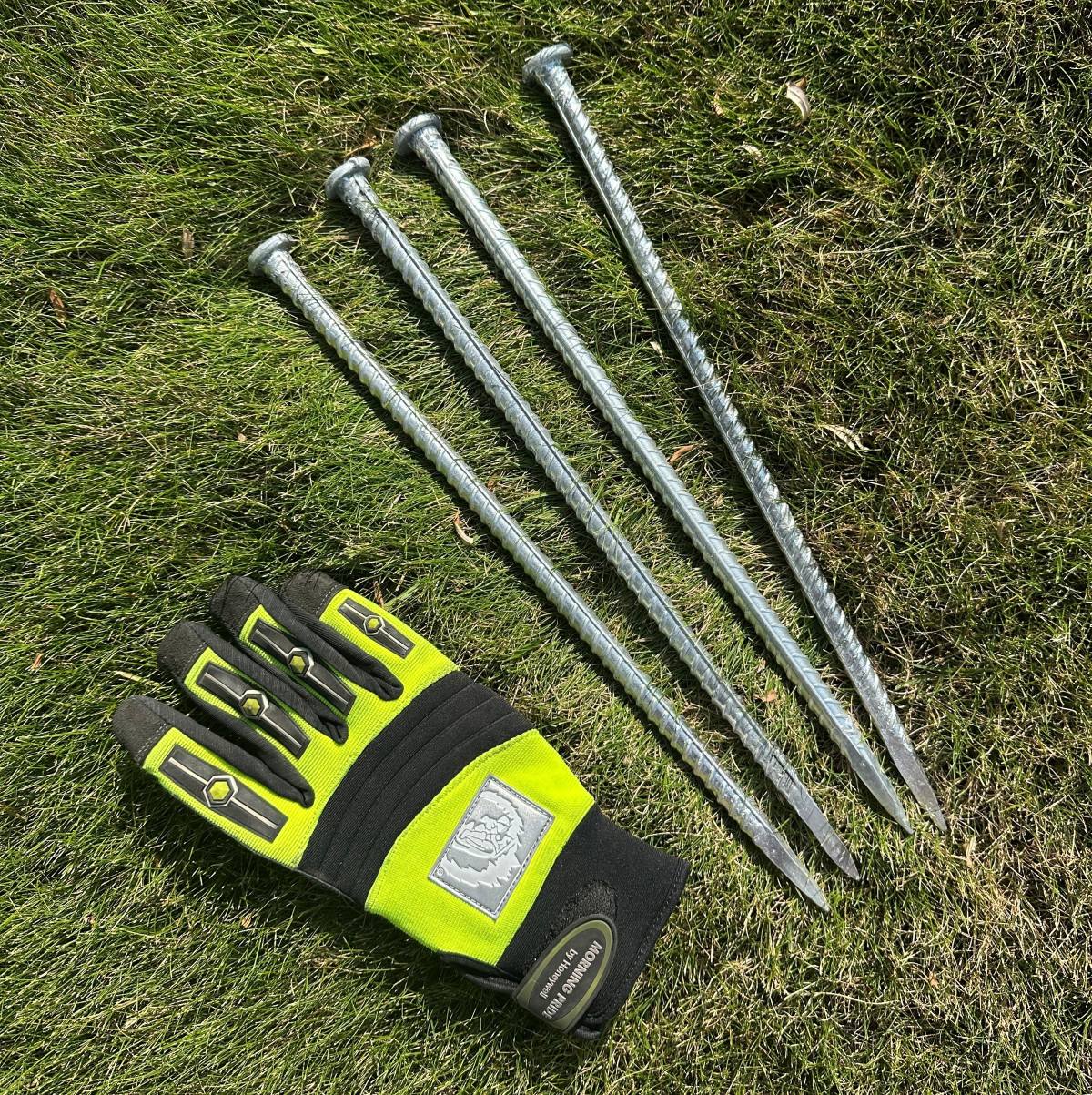

Ground Mount Options: Direct-bury posts or concrete-pier footings (all hardware included)
Installation
Slide-On Rails: Pre-assembled rails let you mount panels then lock with included clamps
Quick Tilt Setup: Loosen two adjustment bolts, pivot to desired angle, then retighten—no full disassembly required
Video
Why It’s Ideal for Canadian Solar
Year-Round Optimisation: Seasonal tilt adjustments help you squeeze every watt out of your array
Built for Extremes: Materials and design withstand Alberta sun, B.C. rain, Québec snow and Ontario freeze-thaw cycles
Low-Maintenance: Elevated frame and passive design reduce cleaning and service calls in remote sites
Package Details
Dimensions: 53″ × 5″ × 6″
Weight: 15 lb
Optimize your ground-mounted solar installation with this Adjustable Ground Mount A-Frame—engineered for flexibility, durability and effortless angle tuning in any Canadian climate.
