Sol-Ark 18K Hybrid Inverter Charger

SKU: SA-18K-2P

Mfg. SKU: SA-18K-2P

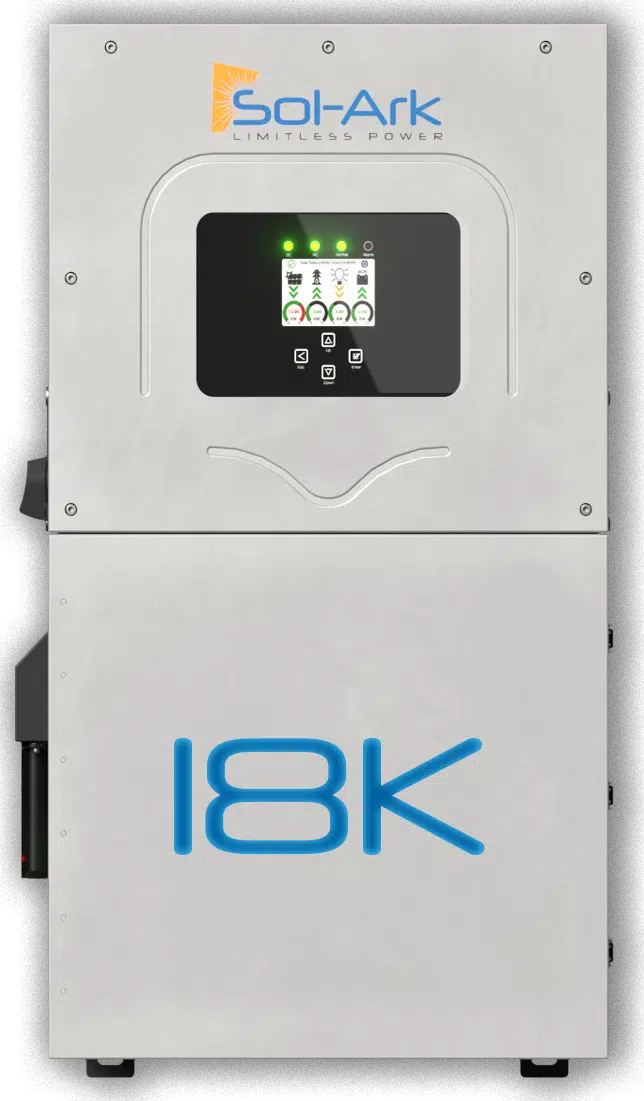

Sol-Ark 18K-2P-N All-In-One Hybrid Solar Inverter

Engineered Performance Overview (Rewritten)

Engineered for demanding off-grid, grid-interactive, and backup power applications, the Limitless 18K-2P-LV delivers industry-leading 18 kW continuous power from batteries to support large residential loads with confidence. With a 36 kW surge rating for 10 seconds, the system easily starts HVAC systems, pumps, compressors, and other high-inrush equipment during grid outages.

Designed for maximum solar utilization, the 18K-2P-LV supports up to 32.4 kW of PV input and 28.8 kW usable solar, with the ability to accept 28.8 kW of AC-coupled input—making it one of the highest-capacity residential hybrid inverters in its class. Three MPPT channels with high current handling enable flexible string design and optimal harvest across complex roof layouts.

Running North-American engineered firmware with data residency maintained within the U.S., the Limitless 18K-2P-LV is built for reliability, compliance, and long-term ownership, backed by a standard 10-year warranty.

Key Features & Benefits (Corrected)

• 18 000 W Continuous Output at 120/240 V split-phase
  Designed for whole-home backup, large residences, and light commercial applications.

• 36 000 W Surge Power (10 seconds)
  Confidently starts motors, HVAC units, and inductive loads during grid outages.

• High-Capacity Solar Input
  Supports up to 32.4 kW PV, 28.8 kW usable DC, and 28.8 kW AC-coupled solar for maximum production flexibility.

• Three MPPT Channels (36 A per MPPT)
  Wide 150–425 V MPPT operating range with high current handling for advanced string configurations.

• Ultra-High Grid Passthrough Capability
  200 A integrated AC output breaker allows full service-entrance backup without external gear.

• 48 V Battery Integration (High-Current)
  Supports 350 A continuous charge/discharge, compatible with lithium or lead-acid banks from 50–9,900 Ah.

• Scalable Architecture
  Parallel up to 12 units for large residential or multi-building systems.

• Outdoor-Rated, Canadian-Ready Design
  IP65 / NEMA 3R enclosure, operating from –40 °C to +60 °C (derates above 45 °C).

• Advanced Integrated Protections
  DC disconnect, PV AFCI (UL1699B), ground-fault detection (NEC 690.5), surge protection (DC Type II / AC Type I), and rapid shutdown compliance.

• Intuitive Monitoring & Communications
  CANBus & RS485 (Modbus) battery communications with advanced system monitoring support.

• High Efficiency, Quiet Operation
  Up to 97.6% peak efficiency, < 50 dB noise for residential-friendly installs.

• 10-Year Standard Warranty
  Long-term protection and peace of mind.

Why Choose the Limitless 18K-2P-LV?

The Limitless 18K-2P-LV is a true high-power residential hybrid inverter built for homeowners and system designers who refuse to compromise. With exceptional surge capability, massive solar input support, high-current battery performance, and full service-entrance passthrough, it excels in backup-critical homes, rural properties, farms, and grid-constrained installations.

Its stackable design, comprehensive certifications, and extreme-climate readiness make it a top-tier choice for Canadian solar + storage systems, whether your goal is energy independence, outage resilience, or future-proof expansion.

Technical Specifications (Corrected)
