Description
SKU: LXP-SNA-US-12kW-VOL
Mfg. SKU: SNA-US-12000
LuxPower SNA-US-12K (12000XP) Off-Grid Split-Phase Solar Inverter – 12 kW of Reliable Power for Homes, Cabins & Businesses in Canada

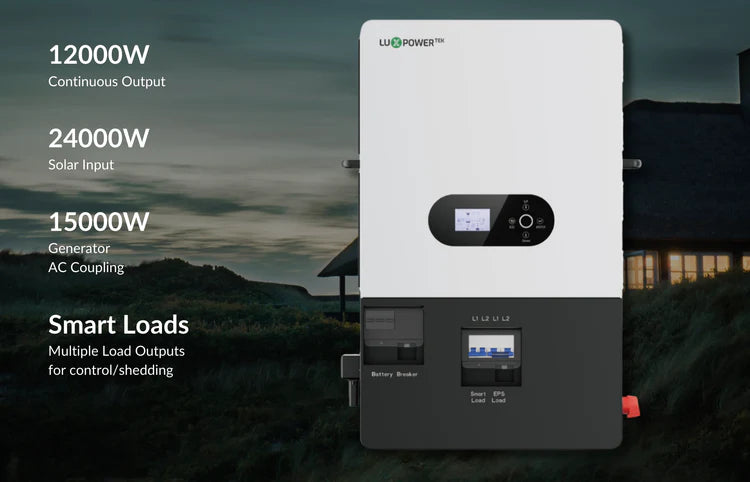

The LuxPower SNA-US-12K Off-Grid Split-Phase Solar Inverter (12000XP) is a high-output energy solution built for full independence from the grid. Delivering 12 kW of continuous split-phase power (240 V / 120 V), it efficiently manages solar, battery, and generator inputs to keep your property powered under any condition.
With dual MPPTs supporting up to 24 kW of PV input, a 250 A charge / discharge capacity, and integrated AFCI protection, it’s designed for durability, safety, and high-efficiency performance in Canadian environments.
Ideal for off-grid homes, farms, commercial systems, and remote sites, this inverter ensures uninterrupted power with smart cooling, intelligent monitoring, and the flexibility to integrate multiple energy sources.
⚡ Key Features
240 V / 120 V Split-Phase Off-Grid Output
-
Runs both standard household circuits and heavy-duty appliances.
-
Dual-voltage compatibility makes it suitable for residential, commercial, and rural applications.
Dual MPPTs with 24 kW PV Input
-
Two independent Maximum Power Point Trackers (MPPTs) for multi-array optimization.
-
Input Voltage Range: 100 – 480 V DC
-
MPPT Operating Range: 120 – 385 V DC
-
Max PV Input Current: 35 A × 2 (44 A short-circuit per MPPT)
-
High MPPT efficiency of 99 % ensures maximum solar harvest even under shading or varied conditions.
250 A High-Capacity Charge / Discharge
-
Rapid charging for large battery banks with fast response under peak load.
-
Maintains system stability and extends battery life through intelligent current control.
Built-in AFCI Protection
-
Detects and isolates arc faults to prevent electrical fires.
-
Ensures secure, continuous operation in residential or remote systems.

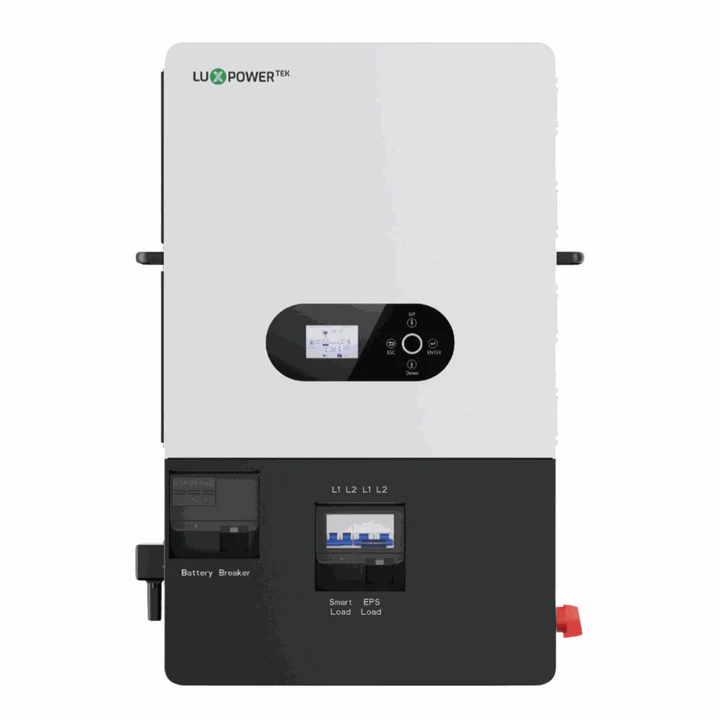

Dual AC Outputs + Generator Support
-
Power multiple load groups at once via dual AC output ports.
-
Dedicated generator port with auto-start/stop and support for up to 19.2 kW of generator or AC-coupled input.
-
Seamless transition between power sources for true off-grid autonomy.
Smart Cooling & Quiet Operation
-
Adaptive fan control maintains temperature efficiency.
-
Operates at < 50 dB for quiet performance and extended component life.
Comprehensive Monitoring & Connectivity
-
LCD + RGB display provides real-time operating data.
-
Remote control and monitoring via RS-485, Wi-Fi, and CAN interfaces.
-
Enables energy tracking and configuration from anywhere.
Certified for Canadian Standards
-
Fully CSA and UL certified for safe, compliant operation across all provinces.

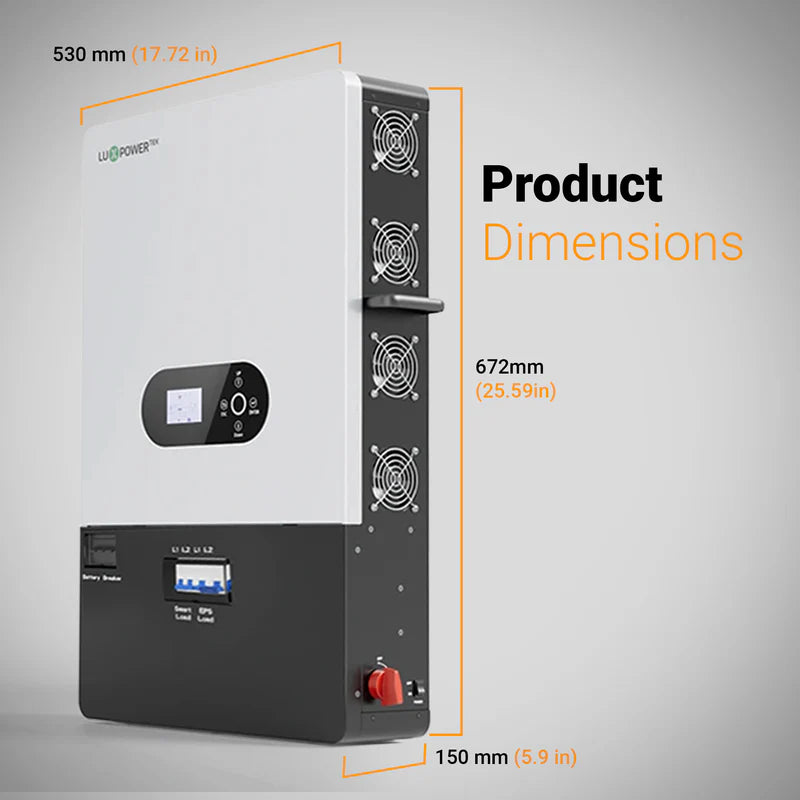

Parameter Details Model LuxPower SNA-US-12K (12000XP) Rated Power 12 kW Output Voltage 240 V / 120 V split phase PV Input (2 × MPPT) Up to 24 kW (12 kW + 12 kW) Input Voltage Range 100 – 480 V DC MPPT Operating Range 120 – 385 V DC Max PV Input Current 35 A × 2 (44 A short-circuit) Charge / Discharge Capacity 250 A max Efficiency MPPT 99 % / Overall 93.5 % Dimensions (W×H×D) 530 × 830 × 150 mm (20.87 × 32.68 × 5.9 in) Weight 47.5 kg (104.72 lb) Ingress Protection IP20 Operating Temp 0 °C – 45 °C Storage Temp –15 °C – 60 °C Humidity 5 % – 95 % (non-condensing) Cooling Method Smart adaptive fan Topology (AC / Battery) Transformer-less / Transformer Altitude Limit < 2000 m Noise Emission < 50 dB Interfaces LCD + RGB, RS-485 / Wi-Fi / CAN Certifications CSA, UL Warranty 2 Years Manufacturer Warranty
