S-5! VersaBracket-47 Kit of 4 with Panel Screws
S-5! VersaBracket-47 Kit of 4 with Panel Screws

S-5! VersaBracket-47 Kit of 4 with Panel Screws

$49.00
$24.80
Quantity must be 1 or more



SKU: SSK-S5-ZB

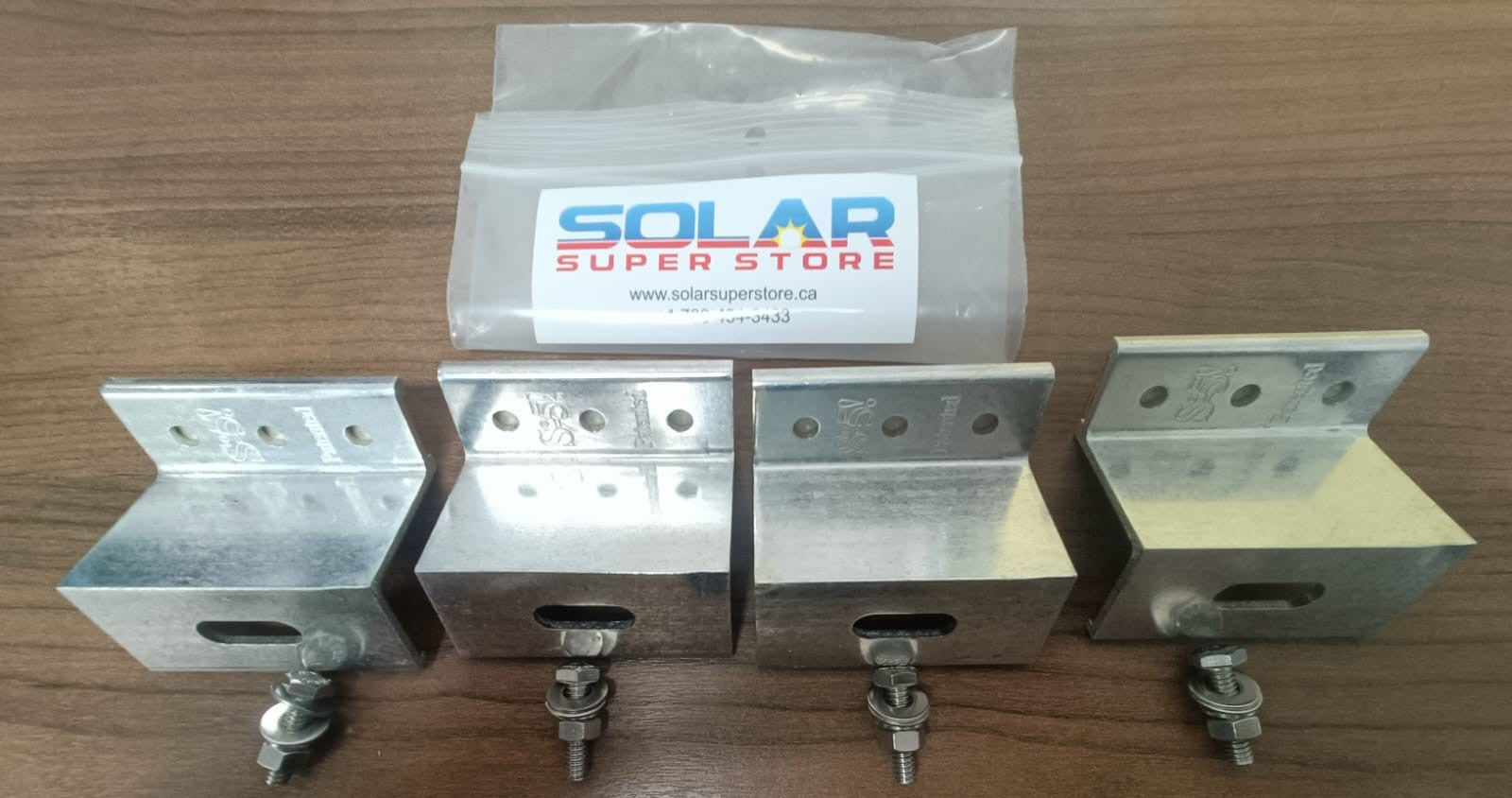

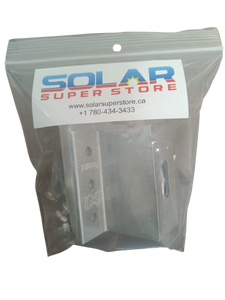

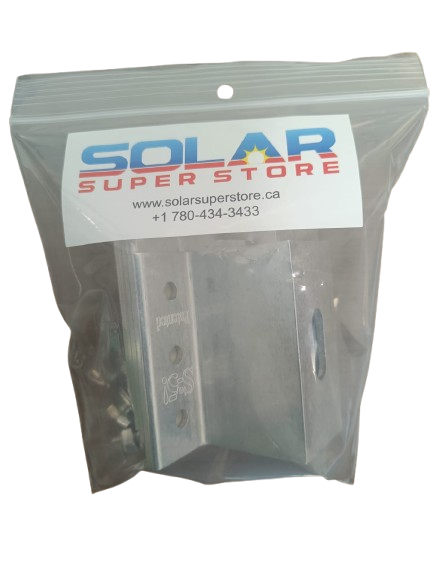

Kit of 4 Units with Screws to Mount Solar Panel

S-5! VersaBracket-47 (1.86 in / 47 mm)
Bottom-Fixed | Factory-Butyl Sealant | Adjustable Slot

Mount almost anything to exposed-fastened metal roof profiles with the S-5! VersaBracket-47. This bottom-fixed structural aluminum bracket features factory-applied butyl sealant in a patented UV-protected reservoir, providing a leak-free attachment point for ColorGard® snow guards, VersaClip, cable trays, walkway systems, or direct-attach™ solar PV with the PVKIT®—no messy caulking required.

Key Features & Benefits

  • Bottom-Fixed Design
    Secures under the metal panel rib and fastens through to the roof structure for a robust, non-penetrating clamp.

  • Factory-Applied Butyl Sealant
    Pre-applied sealant in a patented reservoir ensures long-lasting waterproofing without additional sealants.

  • Adjustable 1″ (25 mm) Slot
    Top-flange slot allows fine alignment and tilt adjustments to match varied panel profiles.

  • Low-Profile 47 mm Height
    Provides clearance for wiring, conduits, and ancillaries while maintaining a sleek installation.

  • Versatile Mounting Compatibility
    Ideal for ColorGard®, VersaClip, PVKIT® direct-attach solar PV, snow retention, cable trays, and more.

  • Durable Aluminum Construction
    Structural aluminum resists corrosion and UV, built to withstand Canada’s coastal, industrial, and cold-climate conditions.

  • Multiple Fastening Options
    Three mounting holes accommodate 2–3 fasteners per installation for flexibility (fasteners sold separately).

Technical Specifications

Specification Details
Material Structural aluminum with factory-applied butyl sealant
Height 47 mm (1.86 in)
Top Slot Length 25 mm (1 in)
Mounting Holes Three holes; use 2–3 fasteners as required (fasteners not included)
Compatible Roof Profiles Exposed-fastened screw-down metal panels (corrugated, trapezoidal)
Sealant Butyl, factory-applied in UV-protected reservoir
Temperature Range –40 °C to +90 °C
Fasteners Not included; choose per substrate
Certifications & Testing Patent protected; tested for load-to-failure (see S-5! website)
Finish Raw aluminum (optional powder coat available)
