SKU: HYX-M1000-S-NA
Mfg. SKU: HYX-M1000-S-NA

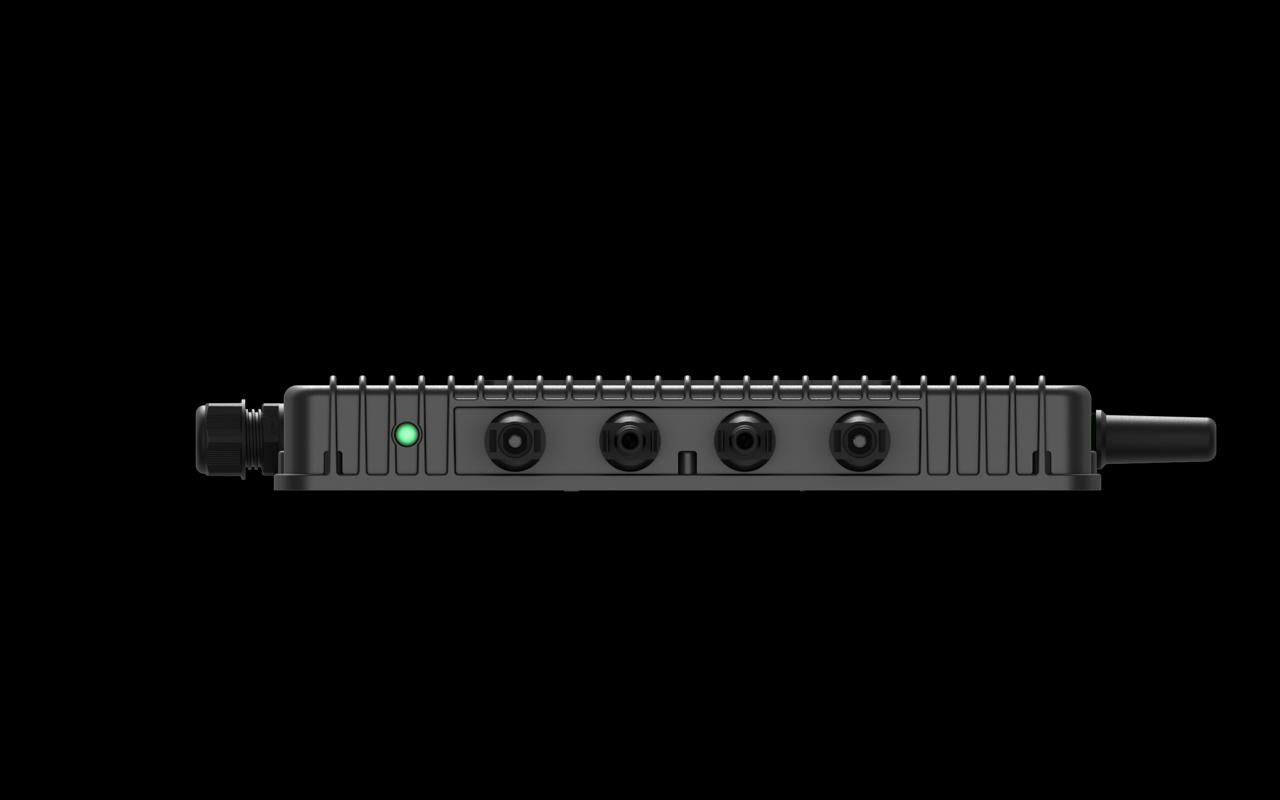

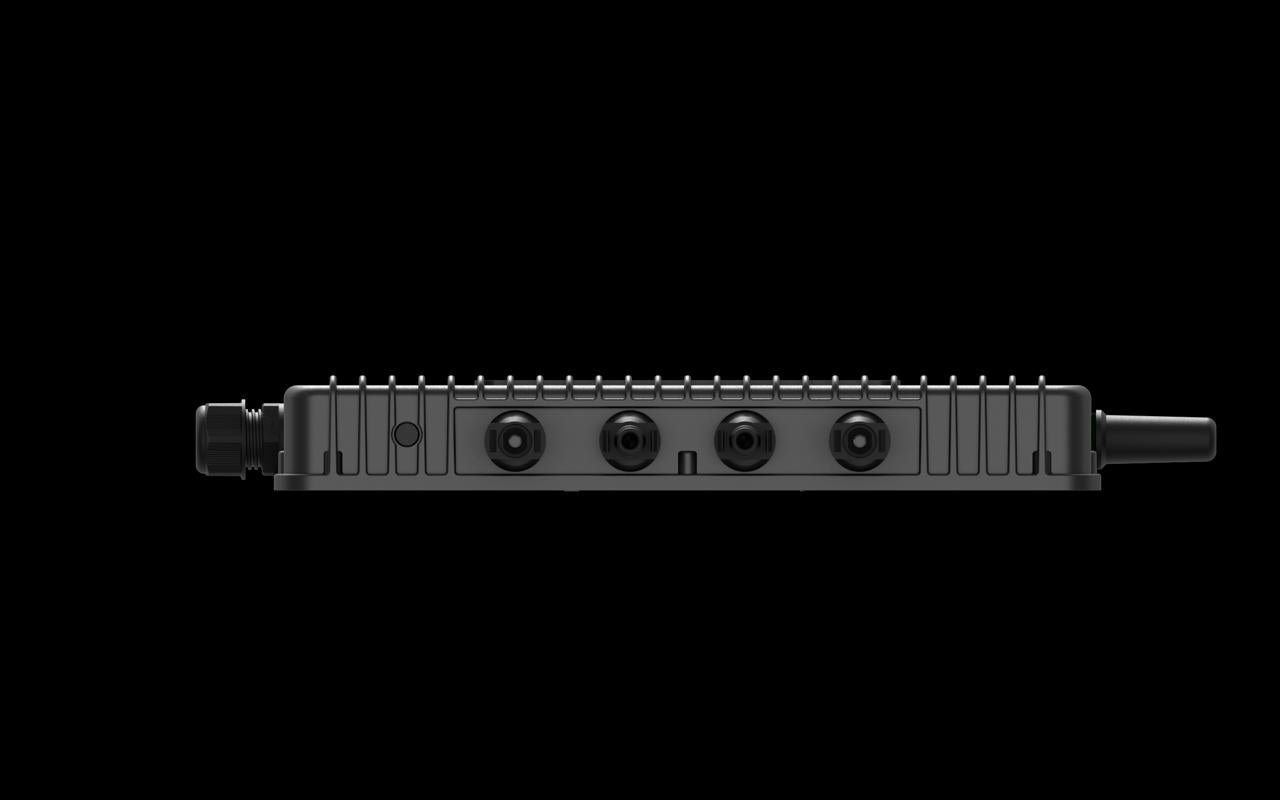

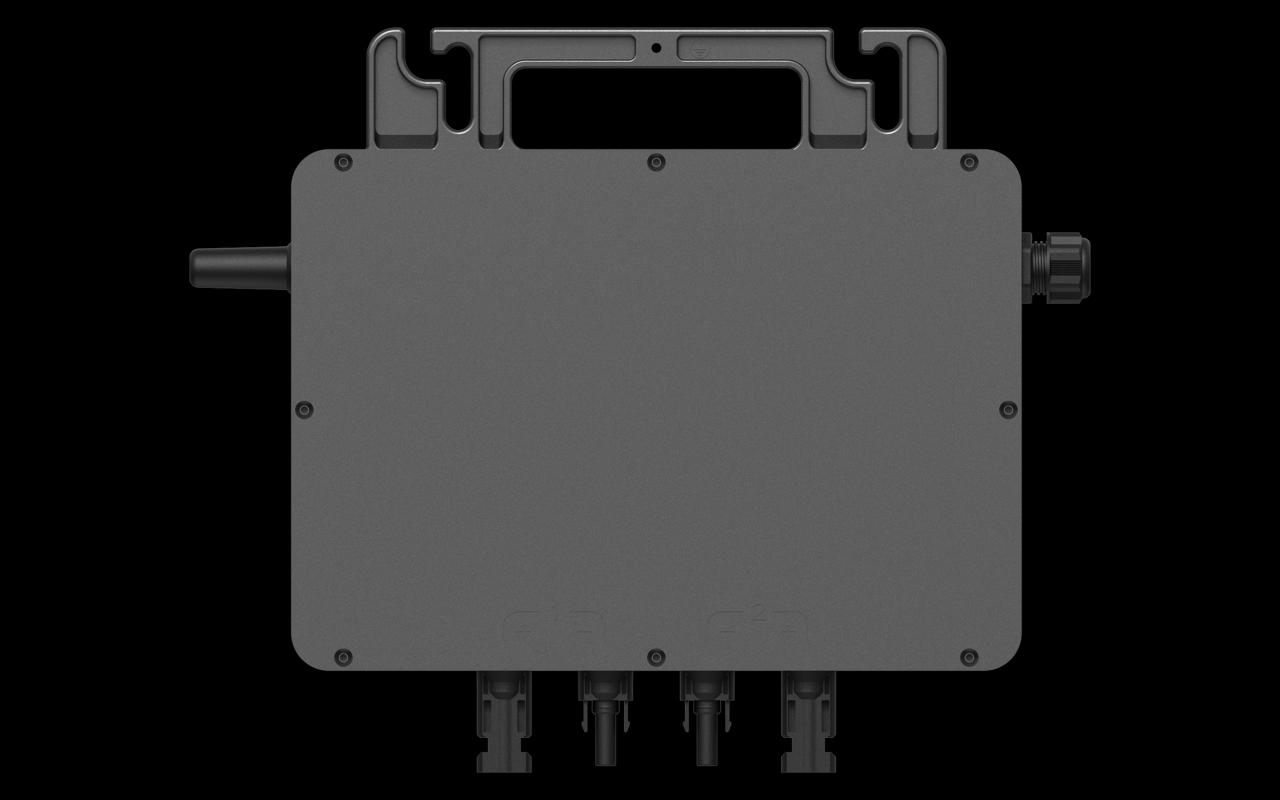

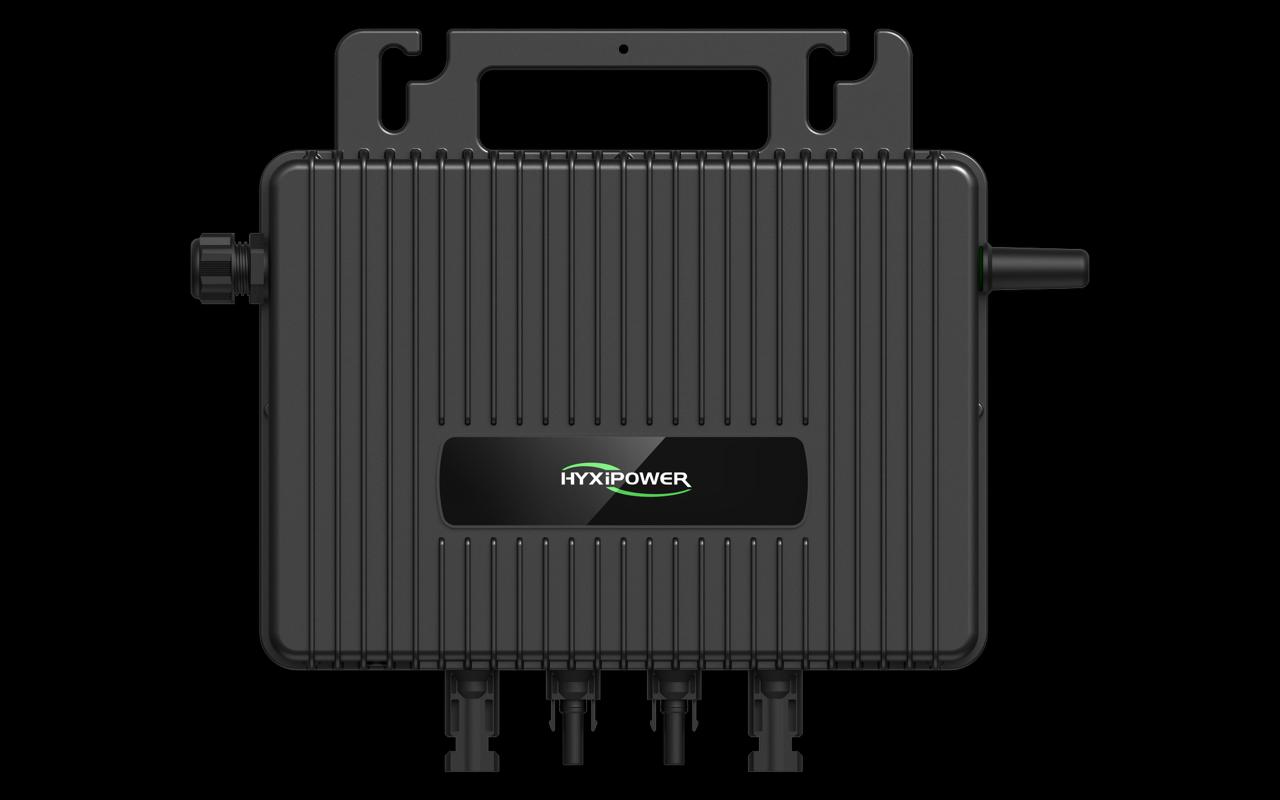

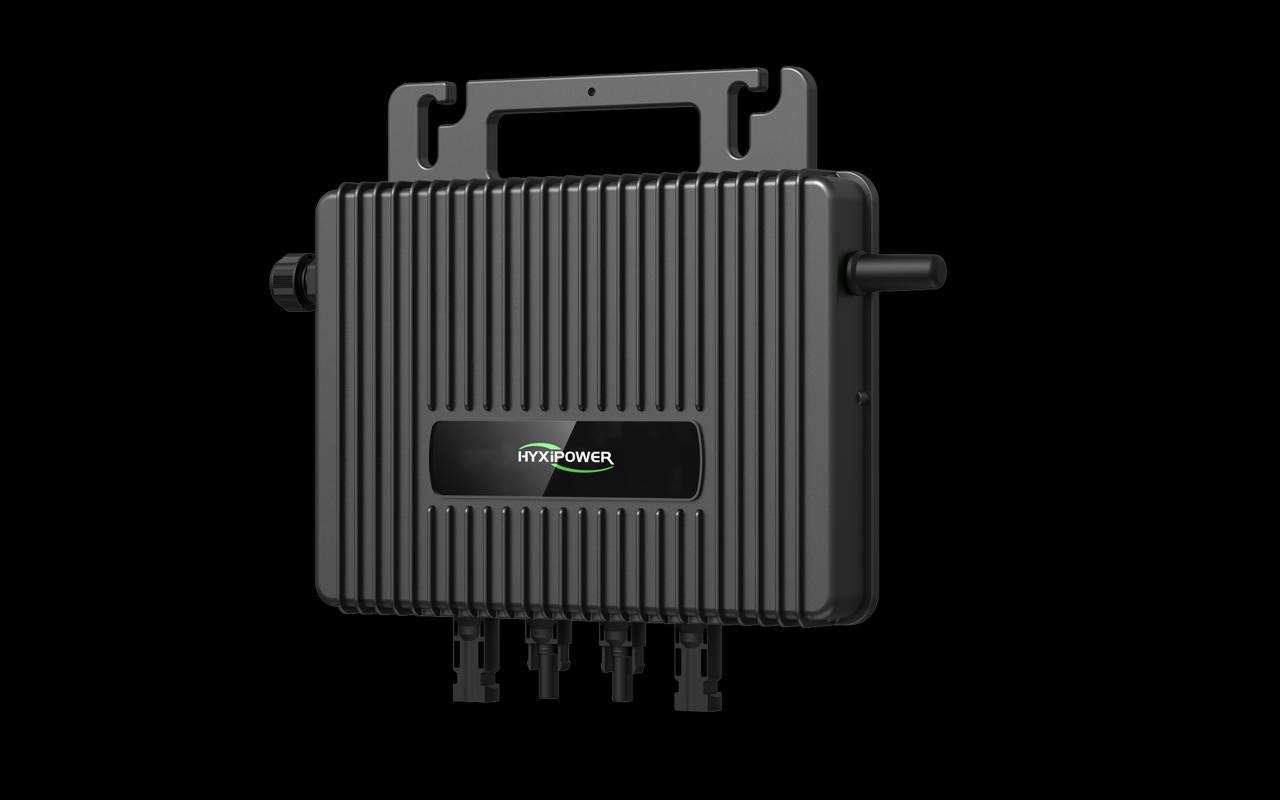

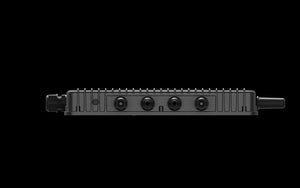

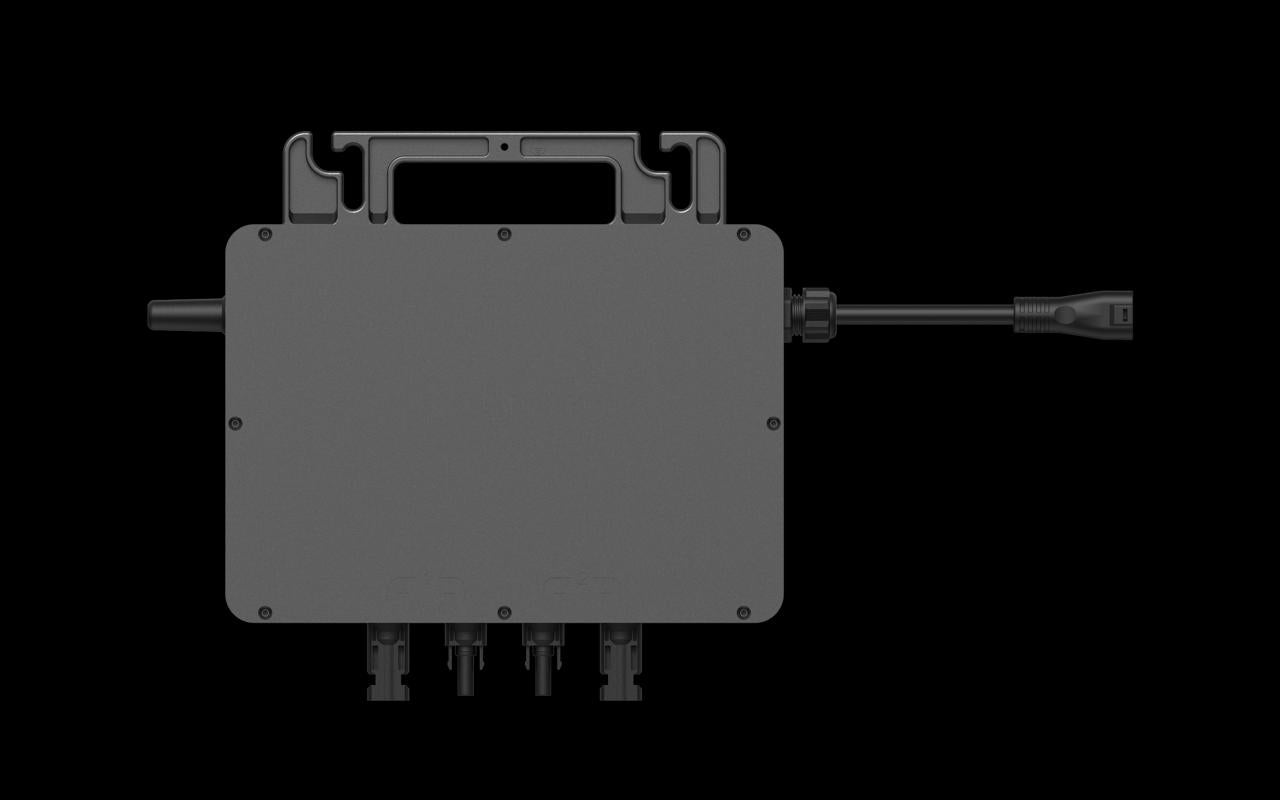

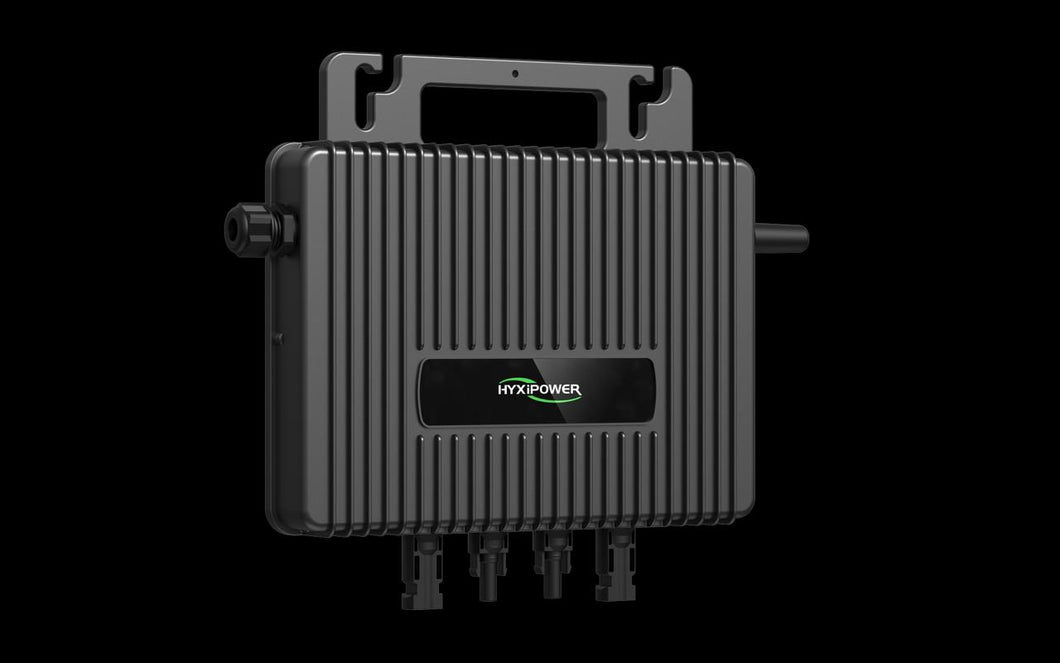

HYX-M1000-S 1000 W Solar MicroinverterOverview

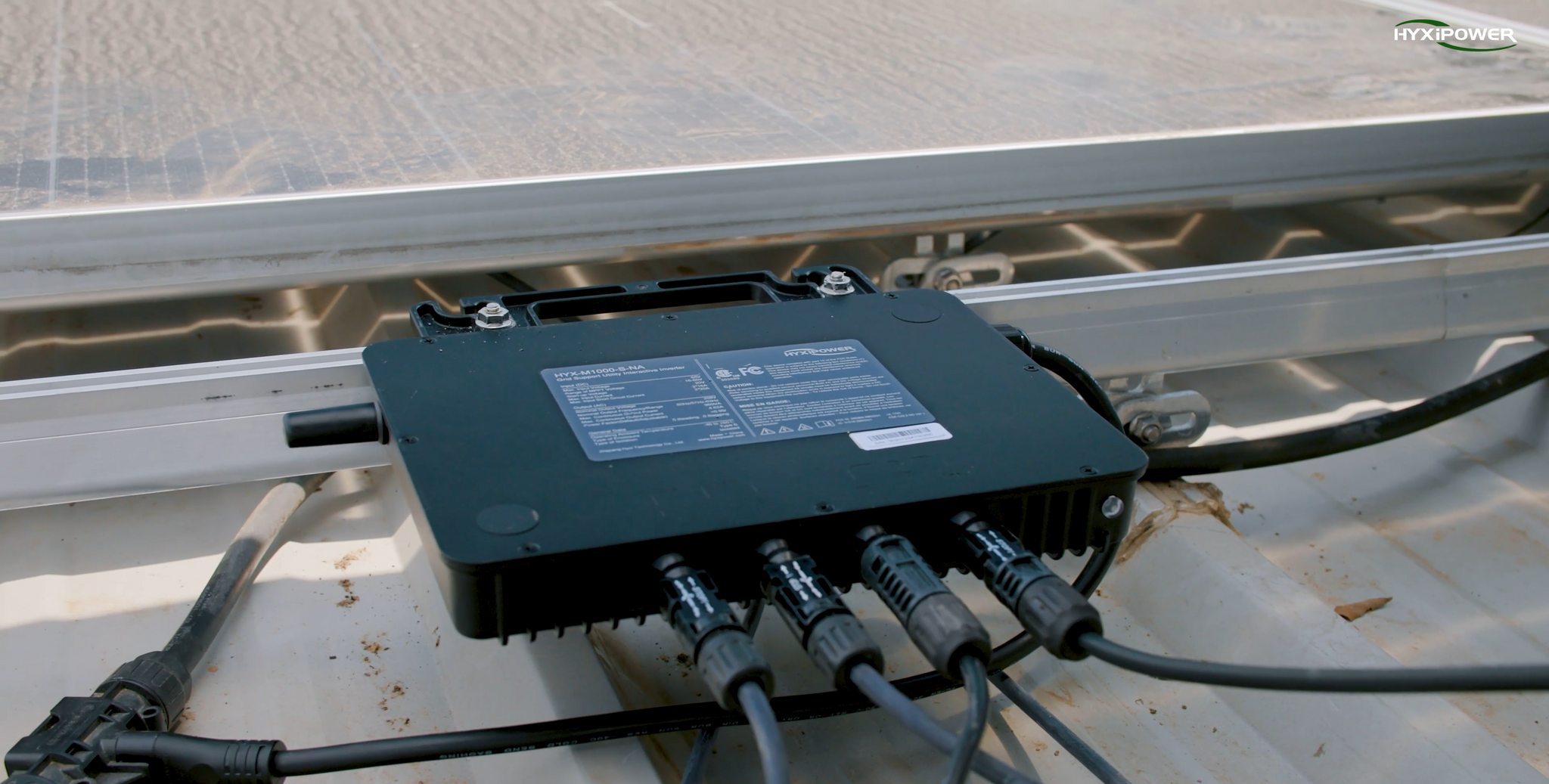

Rail-mounted behind each solar panel, converting DC into 240 V AC for seamless Canadian grid-tie integration
Module-level conversion ensures shaded or mismatched panels don’t drag down total system output
Key Specifications
Continuous Power: 960 W @ 240 V AC (4 A nominal)
PV Inputs & MPPT: Two independent inputs; MPPT range 16 V–60 V (start-up 20 V); 99.8 % tracking efficiency
Maximum Panel Voc: 60 V max (ensure panel Voc never exceeds this)
Module Compatibility: Optimized for 400 Wp–670 Wp panels
Power Factor: > 0.99 default; adjustable 0.8 lead → 0.8 lag
Efficiency: CEC-weighted 96.7 %; night-time loss < 30 mW
Max Units per 10 AWG Branch: Up to 10 inverters per branch—cutting conduit & BOS costs
Durability & Safety
IP67 (NEMA 6) weatherproof housing with passive (fan-free) cooling
Operating temp –40 °F → +149 °F (–40 °C → +65 °C)
Protections: over/under-voltage & frequency; anti-islanding; reverse-connection; over-current; short-circuit; 6000 V surge protection; built-in emergency relay
Certifications: UL 1741; CSA C22.2
Installation & Monitoring
MC4 plug-and-play connectors for fast, tool-free wiring
Sub-1 GHz iMesh (or built-in Wi-Fi) network for long-range, interference-free communication
One-click OTA firmware updates & module-level monitoring via the Hyxi portal/app
Mechanical Details
Dimensions: 9.9″ × 7.1″ × 1.4″ (252 × 180 × 35 mm)
Weight: 6.6 lb (3.0 kg)
Fun Fact & Sizing Tip
Solar panel voltage drops on hot summer days and spikes on cold winter mornings
Keep panel Voc ≥ 25 % below 60 V max (aim ~45 V) to avoid over-voltage trips in winter
Why It’s Ideal for Canadian Solar
Maximizes net-metering & rebates: Ontario Net Metering; Alberta Solar Rebate; B.C. Clean Energy; Québec Novoclimat; Canada Greener Homes Grant
Reduces electricity bills by squeezing extra kWh from every panel
Built for extremes: IP67 housing & passive cooling ensure reliability across Canada’s climates
Warranty & Support
25-year limited warranty backed by Hyxi North American technical support (phone, email, online)
