KIS: KIS-SW2420
Mfg. SKU: SW2420

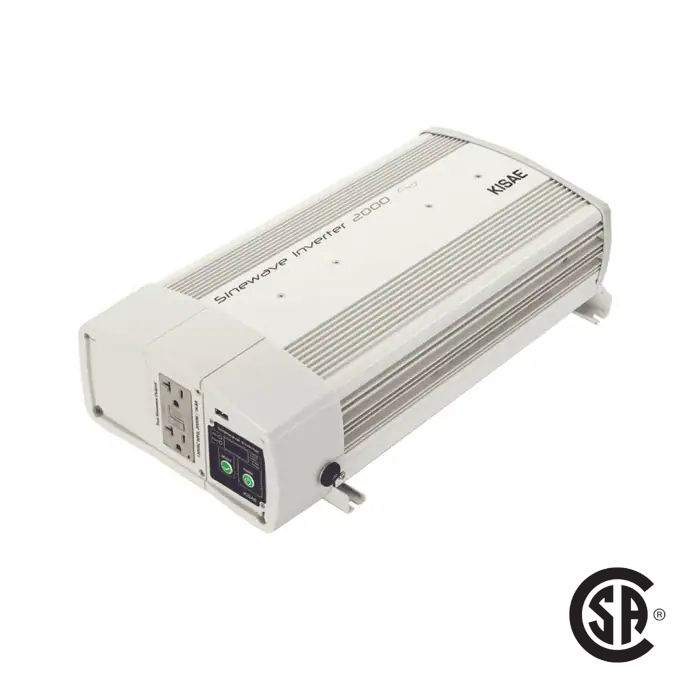

Kisae SW2420 Pure Sine Wave Inverter – 2000W, 24V DC to 120V AC (CSA Approved)
The Kisae SW2420 Pure Sine Wave Inverter provides 2000W of continuous AC power with a 4000W surge capacity, making it ideal for off-grid solar systems, RVs, trailers, cabins, and mobile power applications. With cETLus certification conforming to UL & CSA standards, the SW2420 is built for safe and reliable use across Canada.
✅ True Sine Wave Output – Delivers clean 120V AC power (<3% THD) for sensitive electronics, appliances, and tools.✅ CSA/UL Certified – Fully compliant with Canadian and U.S. safety standards.✅ High Surge Capability – 4000W peak surge supports motors and appliances with startup loads.✅ 24V System Ready – Optimized for 24V solar battery banks and energy storage systems.✅ LED Digital Display – Shows input voltage, output power, and warning/error codes.✅ Comprehensive Protection – Includes undervoltage shutdown (21.0V), recovery (23.6V), overload, short-circuit, and thermal protection.
Continuous Power: 2000W
Surge Power: 4000W
Input Voltage (Nominal): 25V DC
Operating Range: 21 – 31V DC
No-Load Current Draw (Power Save OFF): 0.8A
No-Load Current Draw (Power Save ON): 0.3A
AC Output Voltage/Frequency: 120V AC / 60Hz
Output Current: 16.6A
Output Waveform: True Sine Wave (<3% THD)
Peak Efficiency: 90%
AC Receptacle: NEMA 5-20 GFCI
USB Output: 5V DC (0.75A + 2.1A + 2.1A)
Indicators: Status + Warning/Error codes
Display: LED – Input voltage, output power, warning/error code
Protections: Input undervoltage shutdown (21.0V), recovery (23.6V), overload, short-circuit, over-temperature
Regulatory Compliance: cETLus certified – conforms to UL & CSA standards
⚡ Available now at Solar Super Store Canada, the Kisae SW2420 inverter is a top choice for Canadians seeking a CSA-approved 2000W inverter for solar, mobile, and off-grid power solutions.
Dimensions (L x W x H):
SW2420: 9” x 15” x 4.5” (241 x 419 x 114mm)
Weight:
SW1220: 12 lbs. / 5.4 Kg
