SKU: KIS-BIC1230100
Mfg. SKU: BIC1230100

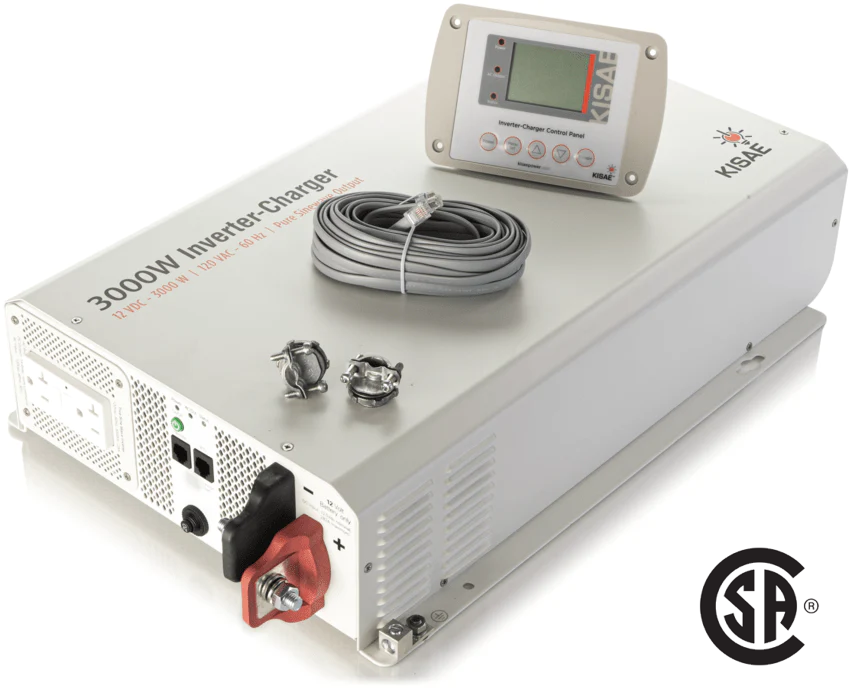

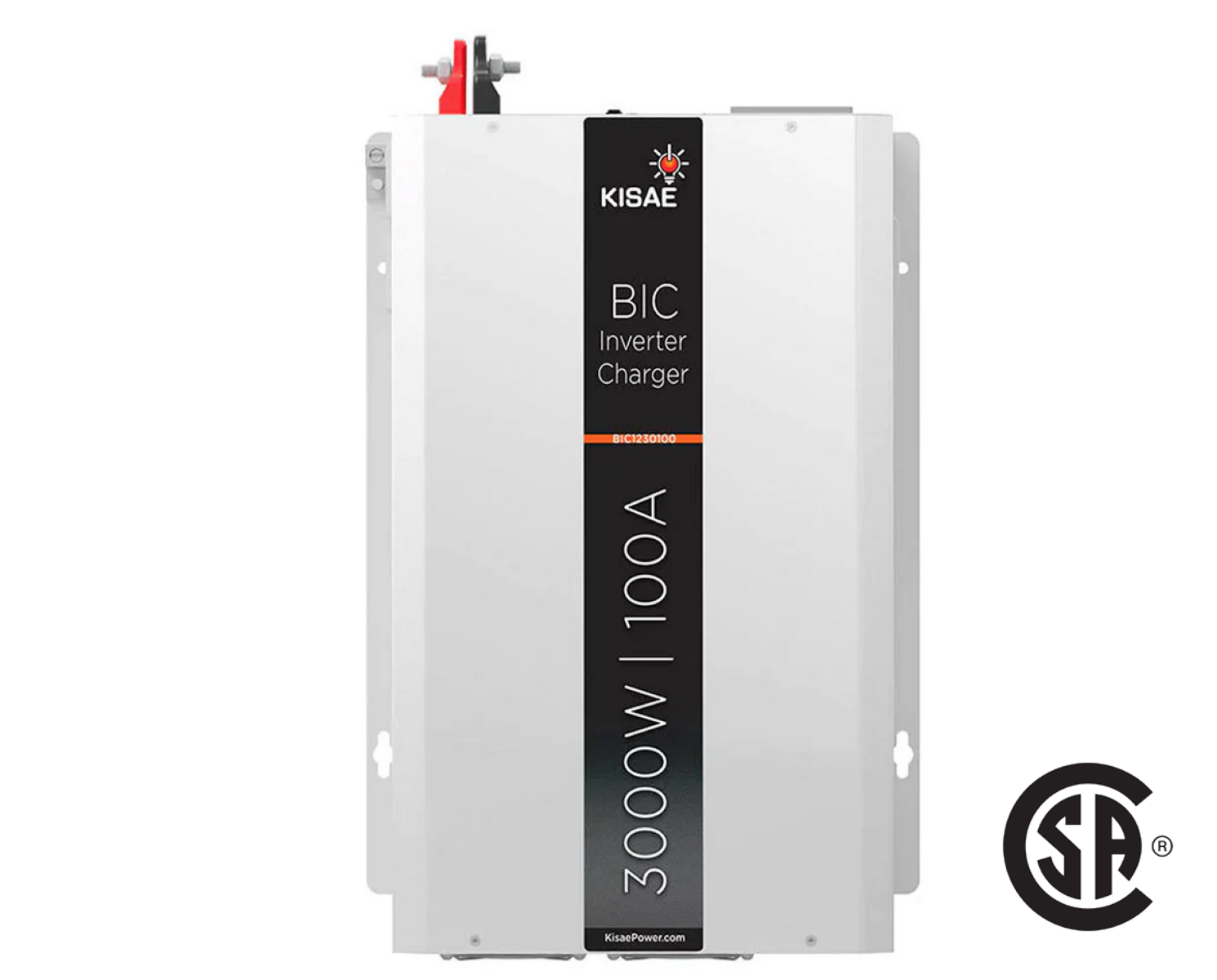

The Kisae BIC1230100 Bi-Directional Inverter-Charger is a high-capacity, all-in-one solution that integrates a 3000W pure sine wave inverter, a 100A multi-stage battery charger, and a 30A automatic transfer switch. Ideal for RVs, off-grid cabins, trailers, marine systems, and residential backup power, this inverter-charger is cETLus listed and conforms to UL & CSA standards, ensuring safe and reliable use across Canada.
✅ True Sine Wave Power – 3000W continuous / 6000W surge with <5% THD, safe for sensitive electronics and appliances.✅ 100A Smart Battery Charger – Programmable multi-stage charging for Flooded, AGM, Gel, and Lithium batteries.✅ Automatic Transfer Switch (30A) – Transfers between shore power and inverter power in under 30ms.✅ Bi-Directional Operation – Supplies AC loads while simultaneously charging your batteries.✅ Advanced Protections – Overload, over-temperature, under/over-voltage, and dynamic undervoltage shutdown.✅ CSA/UL Certified – Built to Canadian safety standards for both residential and mobile installations.
Continuous Inverter Power: 3000W
Surge Power: 6000W (1s)
Input Voltage (Nominal): 12.5V DC
Operating Range: 10.5 – 16.5V DC
Standby Current (Power Save): <0.6A
AC Output Voltage/Frequency: 120V AC ± 5%, 60Hz
Output Current: 25A (50A peak, power-limited)
Waveform: Pure Sine Wave (<5% THD)
Efficiency: 90%
Battery Charger Current: 25–100A (Selectable)
Charger Voltage Range: 13.8 – 14.8V (Selectable)
Float Voltage Range: 13.0 – 14.0V (Selectable)
Recharge Voltage Range: 12.8 – 14.0V
Charging Stages: Check, Bulk, Absorption, Float, Recharge
Recharge Timer: 7 days (automatic)
Power Sharing: Adjustable when heavy AC load is connected
Transfer Switch: 30A relay, <30ms transfer time
AC Input Voltage Range: 108 – 132V AC
AC Input/Output Port: Hardwire (30A heavy-duty connector)
Display: LCD with backlighting – Voltage, Power, DC Current, Battery & AC status, Warnings/Faults
Communication: CAN Bus, optional Bluetooth
USB Port: For firmware/software updates
Dimensions (L×W×H): 19.7" × 12.1" × 4.2" (500 × 307 × 106 mm)
Weight: 22.9 lbs (10.4 kg)
Certifications: cETLus listed – UL & CSA compliant; FCC Part 15 Class B EMI/EMC
🇨🇦 CSA Approved – Fully certified for Canadian off-grid and residential use
🚚 Ships from Canada – No cross-border delays
🌞 Designed for off-grid solar systems, RVs, boats, trailers, and hybrid backup power
🛠️ Trusted by Canadian installers and system designers
⚡ The Kisae BIC1230100 Bi-Directional Inverter-Charger is the ultimate solution for Canadians seeking 3000W of reliable, CSA-approved pure sine wave power with a 100A charger. Available now at Solar Super Store Canada.
